Visibility I: Z-buffer algorithm

CS 248 - Introduction to Computer Graphics
Autumn Quarter, 2000
Marc Levoy
Lecture notes for Thursday, November 16

Table of contents:

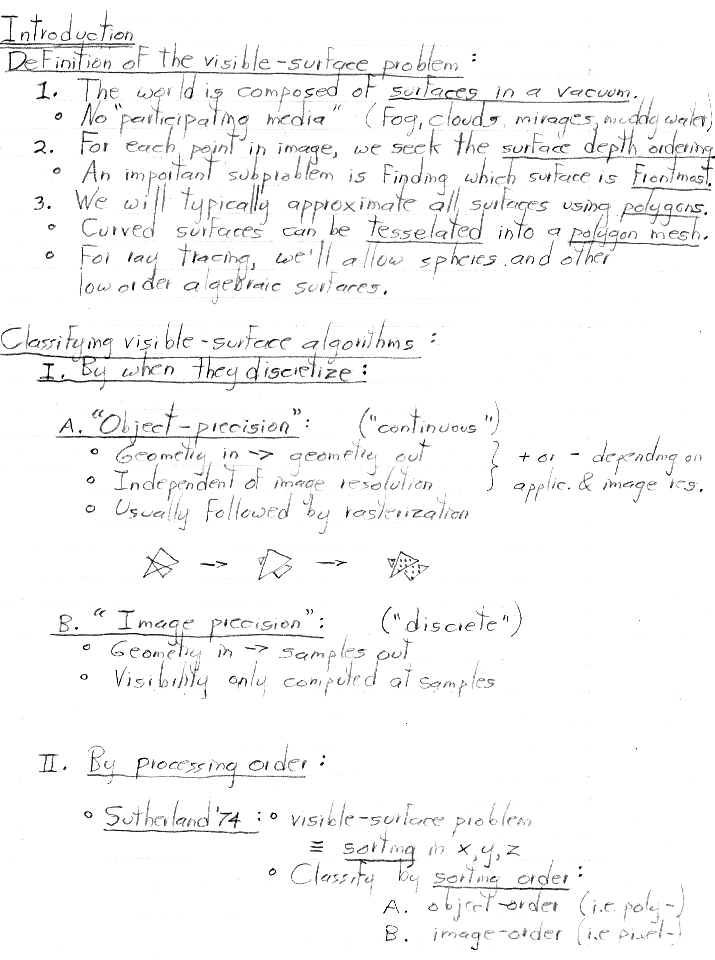

• Introduction
  • Definition of the visible-surface problem
  • Classifying visible-surface algorithms

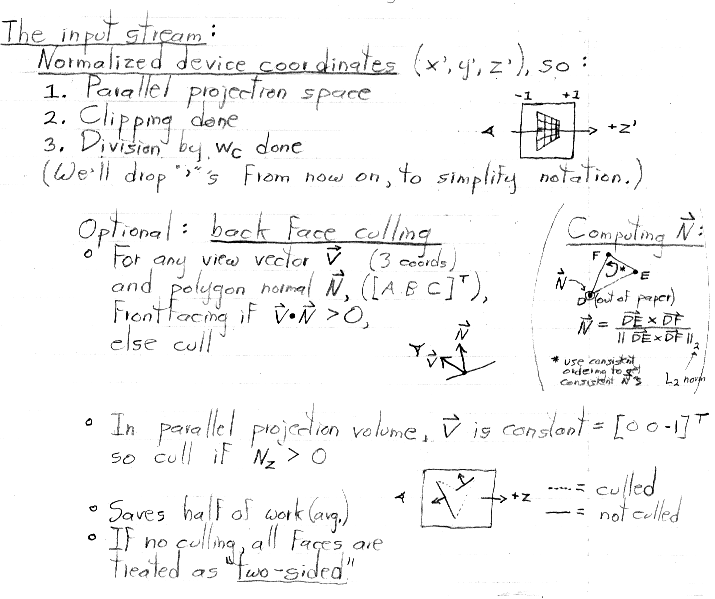

  • The input stream

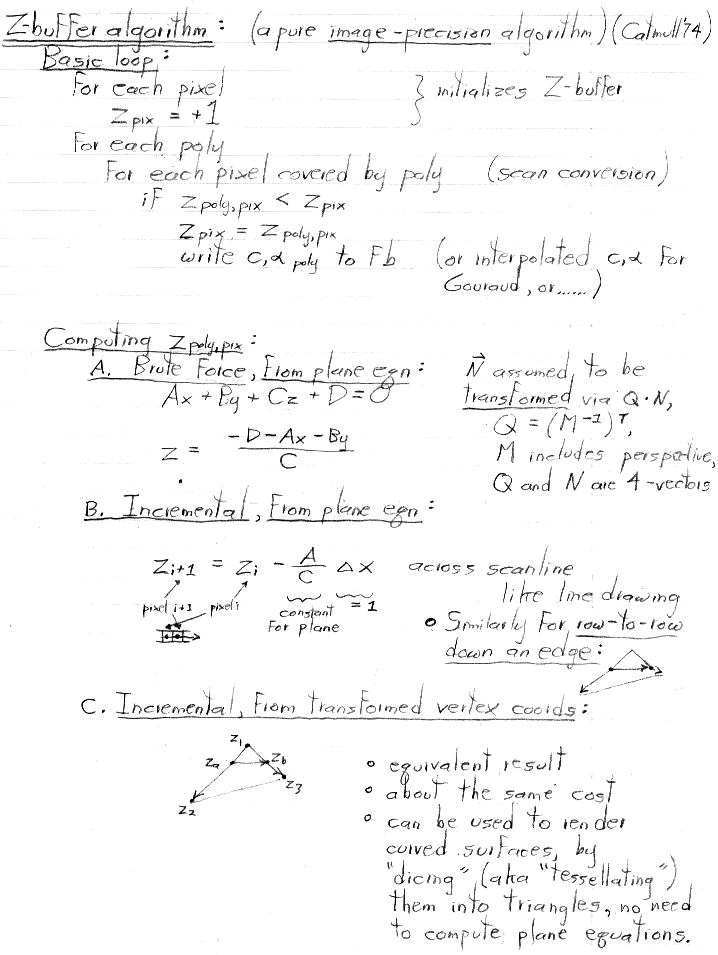

• Zbuffer algorithm
  • Basic loop
  • Computing Z

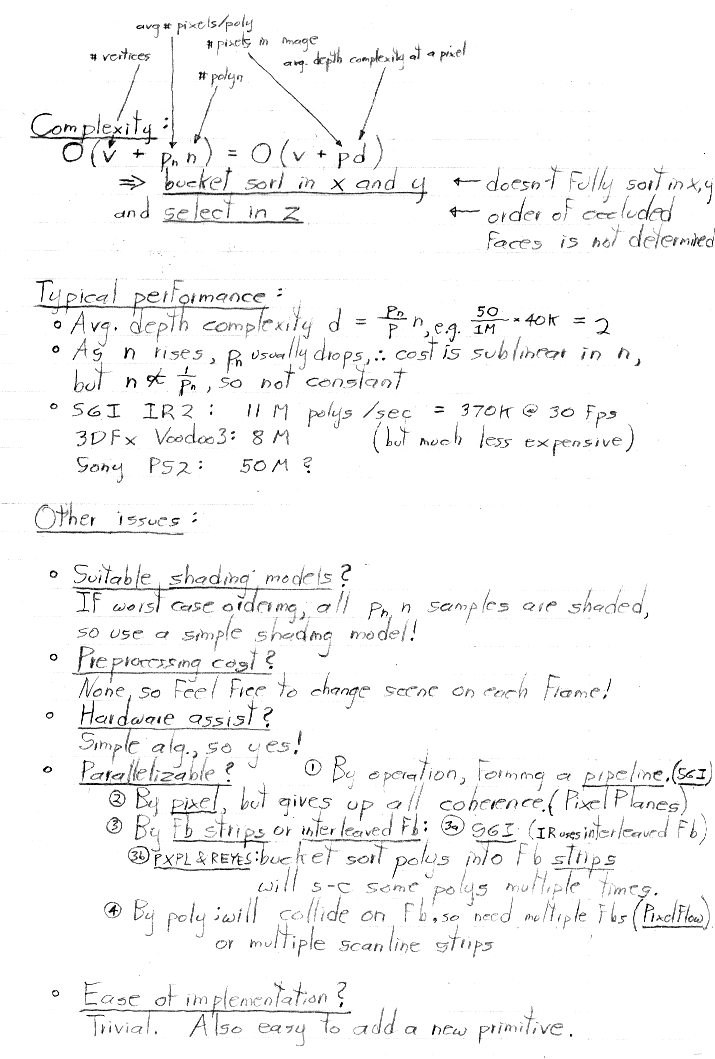

  • Complexity
  • Typical performance

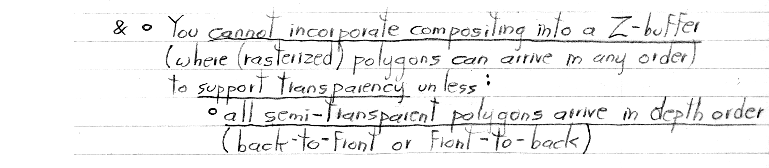

  • Other issues
  • Artifacts

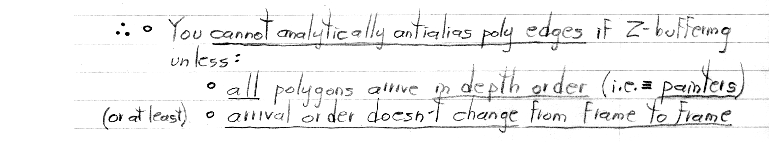

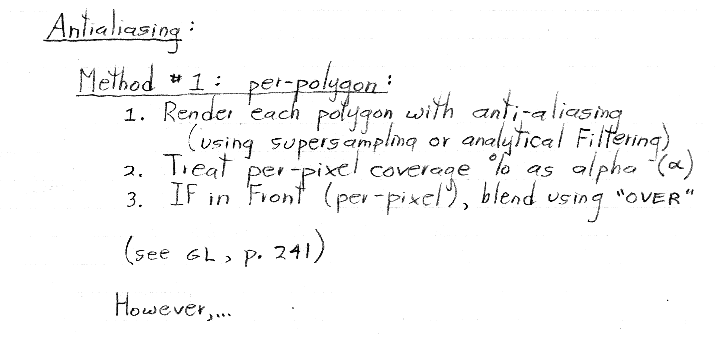

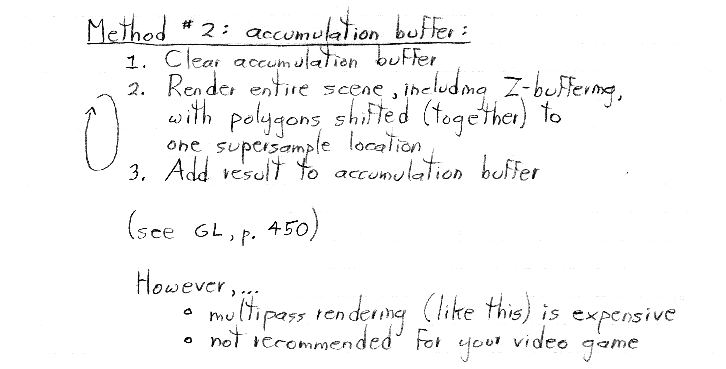

  • Antialiasing
