Visibility III: ray tracing

CS 248 - Introduction to Computer Graphics
Autumn Quarter, 2002
Marc Levoy
Lecture notes for Thursday, November 21

Table of contents:

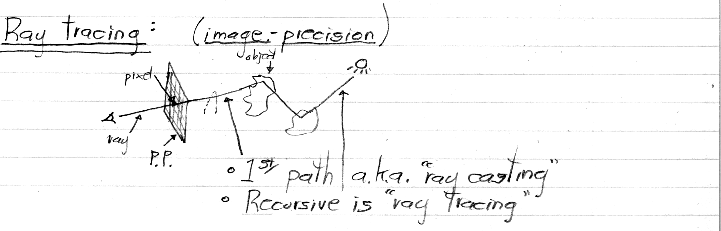

• Ray tracing

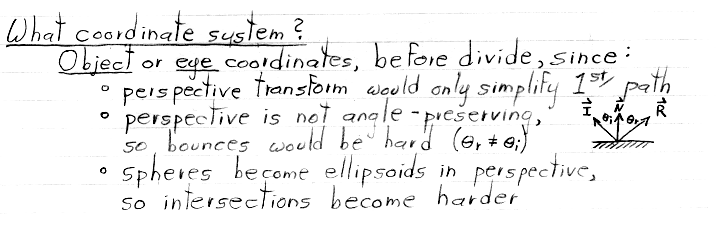

  • What coordinate system?

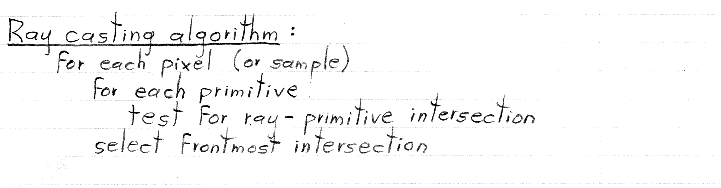

  • Ray casting algorithm

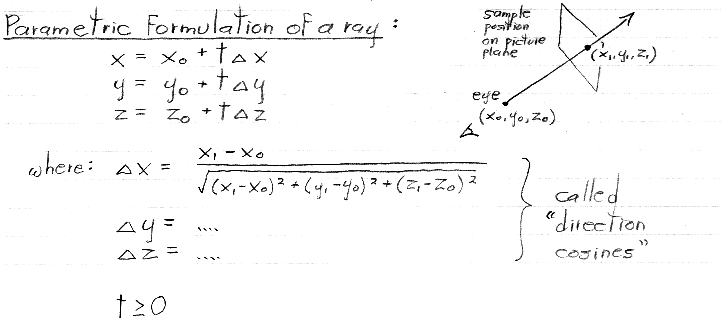

  • Parametric formulation of a ray
  • Ray-sphere intersection

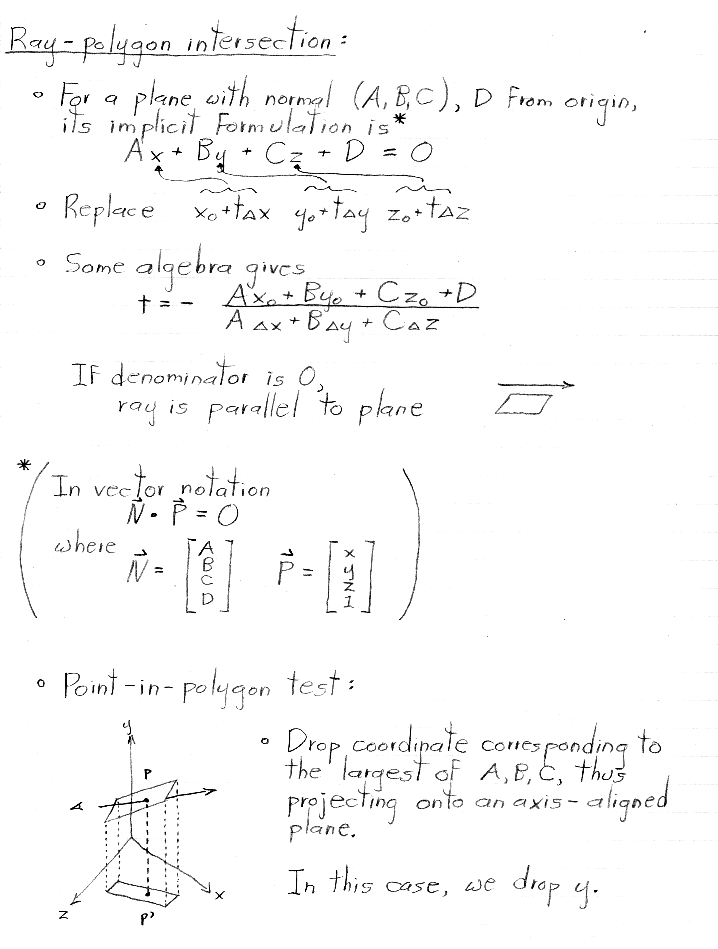

  • Ray-polygon intersection

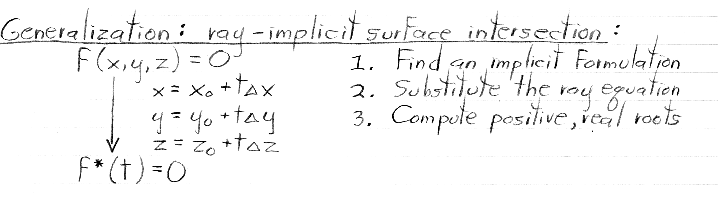

  • Generalization: ray-implicit surface intersection

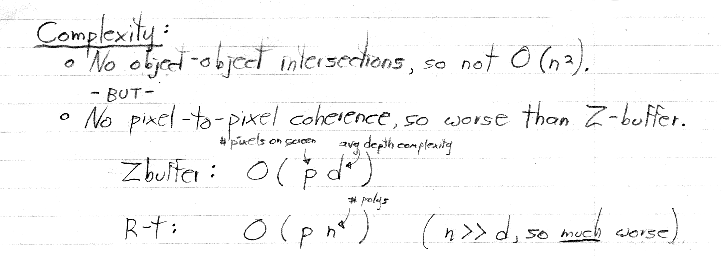

  • Complexity
  • Typical performance

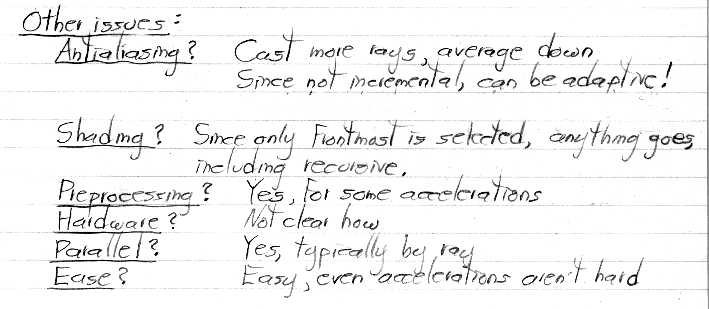

  • Other issues
