Antialiasing strategies

CS 248 - Introduction to Computer Graphics
Autumn Quarter, 2002
Marc Levoy
Lecture notes for Tuesday, October 15

Table of contents:

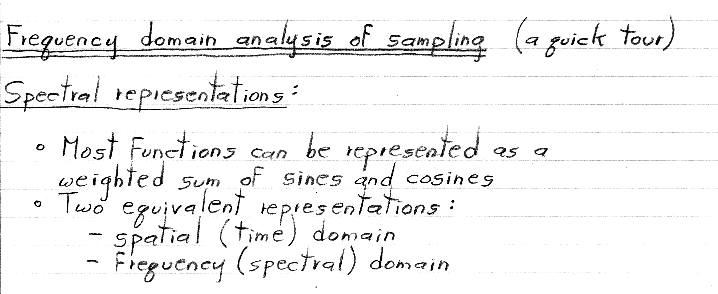

• Frequency domain analysis of sampling (a quick tour)
  • Spectral representations

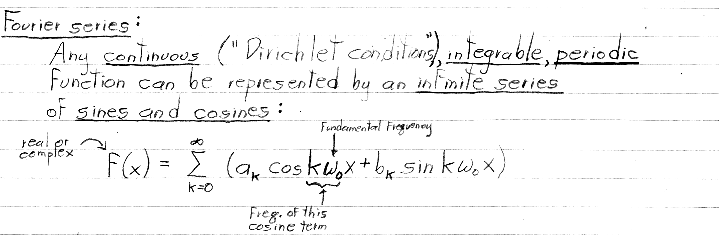

  • Fourier series: periodic functions

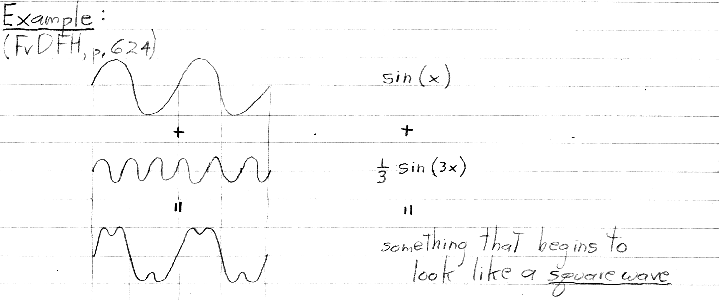

  • Example: sum of sines

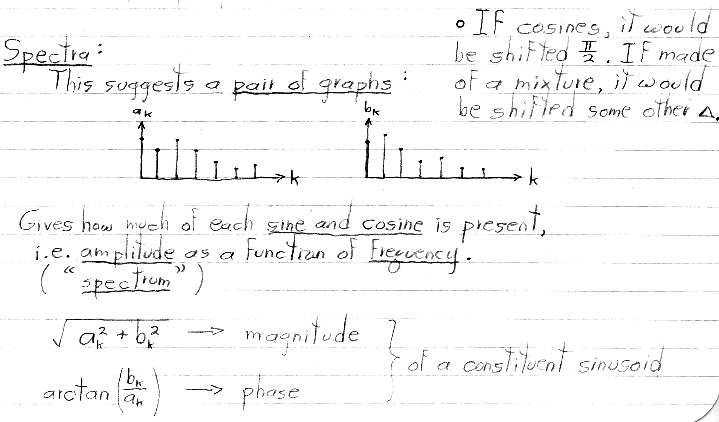

  • Spectra: a pair of graphs

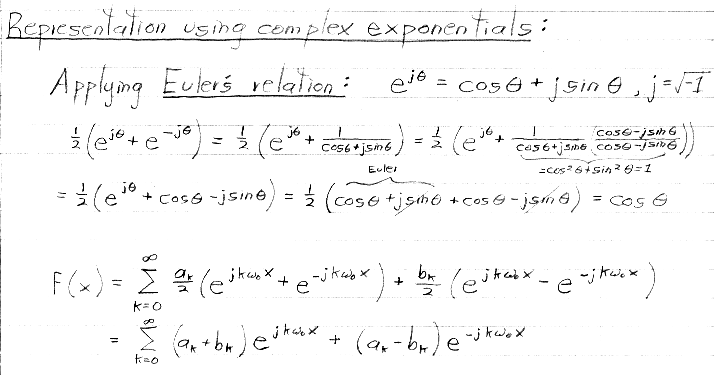

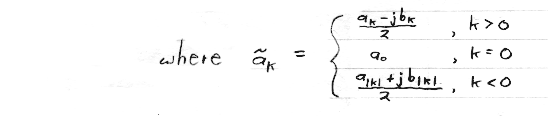

  • Representation using complex exponentials

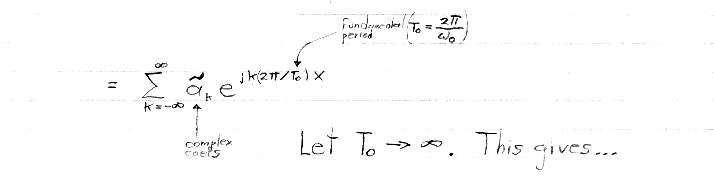

  • Fourier integral: aperiodic functions

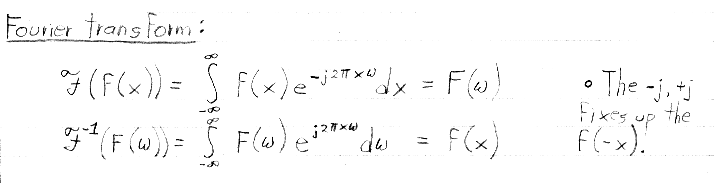

  • Fourier transform

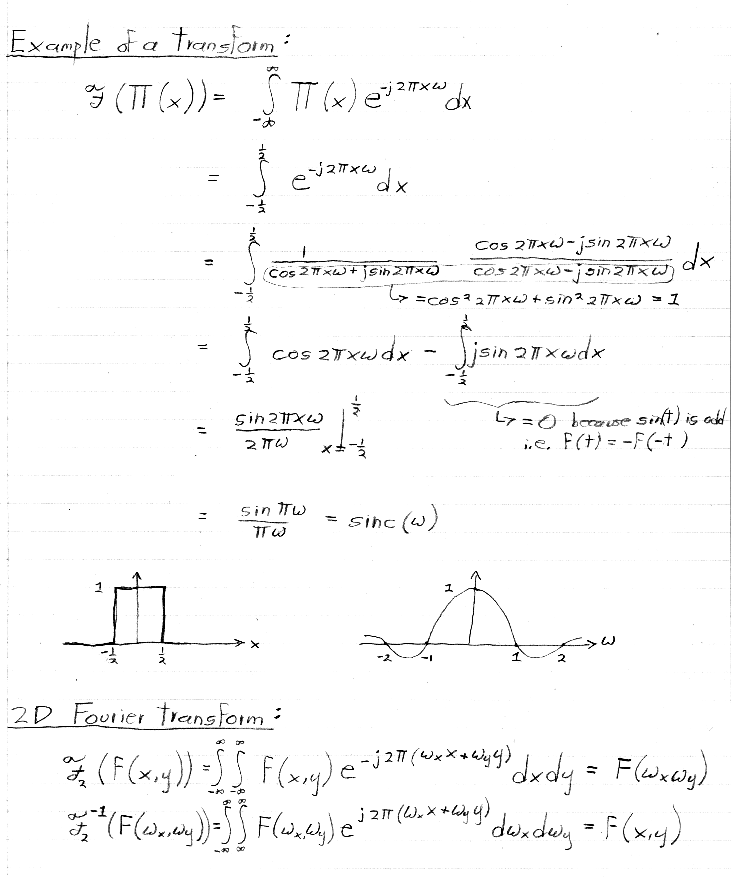

  • Example of a transform: box and sinc

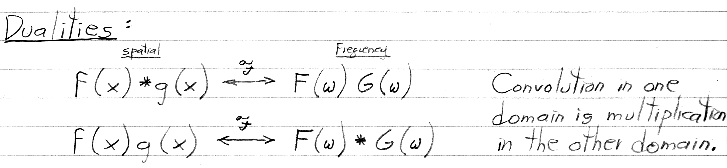

  • Dualities

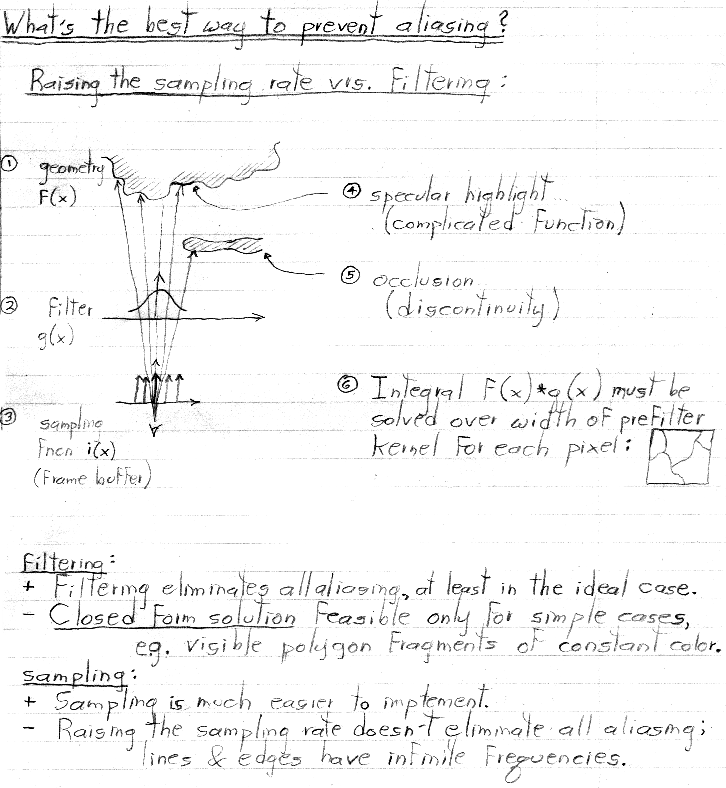

• What's the best way to prevent aliasing?
  • Raising the sampling rate versus filtering

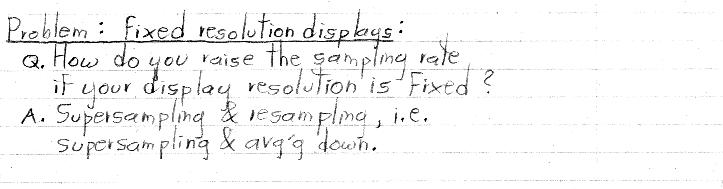

  • Problem: fixed resolution displays

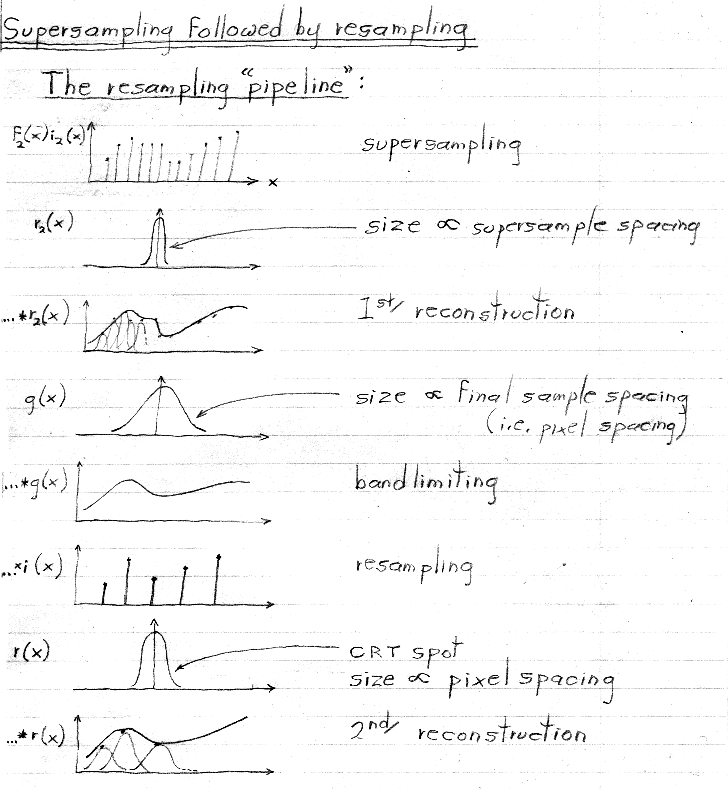

• Supersampling followed by resampling
  • The resampling pipeline

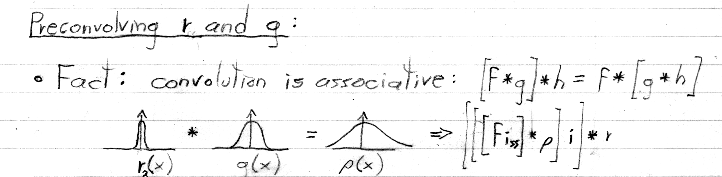

  • Preconvolving r and g

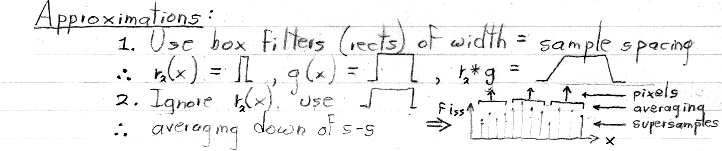

  • Approximations

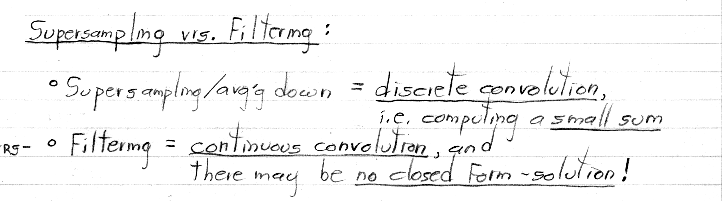

  • Supersampling versus filtering

I didn't have time in class to show you what supersamping and averaging down looks like in the frequency domain. If you're interested, look at this handout from CS 348B.
