Visibility I: Z-buffer algorithm

CS 248 - Introduction to Computer Graphics
Autumn Quarter, 2003
Marc Levoy
Lecture notes for Tuesday, November 11 (finished on November 13)

Table of contents:

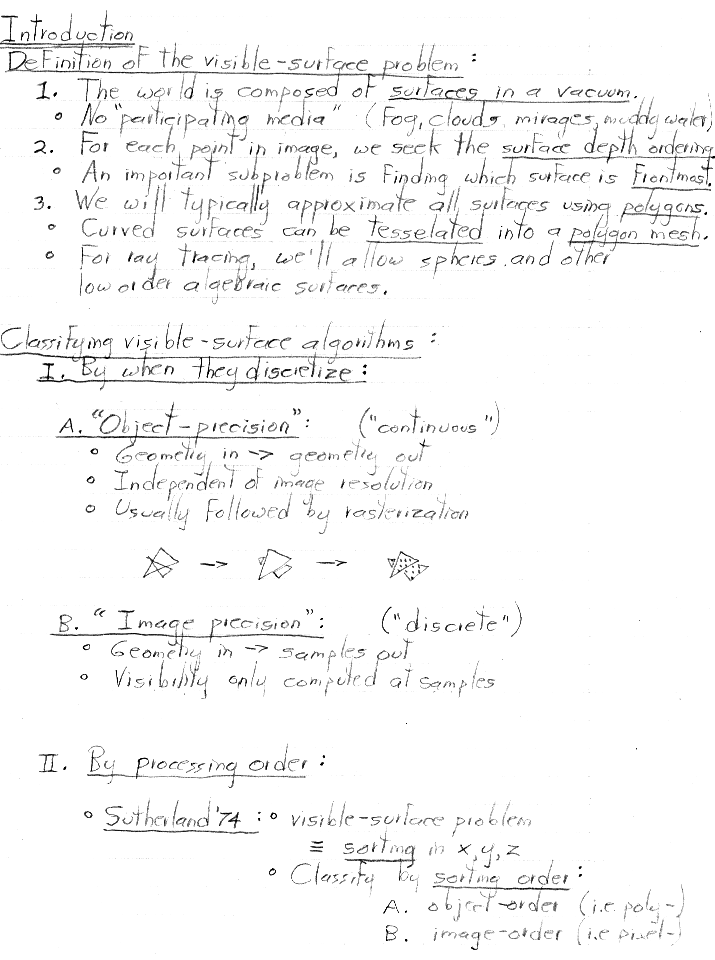

• Introduction
  • Definition of the visible-surface problem
  • Classifying visible-surface algorithms

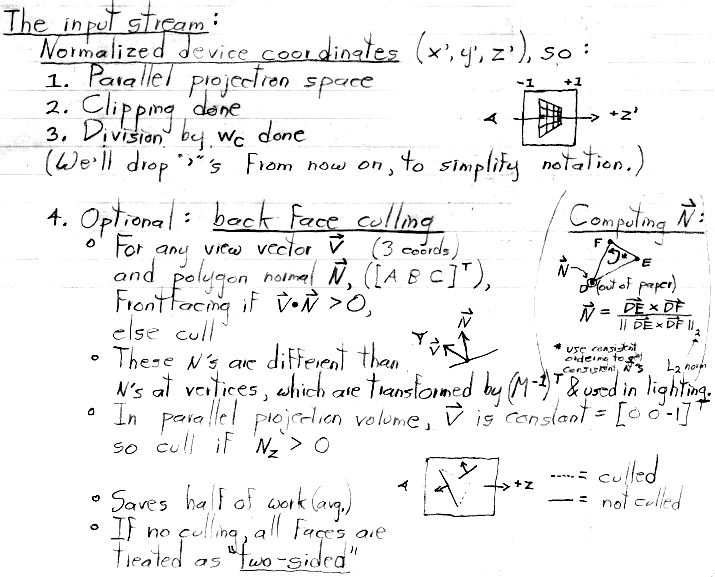

  • The input stream

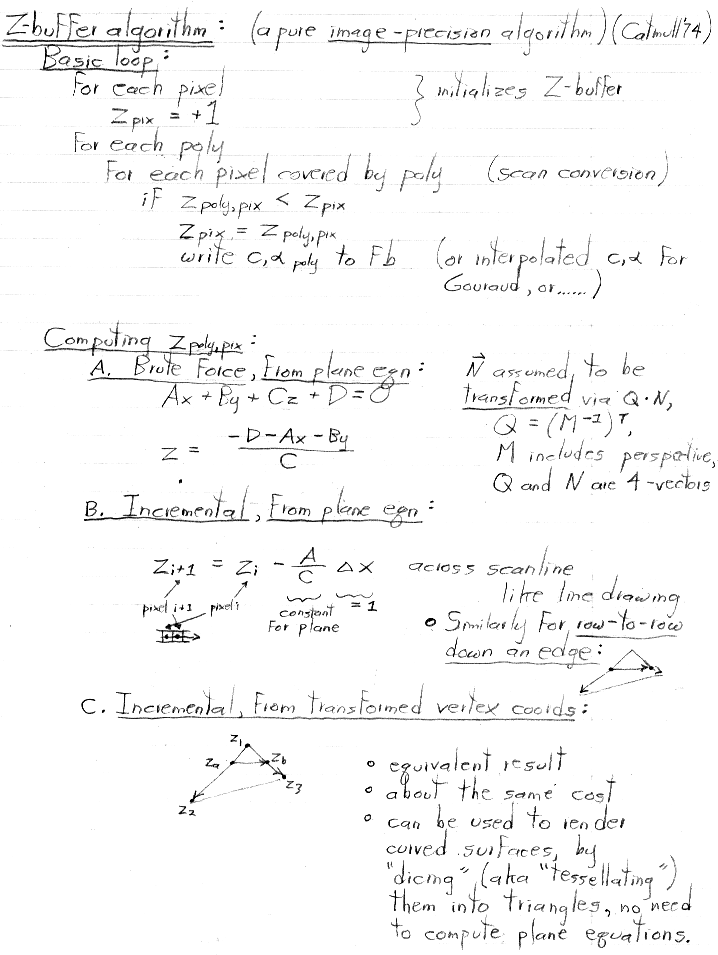

• Zbuffer algorithm
  • Basic loop
  • Computing Z
  • Linear or rational linear interpolation?

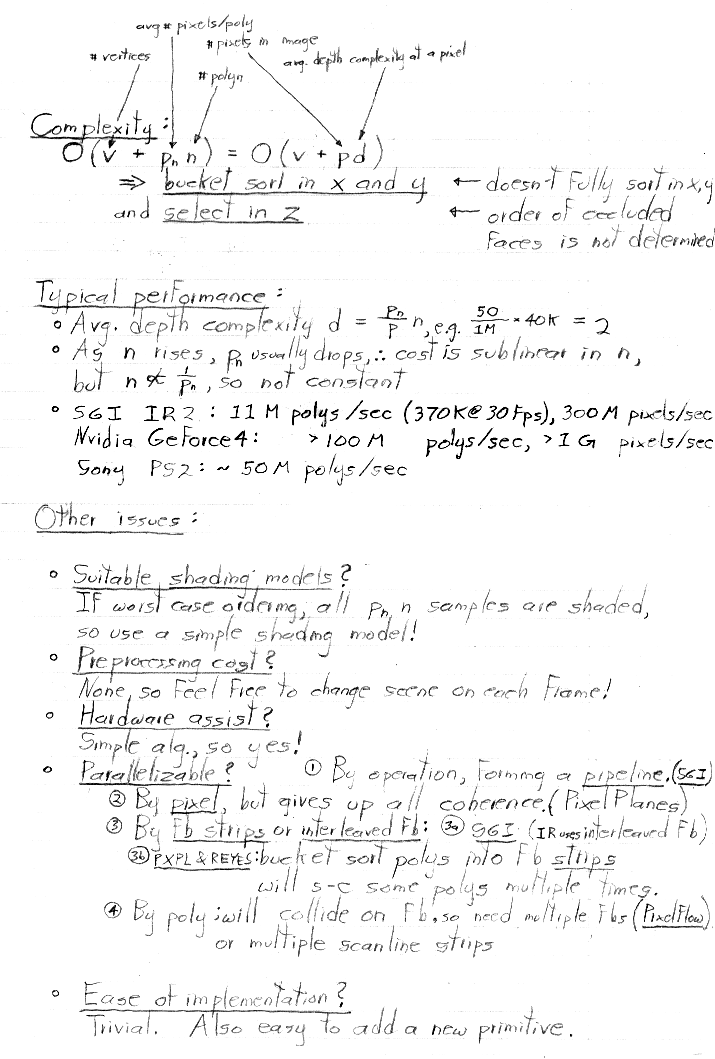

  • Complexity
  • Typical performance
  • Other issues

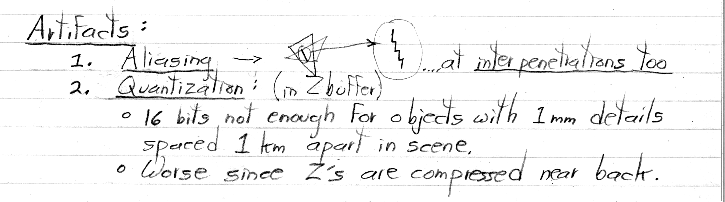

  • Artifacts

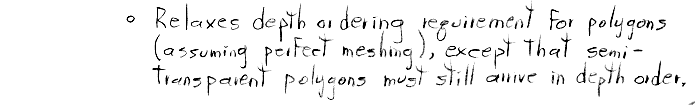

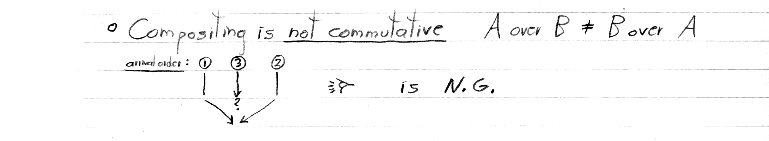

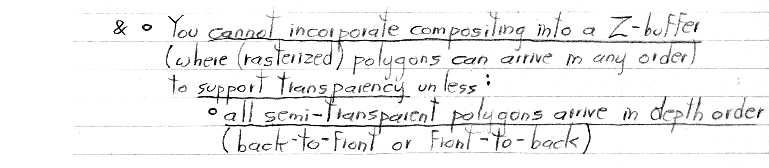

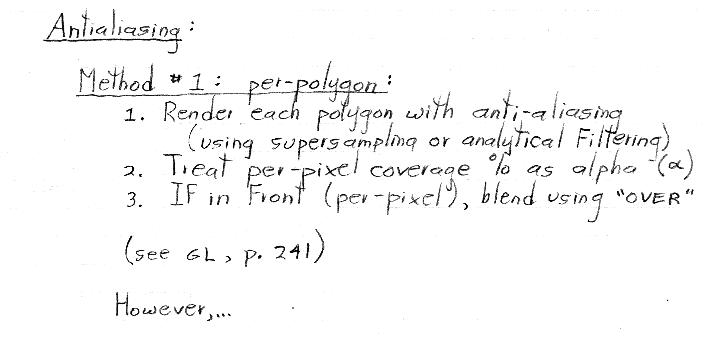

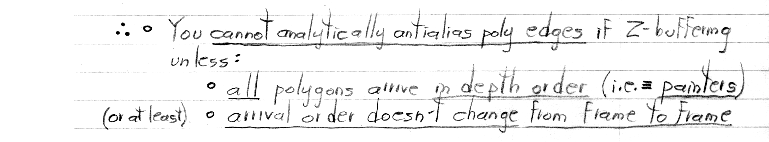

  • Antialiasing
