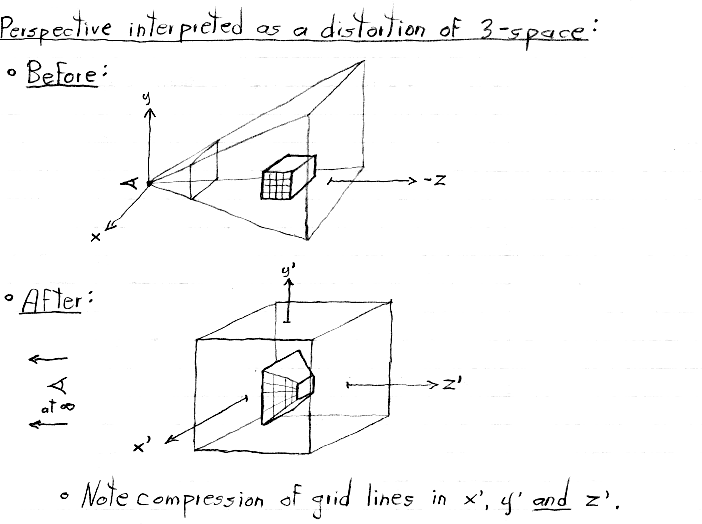

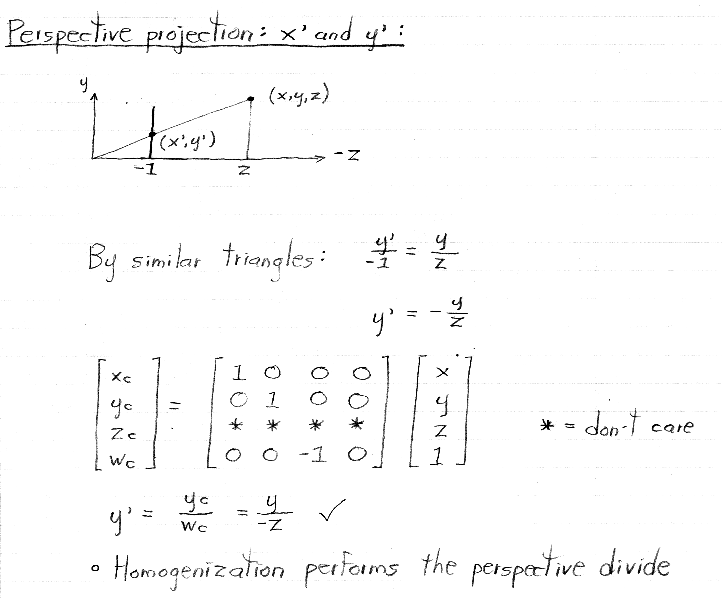

Viewing II: the mathematics of perspective

CS 248 - Introduction to Computer Graphics
Autumn Quarter, 2003
Marc Levoy
Lecture notes for Thursday, November 6 (finished on Nov. 11)

Table of contents:

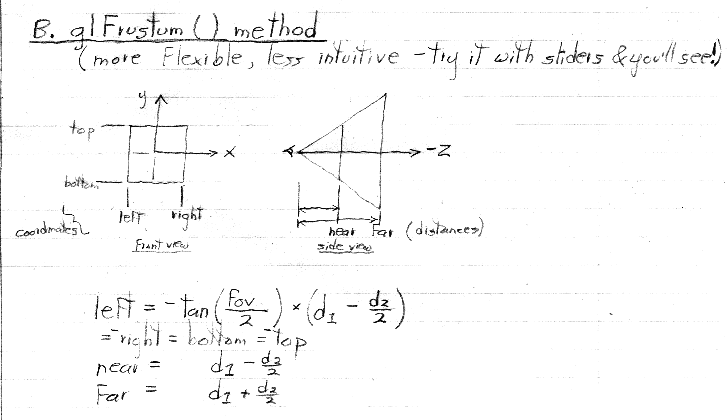

If you want to play with the program I used in class to demonstrate changing the field of view (zooming) versus changing the distance to the scene (dollying), then log on to a firebird or raptor and type:

/usr/class/cs248/support/bin/i386-linux/frustum.linux /usr/class/cs248/data/Inventor/spheres.iv

Copyright © 2003 Marc Levoy
Last update: November 6, 2003 09:48:03 PM
