Antialiasing strategies

CS 248 - Introduction to Computer Graphics
Autumn Quarter, 2004
Marc Levoy
Lecture notes for Tuesday, October 12
Notes for the frequency domain analysis of sampling were added to the October 7 lecture.

Table of contents:

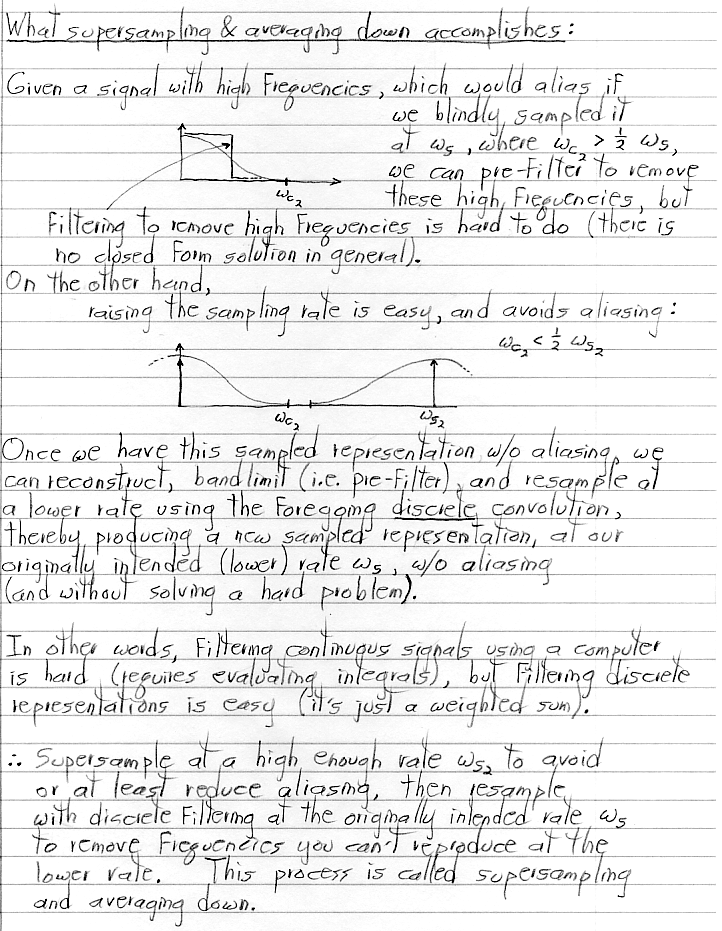

I don't have time in this course to show you what supersamping and averaging down looks like in the frequency domain. If you're interested, look at this handout from CS 348B.

Press here for an

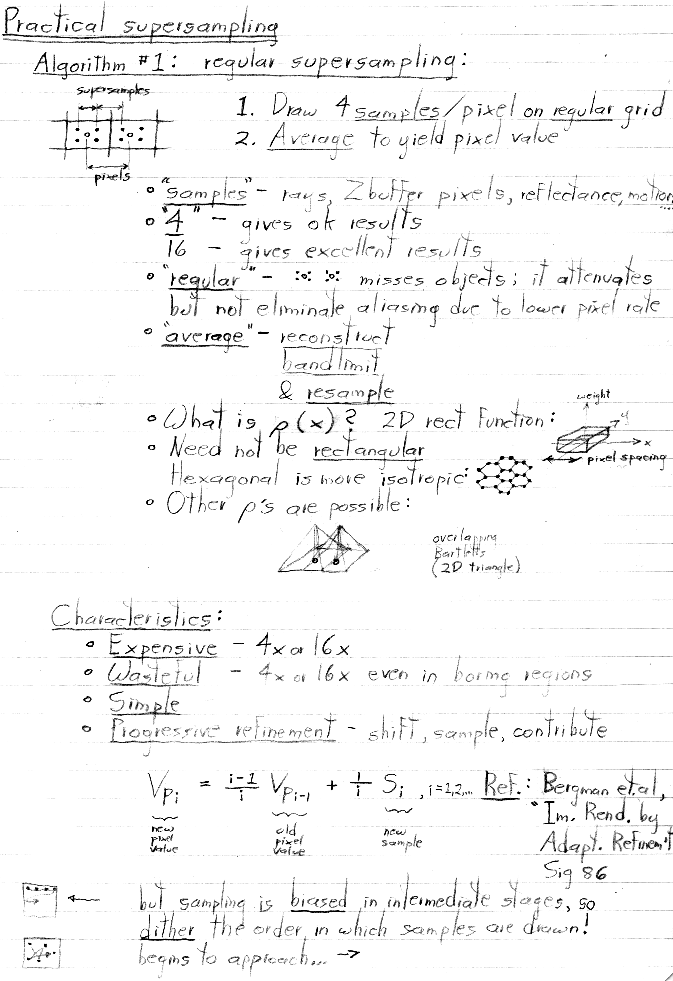

image demonstrating supersampling patterns, and here for an explanation.
