Viewing I: the wonders of perspective

Viewing I: the wonders of perspective

CS 248 - Introduction to Computer Graphics
Autumn Quarter, 2006
Marc Levoy
Lecture notes for Tuesday, October 31

Table of contents:

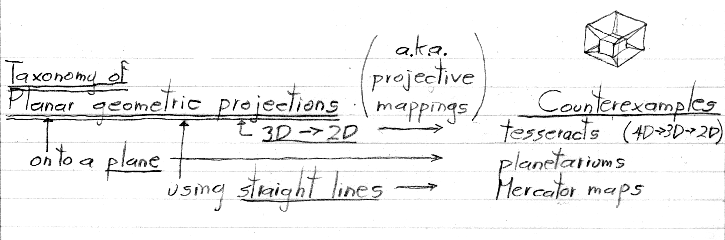

Taxonomy of planar geometric projections
- The invention of perspective (separate web page)

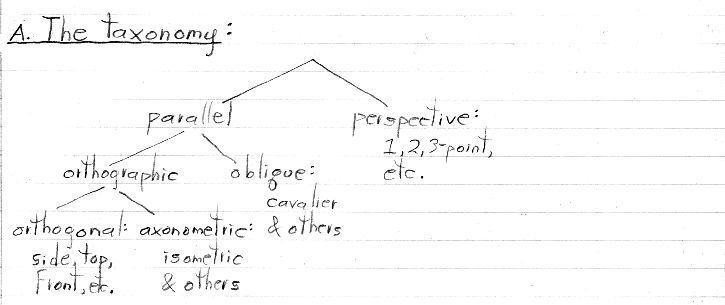

- The taxonomy

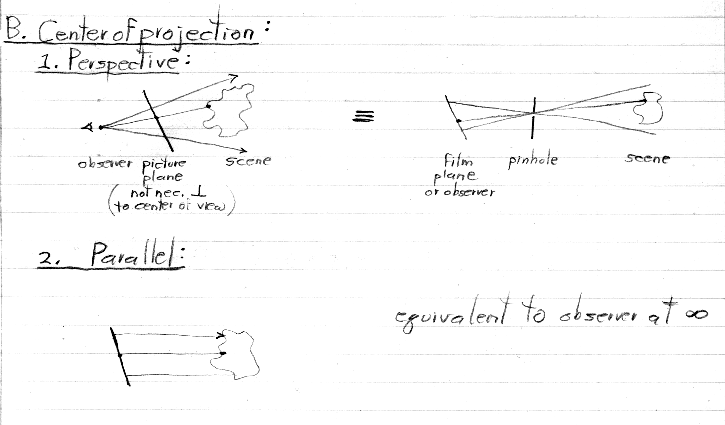

- Center of projection

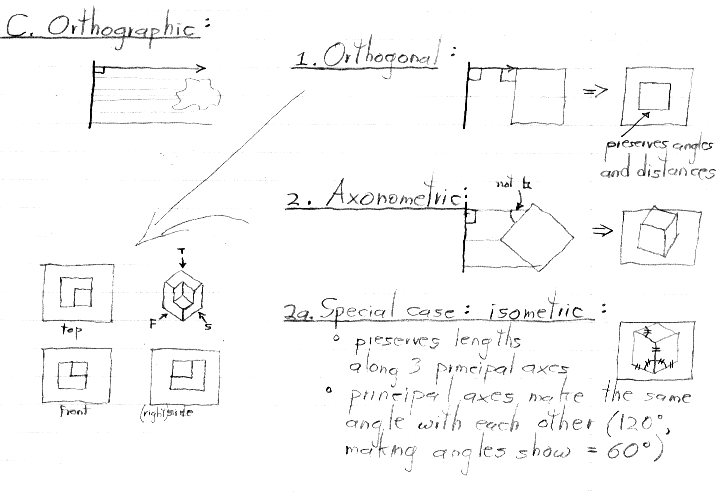

- Orthographic views

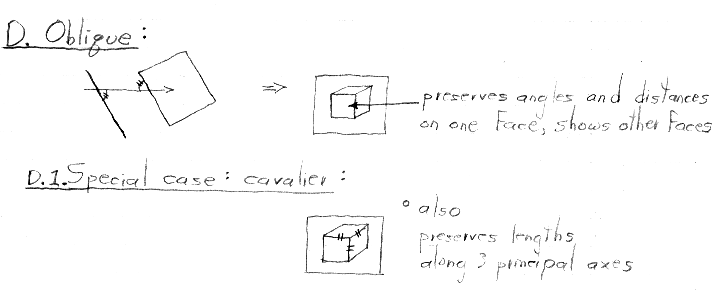

- Oblique views

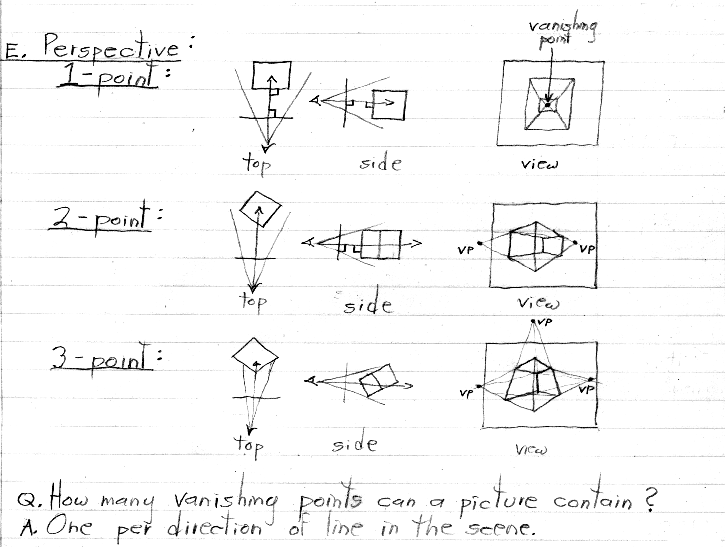

- Perspective views

I am not holding you responsible for those nodes of the taxonomy below orthographic or oblique.

Press here for the problems on the use of perspective in art that I posed at the end of class today.

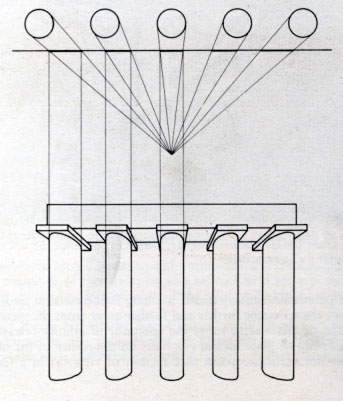

Click here for the distorted perspective that accompanies the third problem. (From Dubery and Willets, Perpective and other drawing systems.)
