A bit more on color

CS 248 - Introduction to Computer Graphics
Autumn Quarter, 2008
Marc Levoy
Lecture notes for Thursday, October 2 (first half of class)

Table of contents:

• The rgb and xyz chromaticity diagrams

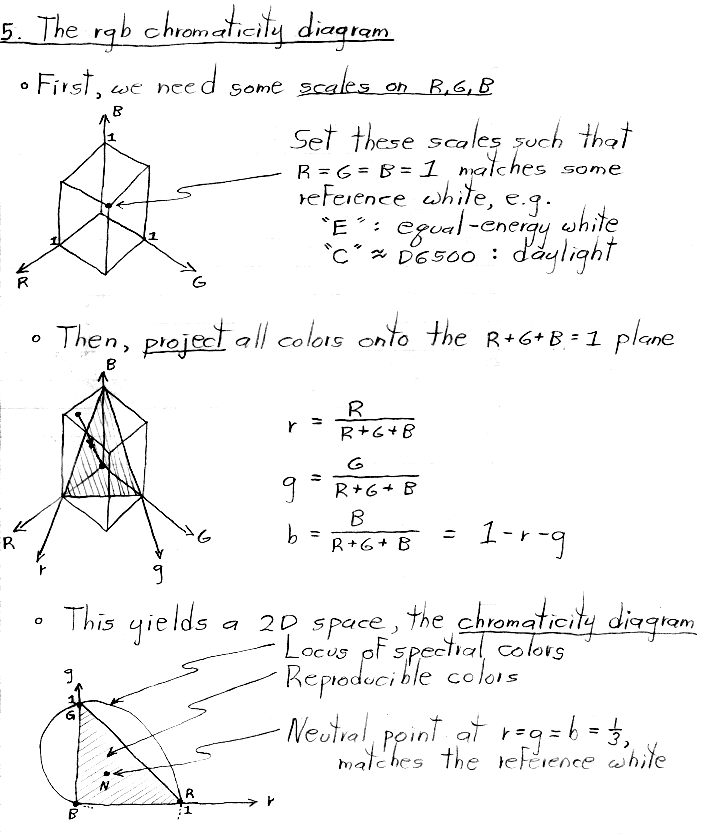

  5. The rgb chromaticity diagram

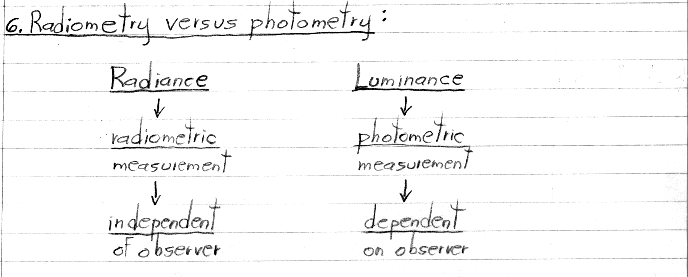

  6. Radiometry versus photometry

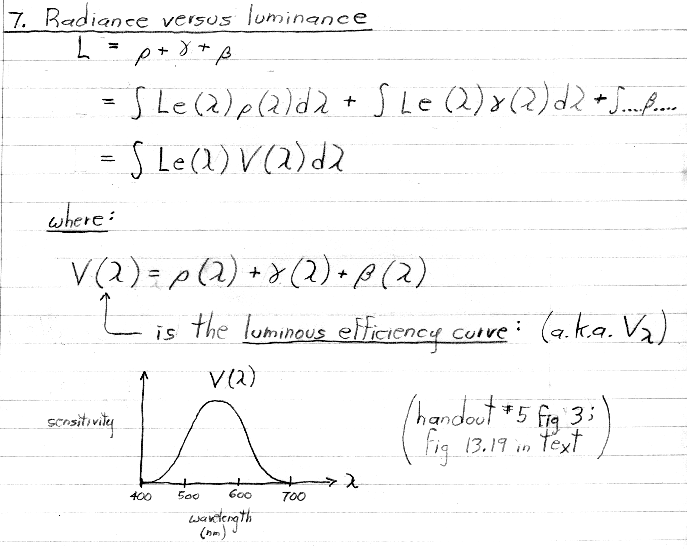

  7. Radiance versus luminance

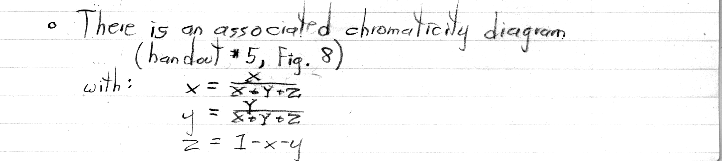

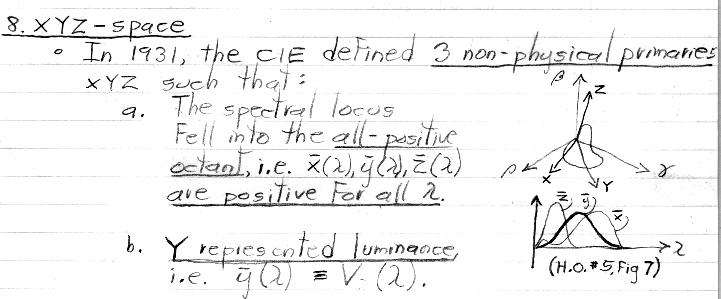

  8. XYZ-space and the xyz chromaticity diagram
• A real application

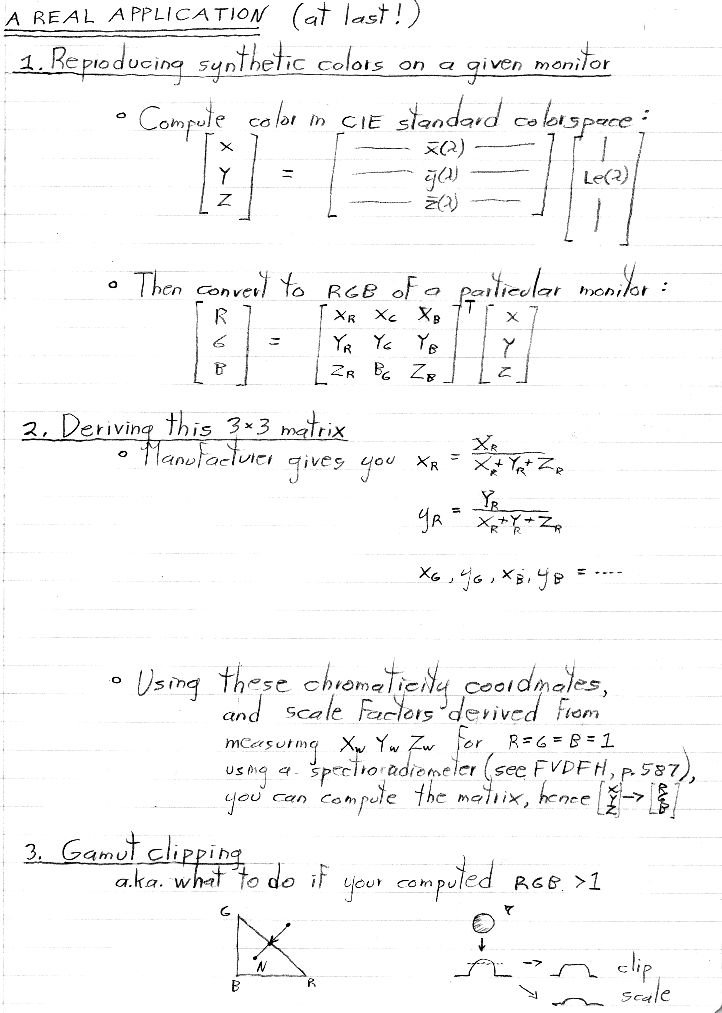

  1. Reproducing synthetic colors on a given monitor
  2. Deriving this 3x3 matrix
  3. Gamut clipping

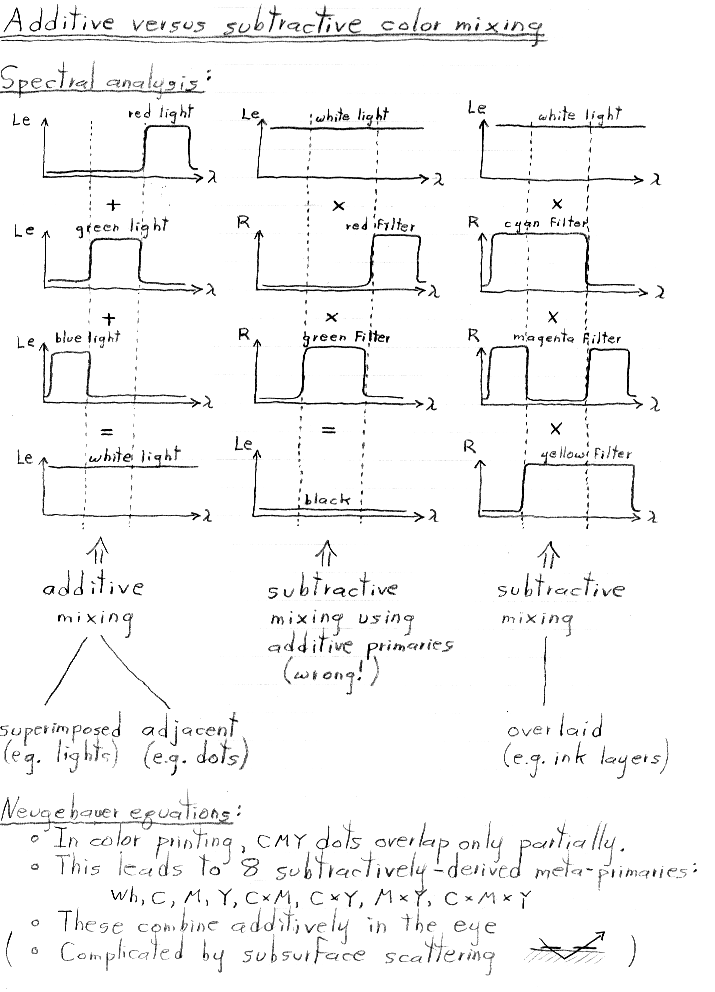

• Additive versus subtractive color mixing
  • Spectral analysis
  • General rules
