Visibility I: Z-buffer algorithm

CS 248 - Introduction to Computer Graphics
Autumn Quarter, 2008
Marc Levoy
Lecture notes for Tuesday, November 4 (finished on November 6)

Table of contents:

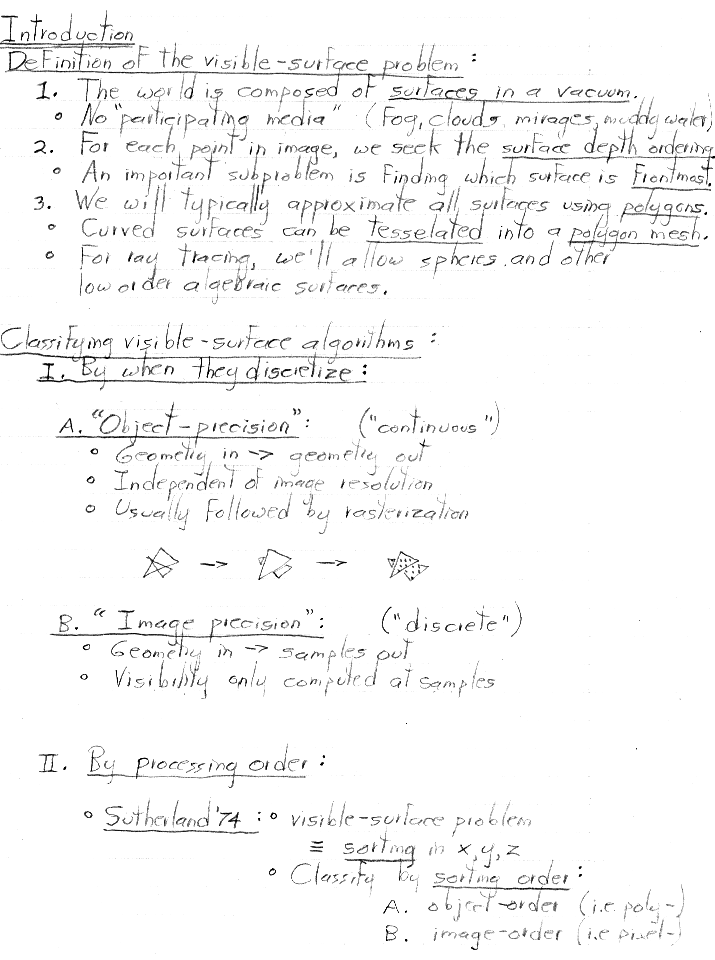

• Introduction
  • Definition of the visible-surface problem
  • Classifying visible-surface algorithms

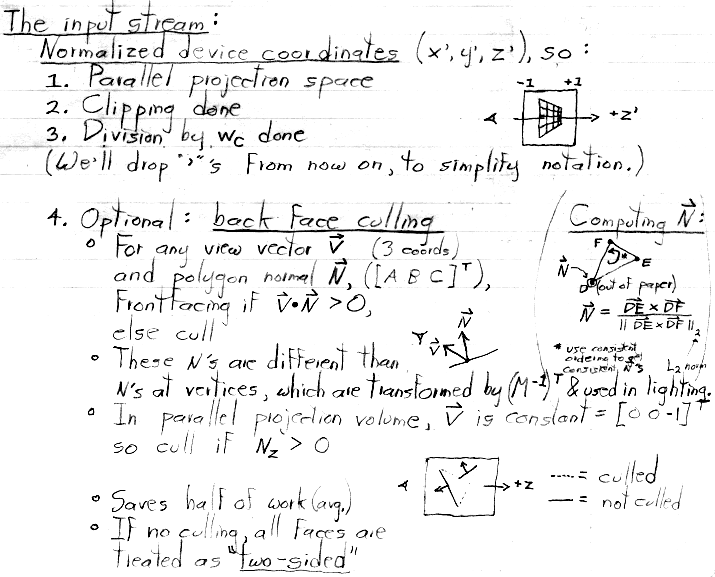

  • The input stream

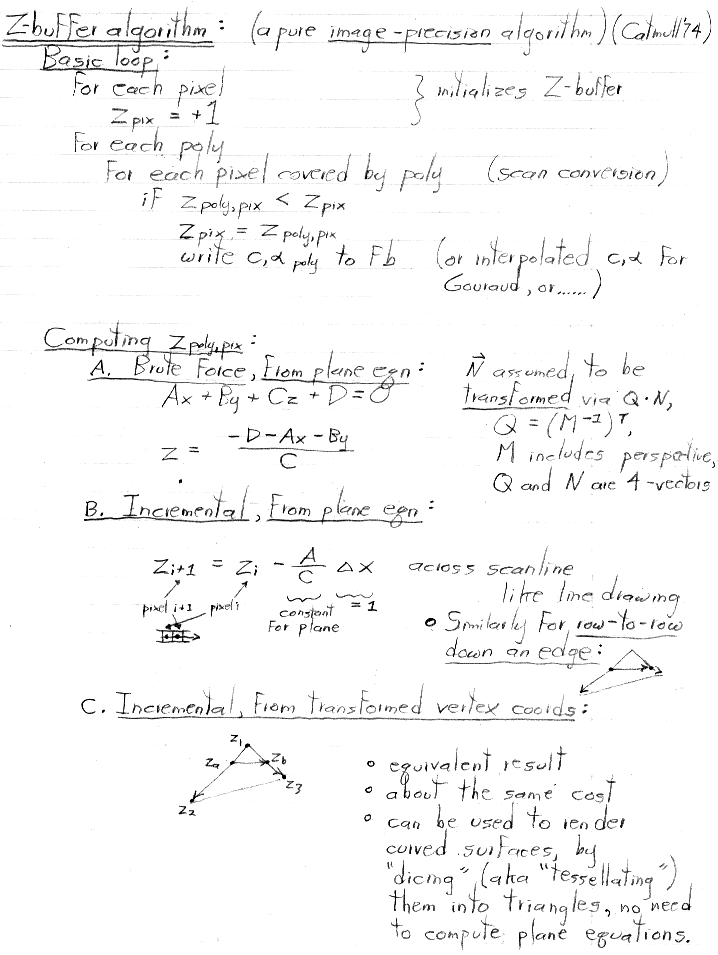

• Zbuffer algorithm
  • Basic loop
  • Computing Z

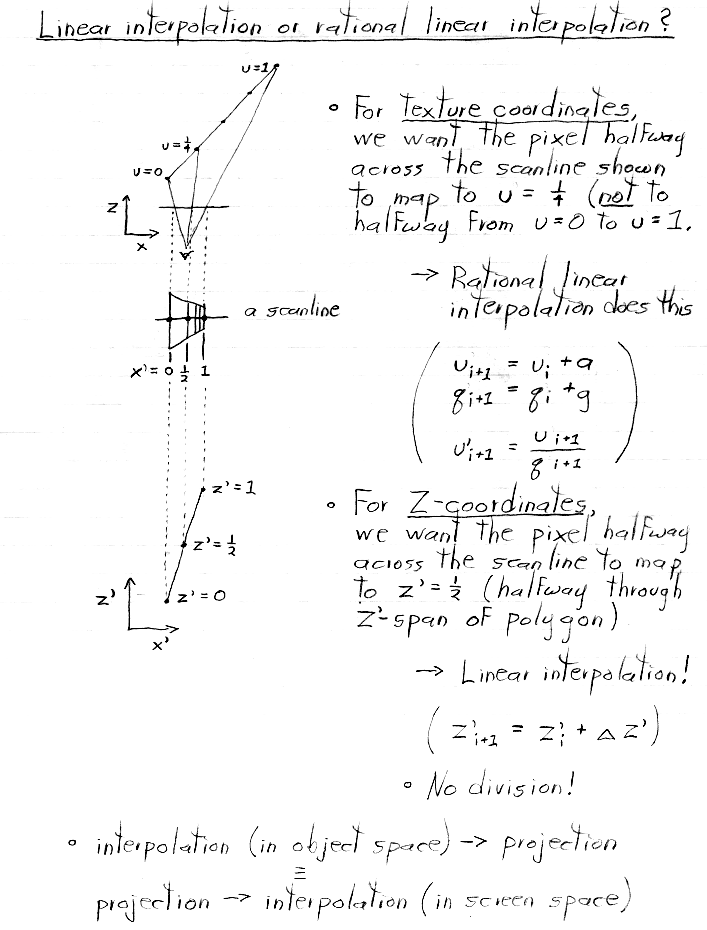

  • Linear or rational linear interpolation?

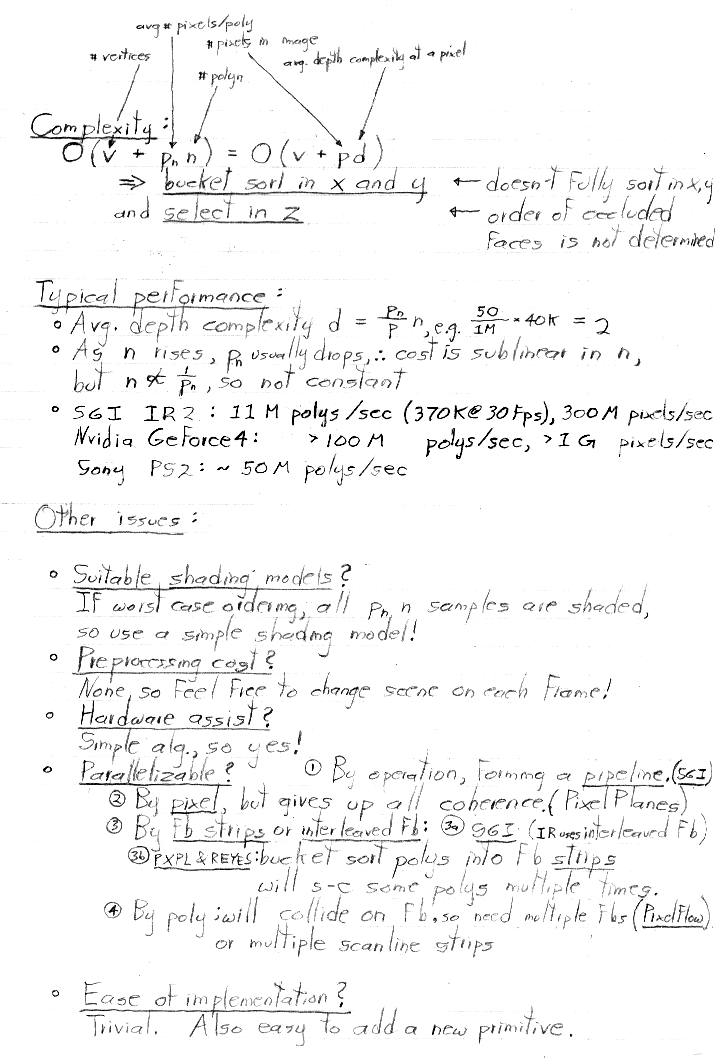

  • Complexity
  • Typical performance
  • Other issues

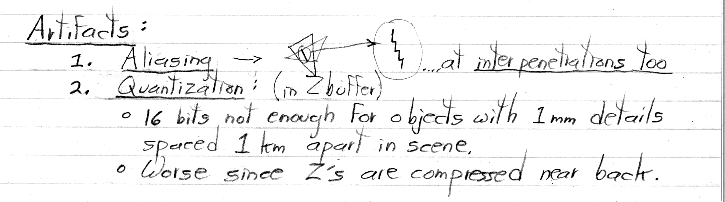

  • Artifacts

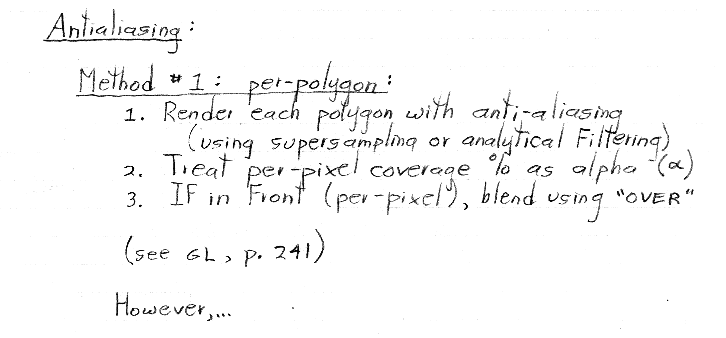

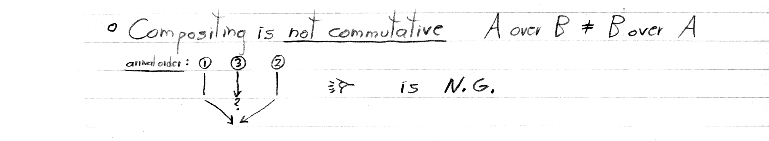

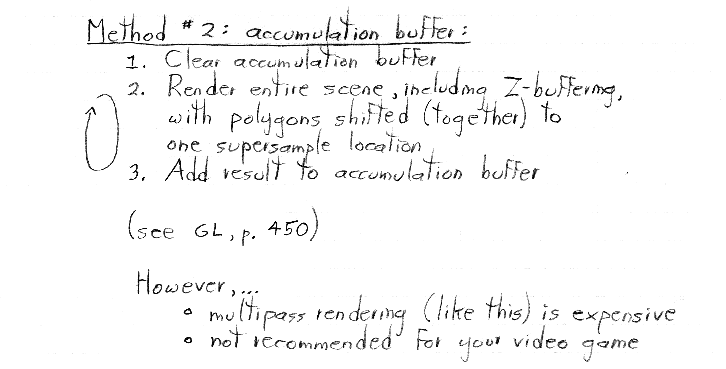

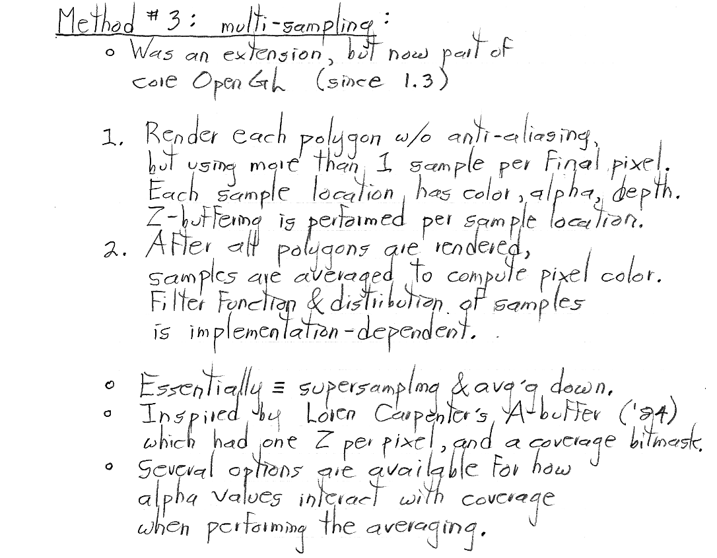

  • Antialiasing
