Lighting I: illumination, diffuse reflection

CS 248 - Introduction to Computer Graphics
Autumn Quarter, 2008
Marc Levoy
Lecture notes for Tuesday, November 18

Table of contents:

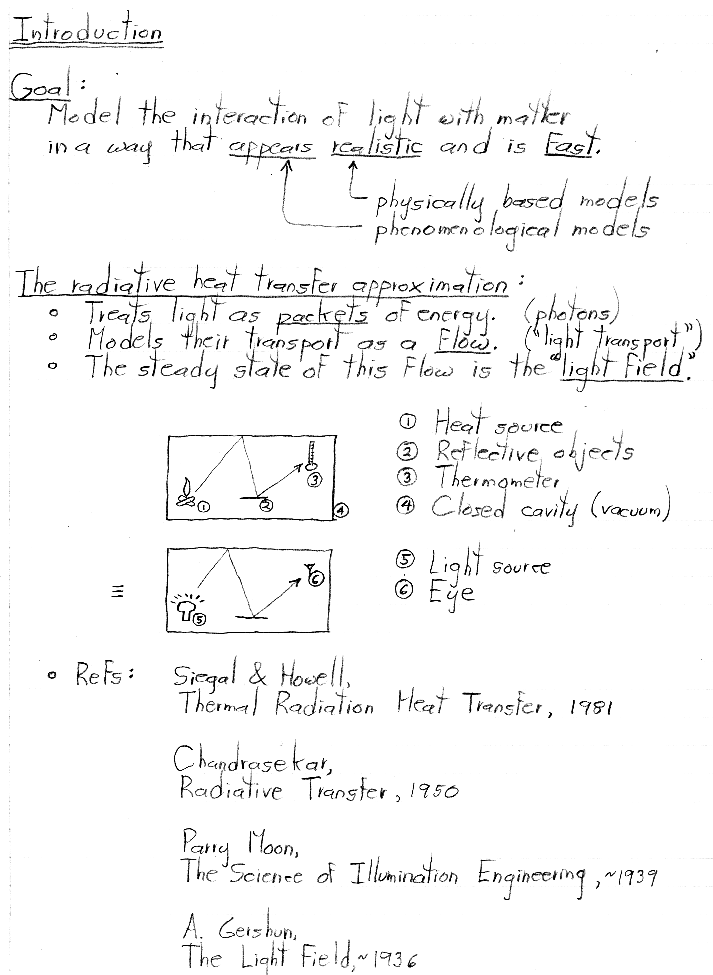

• Introduction
  • Goal of reflection models
  • The radiative heat transfer (a.k.a. light transport) approximation

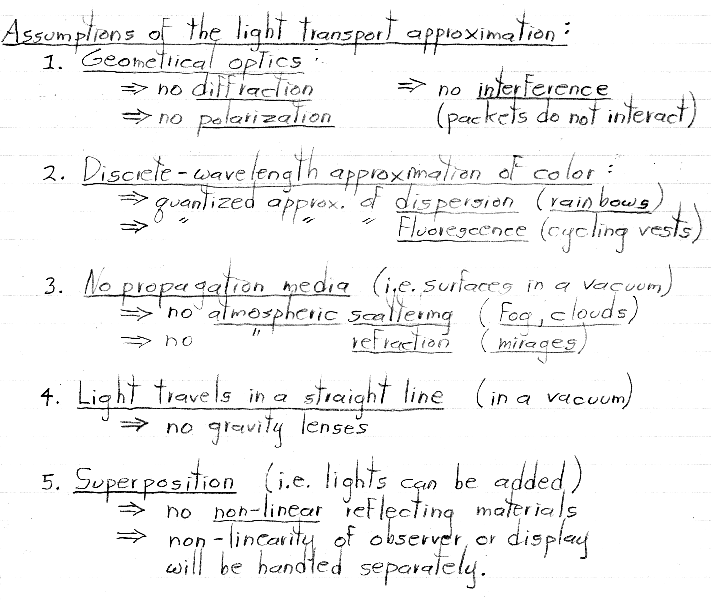

  • Assumptions of the light transport approximation

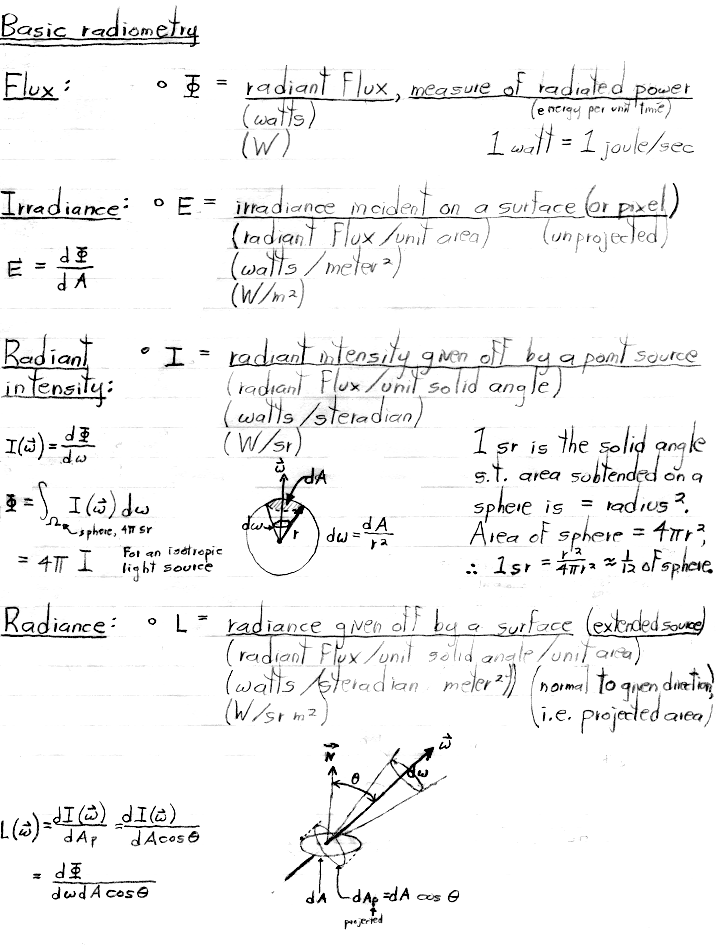

• Basic radiometry
  • Flux
  • Irradiance
  • Radiant intensity
  • Radiance

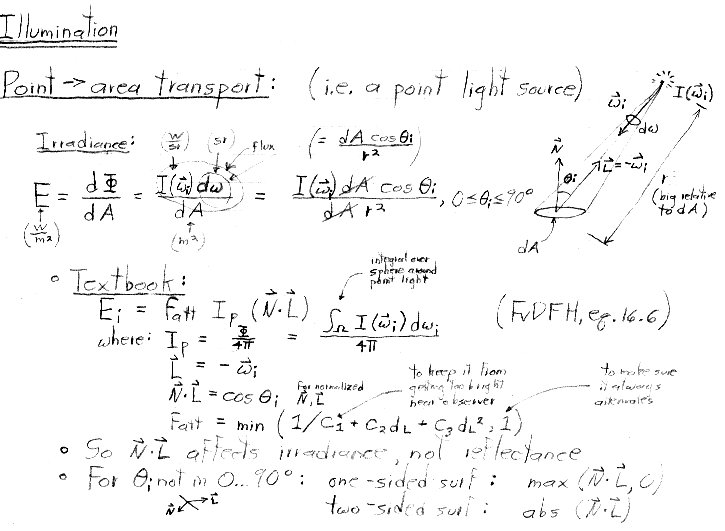

• Illumination
  • Point -> area transport (point light sources)
• Reflection

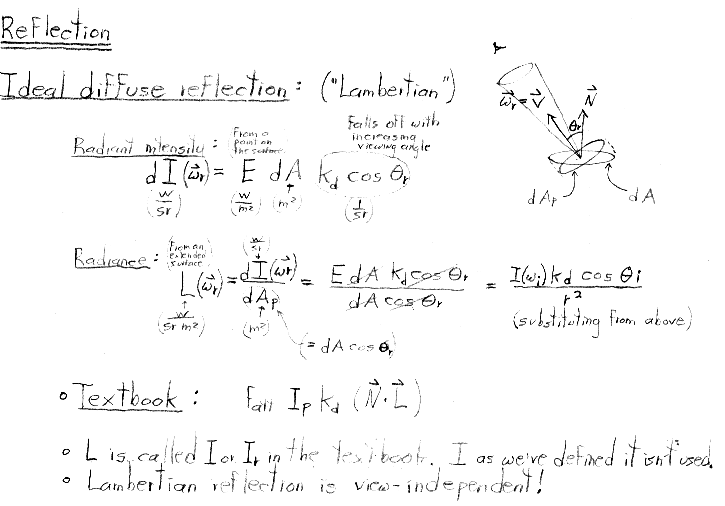

  • Ideal diffuse reflection

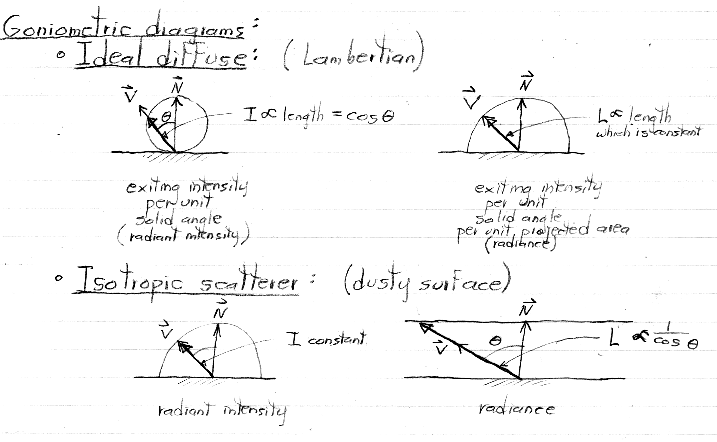

  • Goniometric diagrams

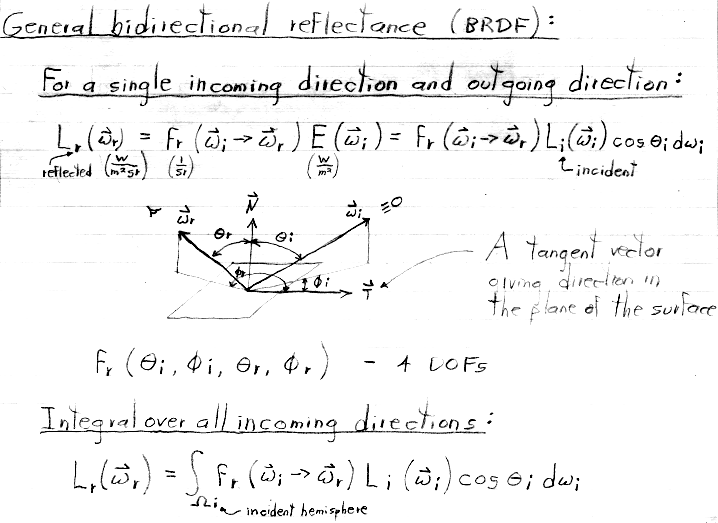

  • General bidirectional reflectance

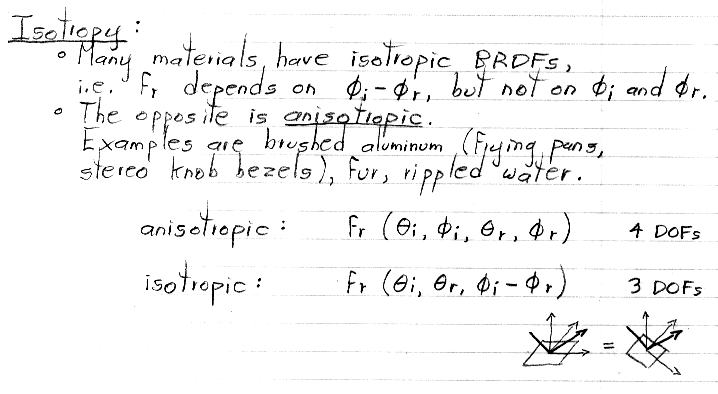

  • Isotropy
