Visible-surface determination (part I), Z-buffer

CS 248 - Introduction to Computer Graphics
Spring Quarter, 1995
Marc Levoy
Lecture notes for Tuesday, May 23

Table of contents:

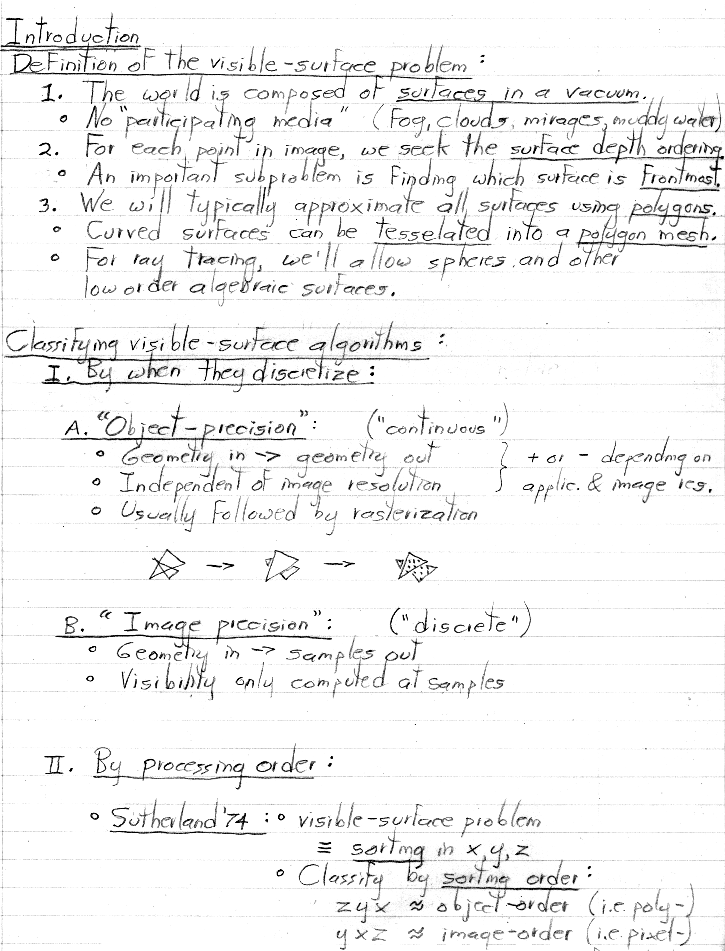

• Introduction
  • Definition of the visible-surface problem
  • Classifying visible-surface algorithms

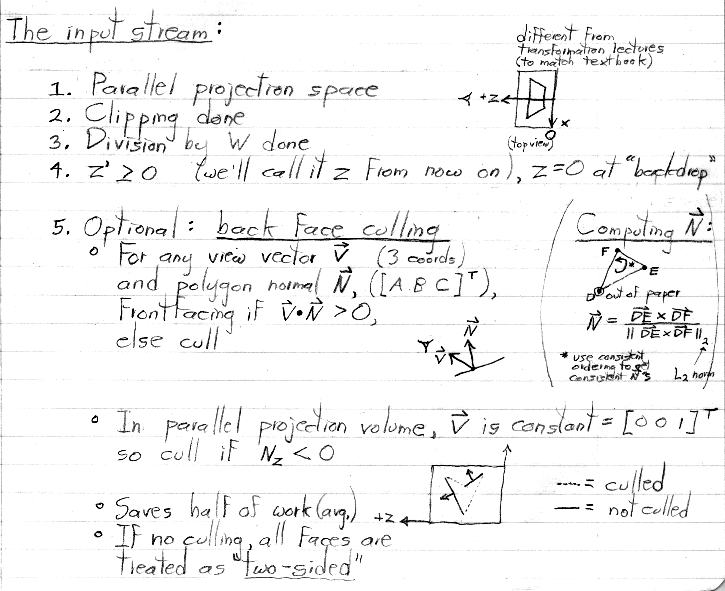

  • The input stream

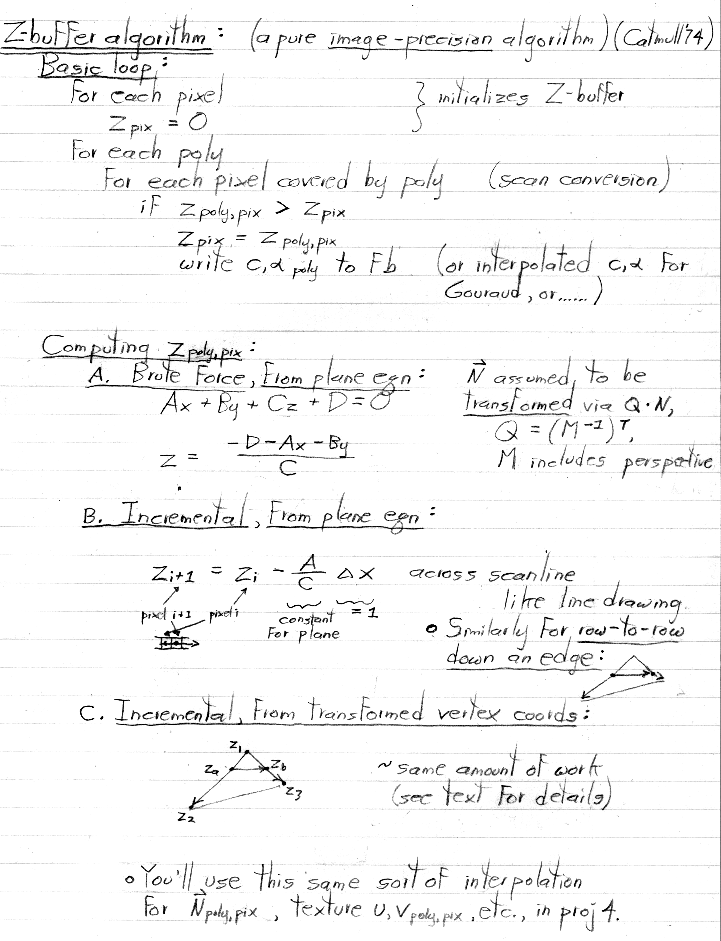

• Zbuffer algorithm
  • Basic loop
  • Computing Z
  • Complexity
  • Typical performance

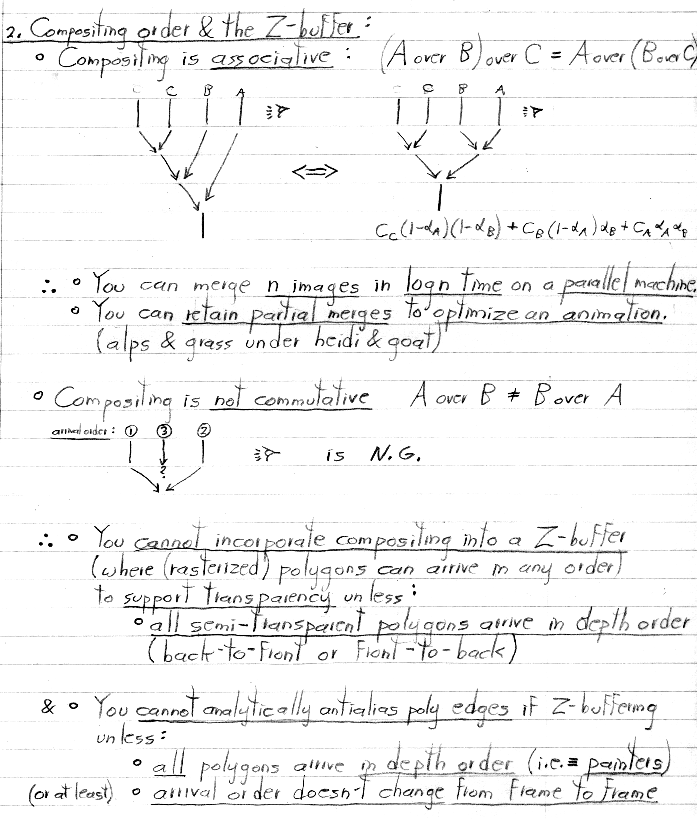

  • Other issues
  • Artifacts
  • Extensions

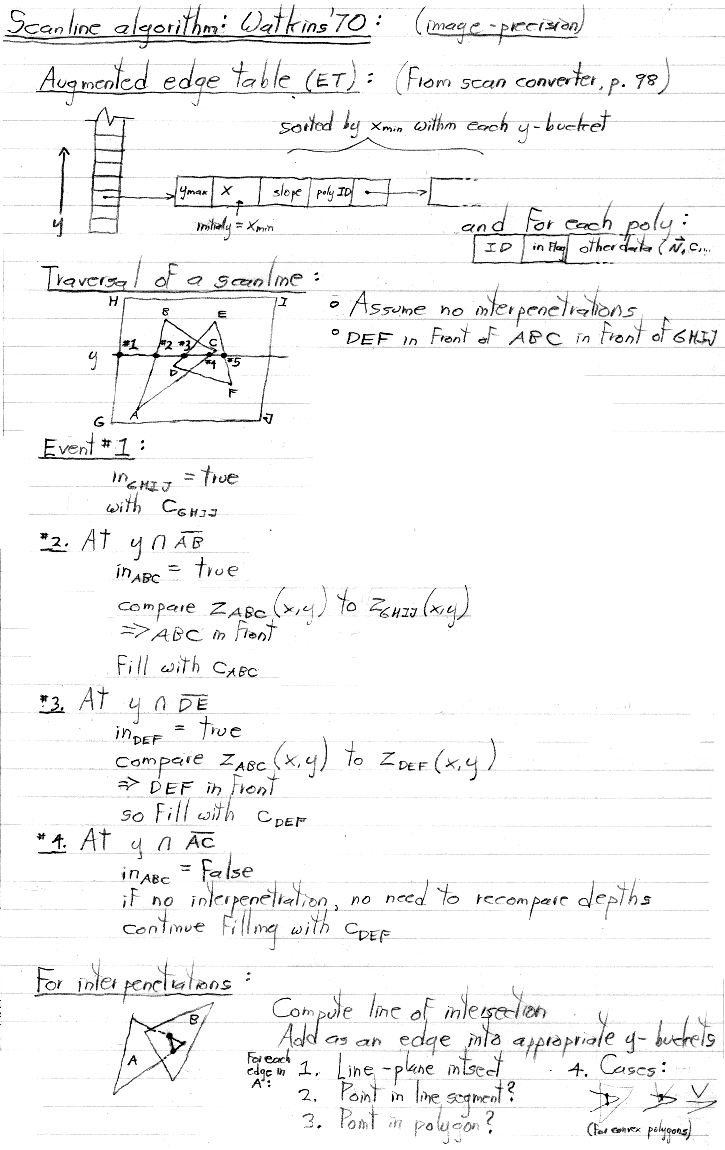

• Scanline algorithm: Watkins

Press here for part II of this lecture.
