Frame buffers, colormaps, dithering

CS 248 - Introduction to Computer Graphics
Spring Quarter, 1995
Marc Levoy
Lecture notes for Tuesday, April 18

Table of contents:

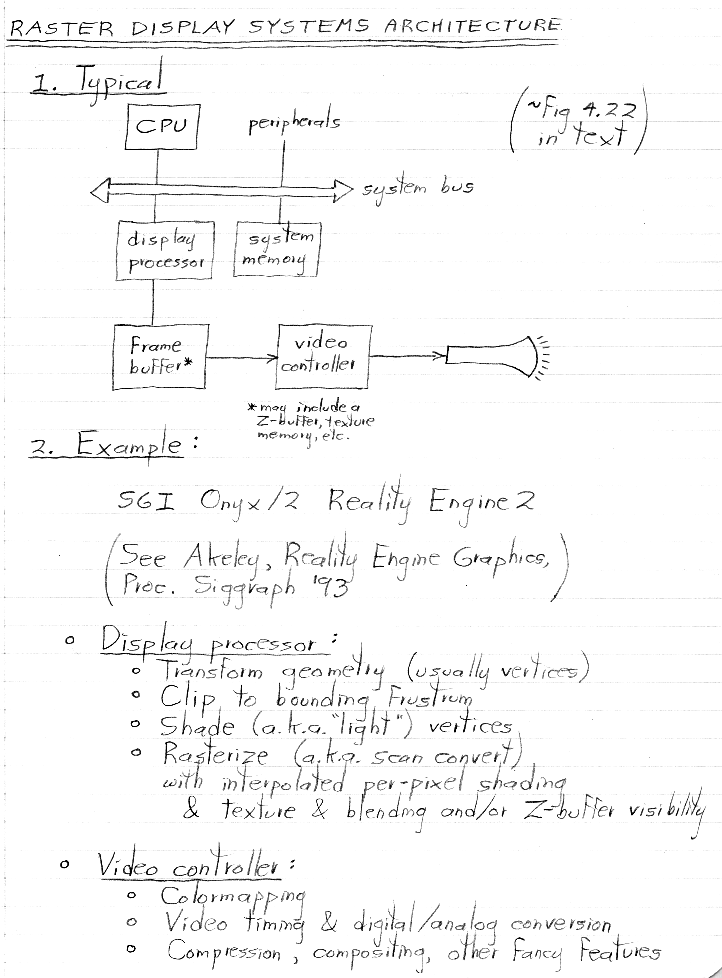

• Raster display systems architecture

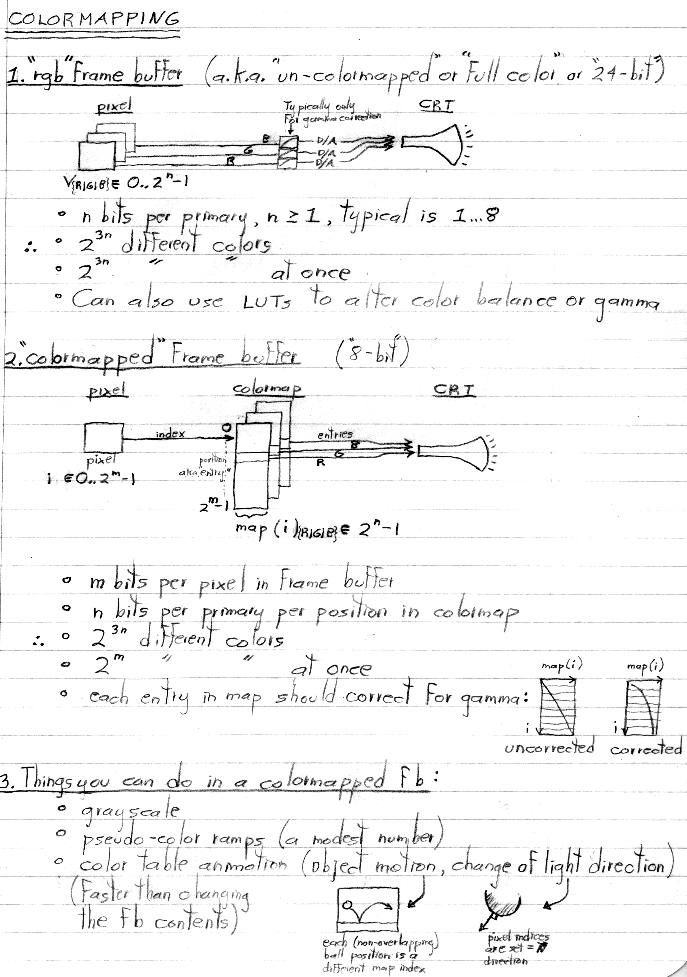

• Colormapping
  1. rgb frame buffer
  2. colormapped frame buffer
  3. Things you can do in a colormapped frame buffer
  4. Things you can't do in a colormapped frame buffer

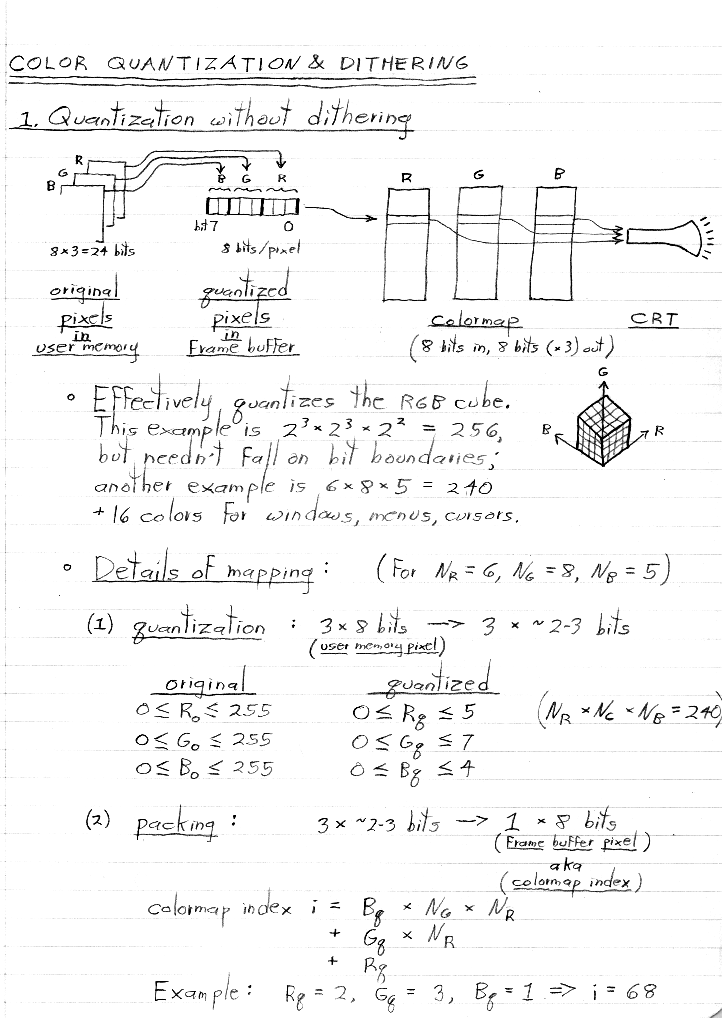

• Color quantization and dithering

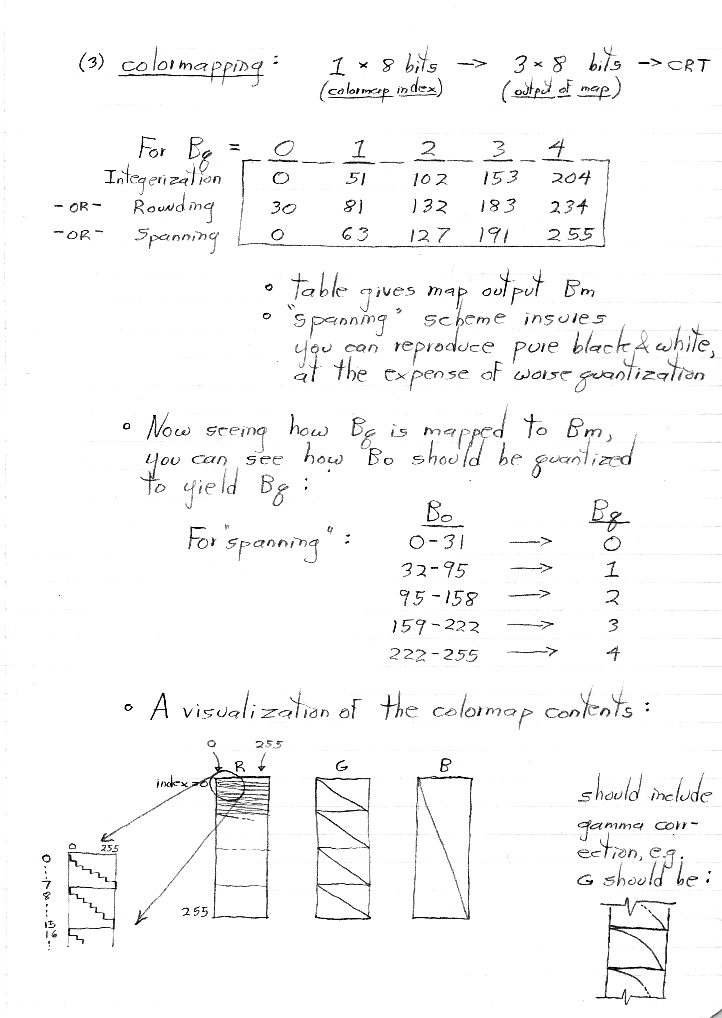

  1. Quantization without dithering

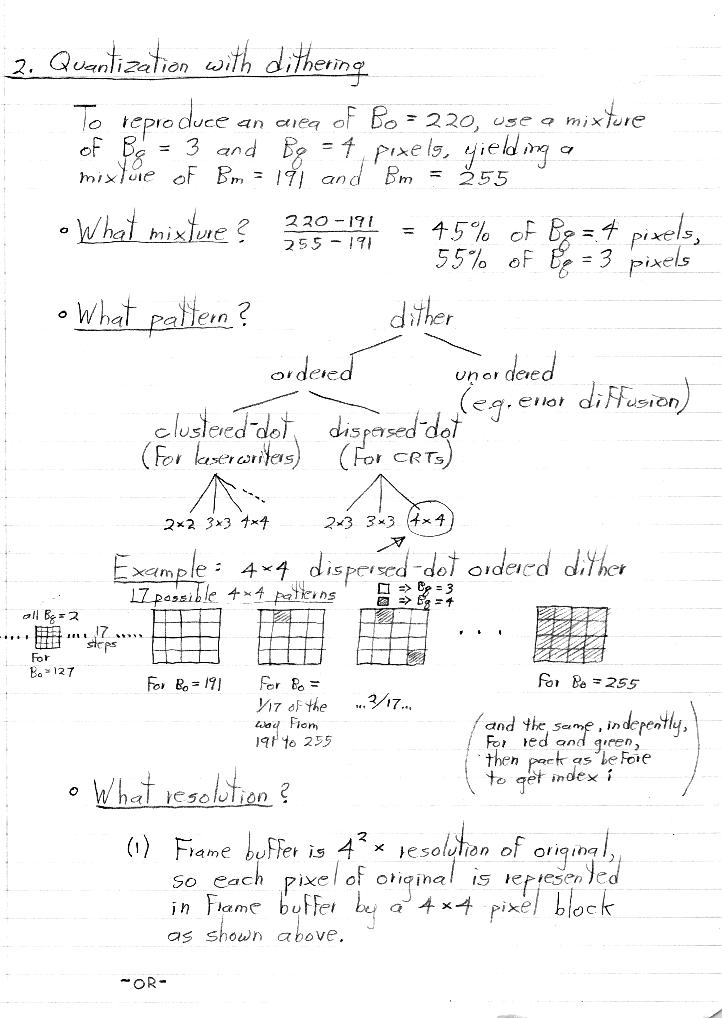

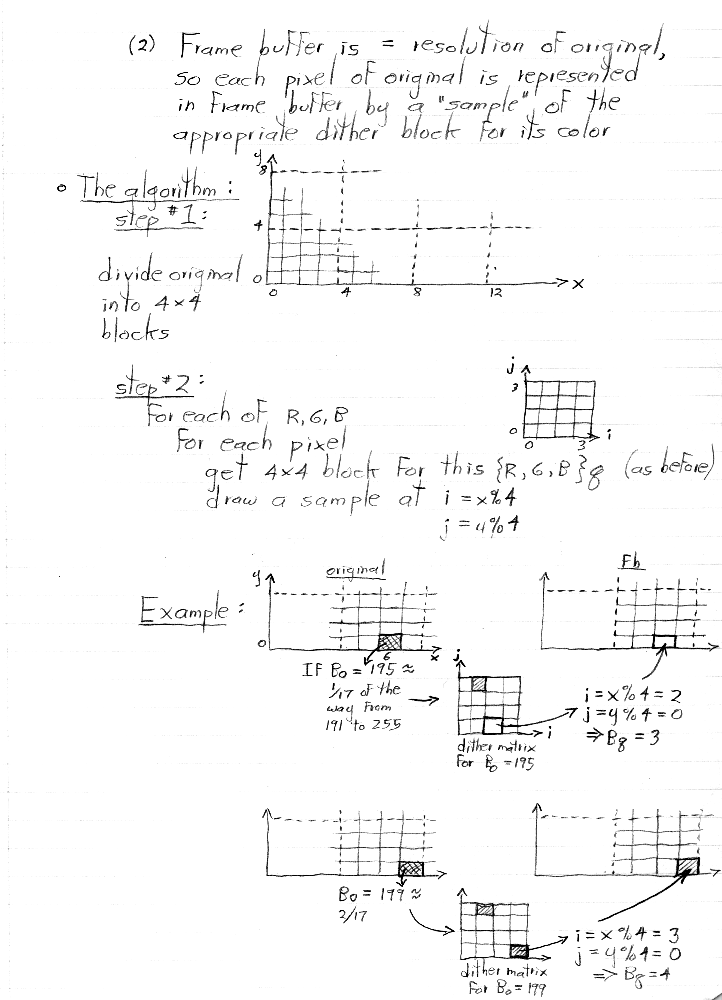

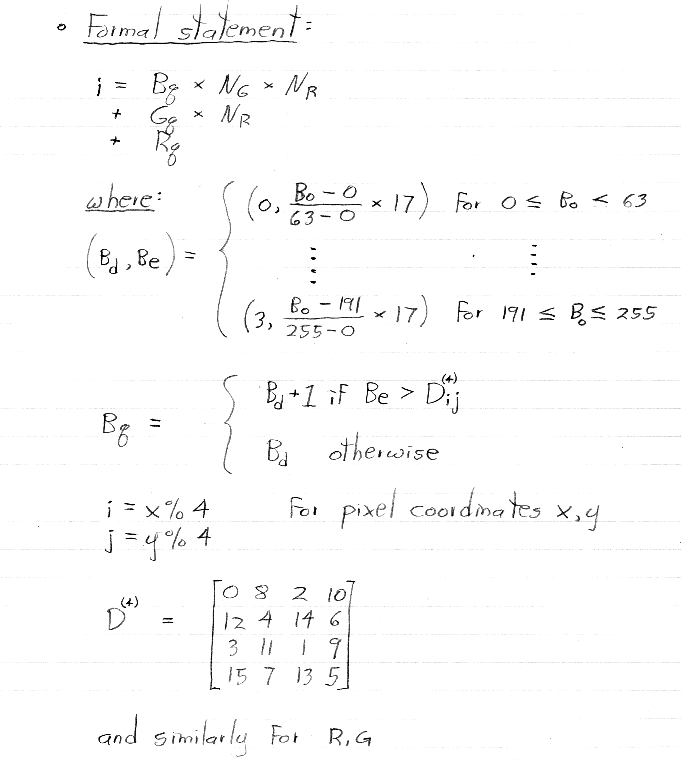

  2. Quantization with dithering

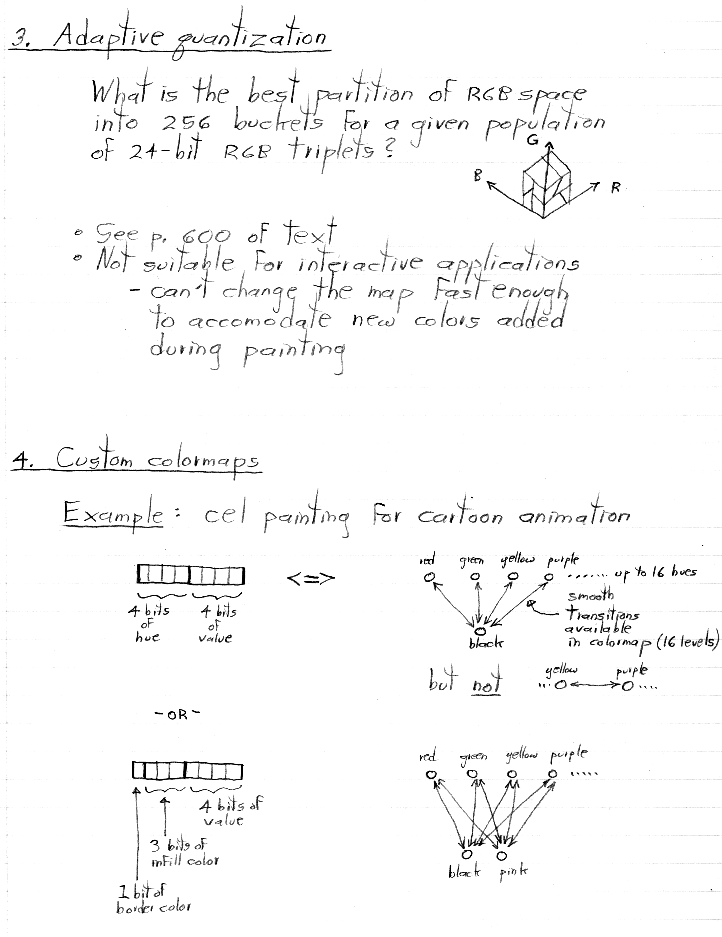

  3. Adaptive quantization
  4. Custom colormaps
