2D transformations

CS 248 - Introduction to Computer Graphics
Spring Quarter, 1995
Marc Levoy
Lecture notes for Tuesday, May 9 (second half of class period)

Table of contents:

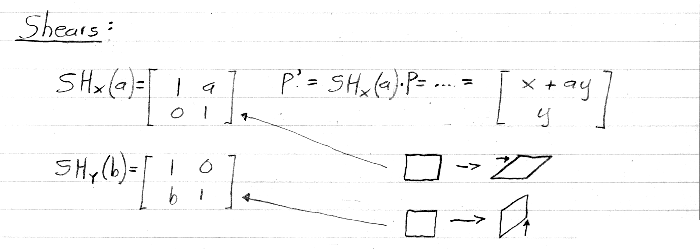

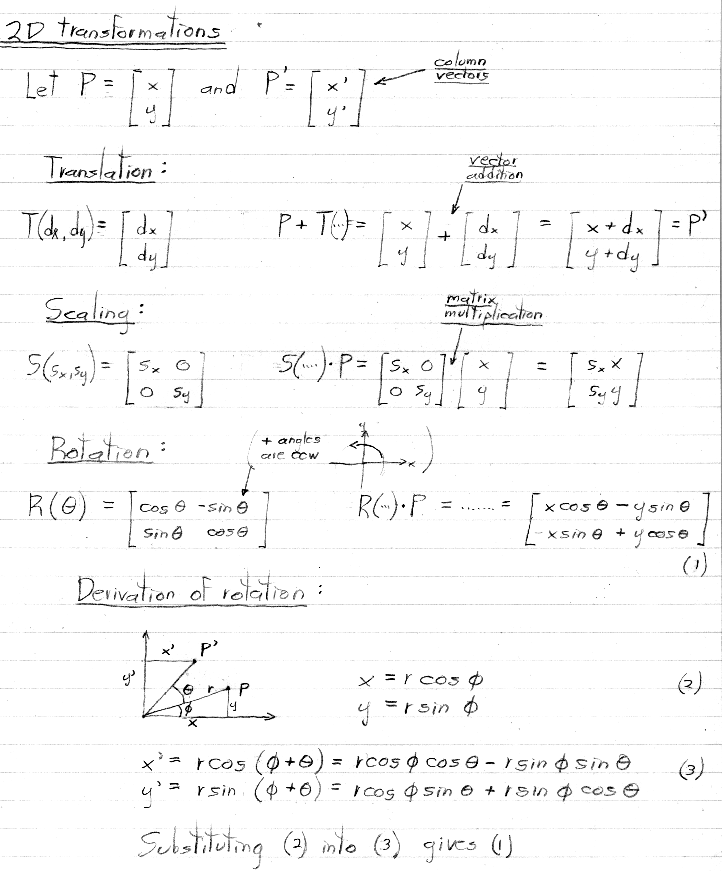

• 2D transformations
• Column versus row spaces

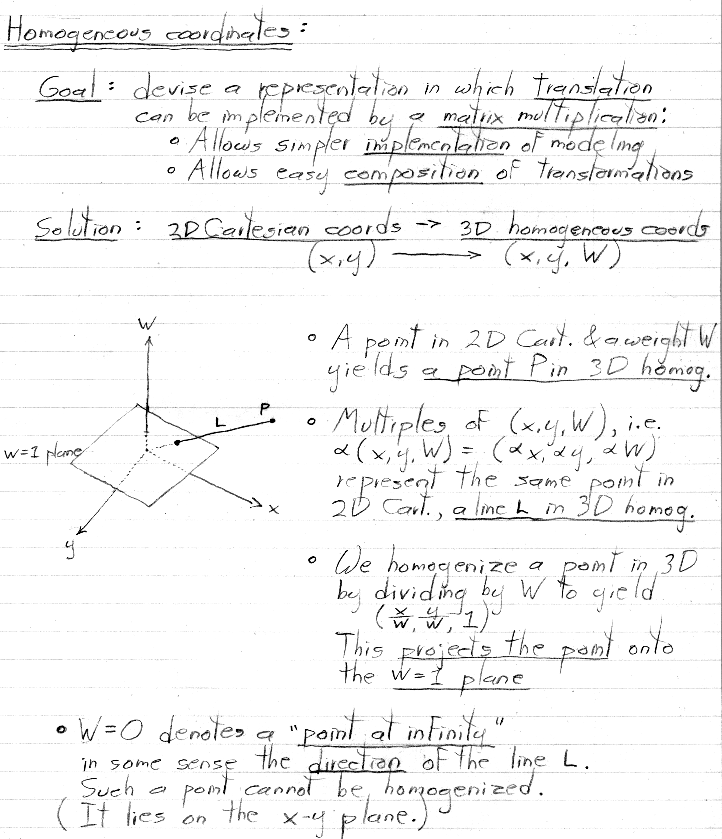

• Homogeneous coordinates

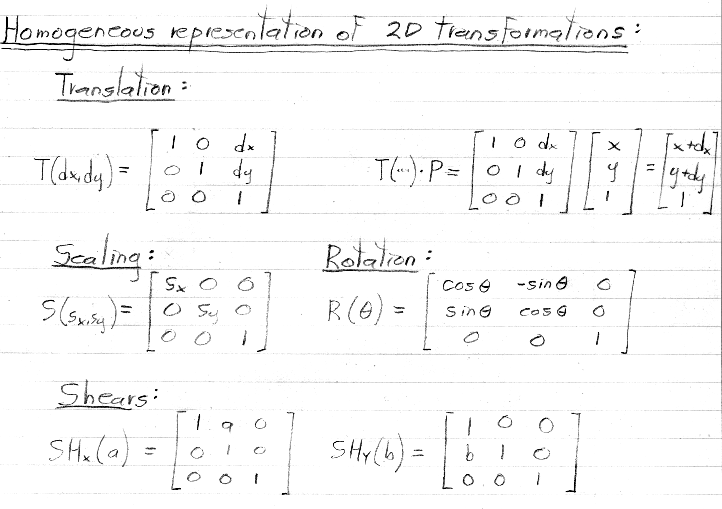

• Homogeneous representation of 2D transformations

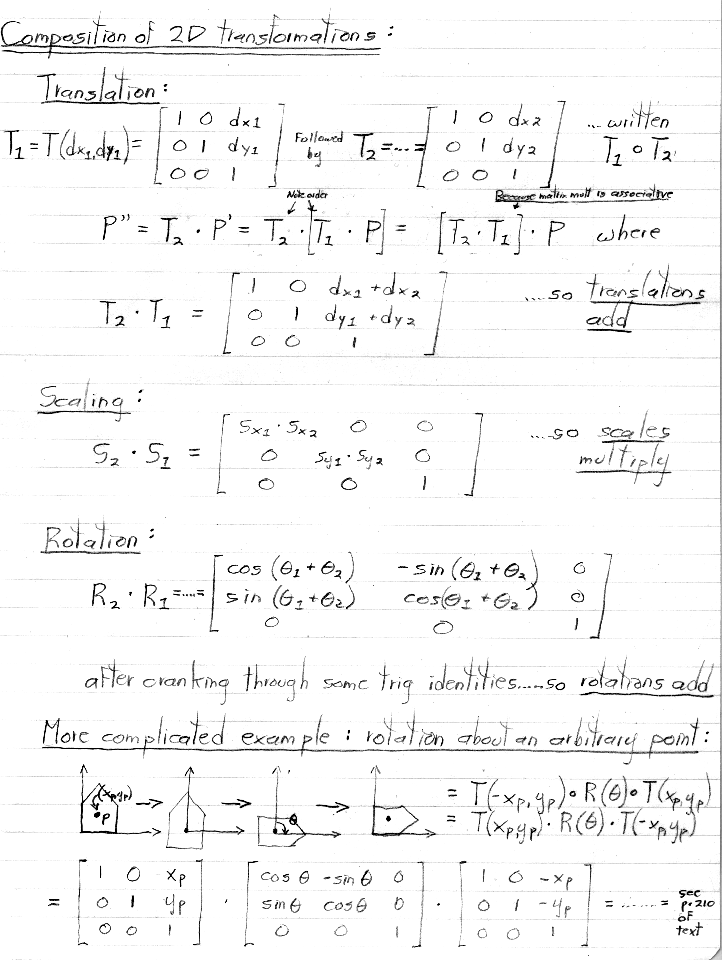

• Composition of 2D transformations
