3D transformations

CS 248 - Introduction to Computer Graphics
Spring Quarter, 1995
Marc Levoy
Lecture notes for Thursday, May 11

Table of contents:

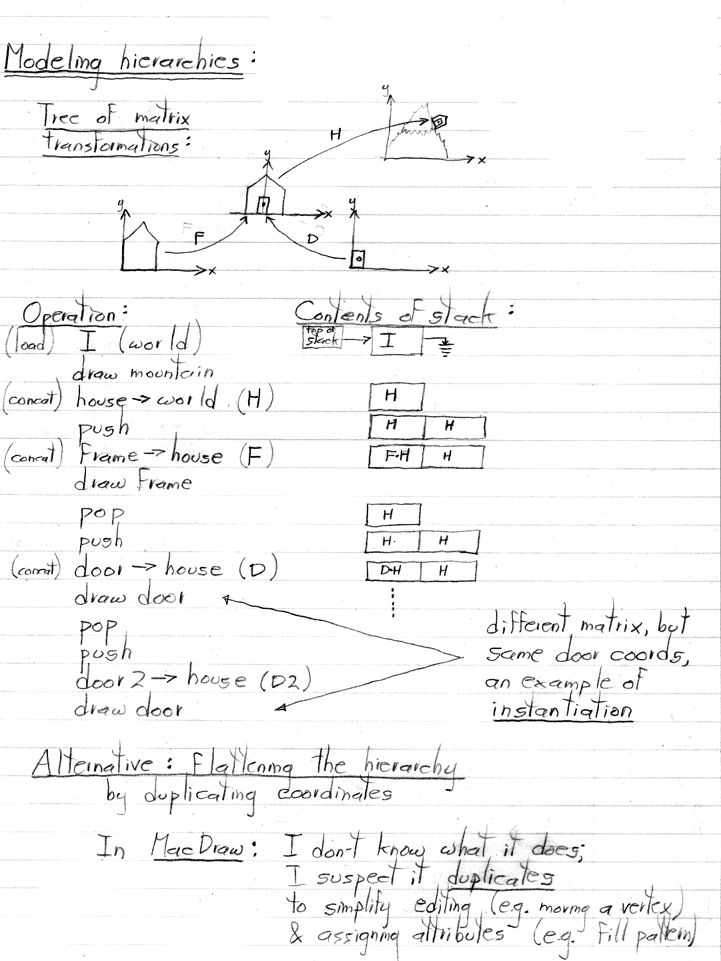

• Modeling hierarchies

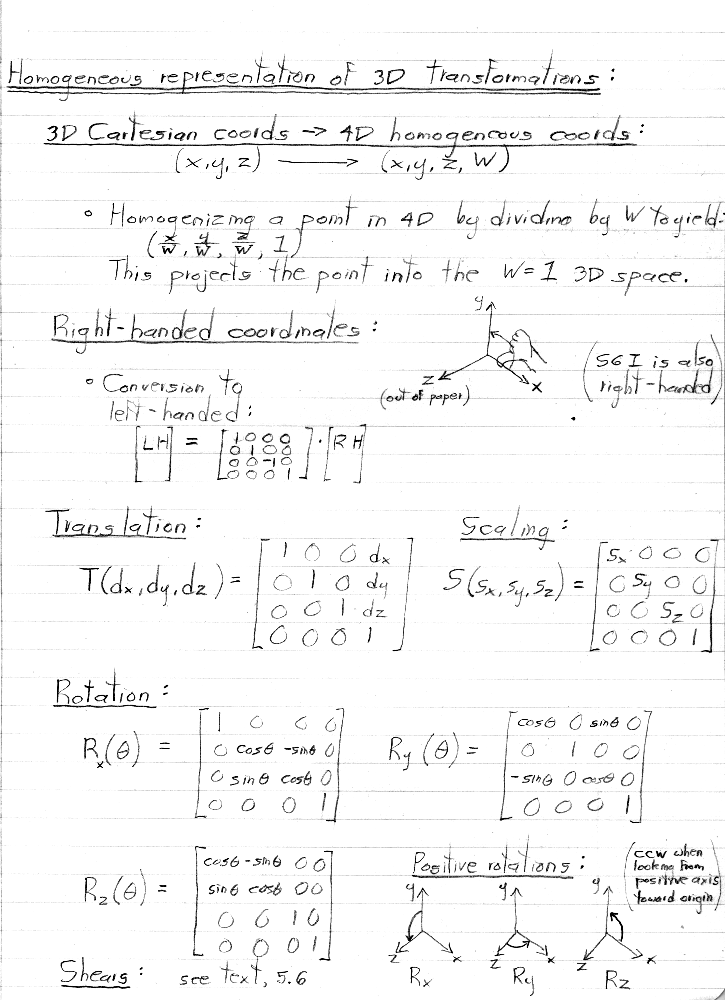

• Homogeneous representation of 3D transformations

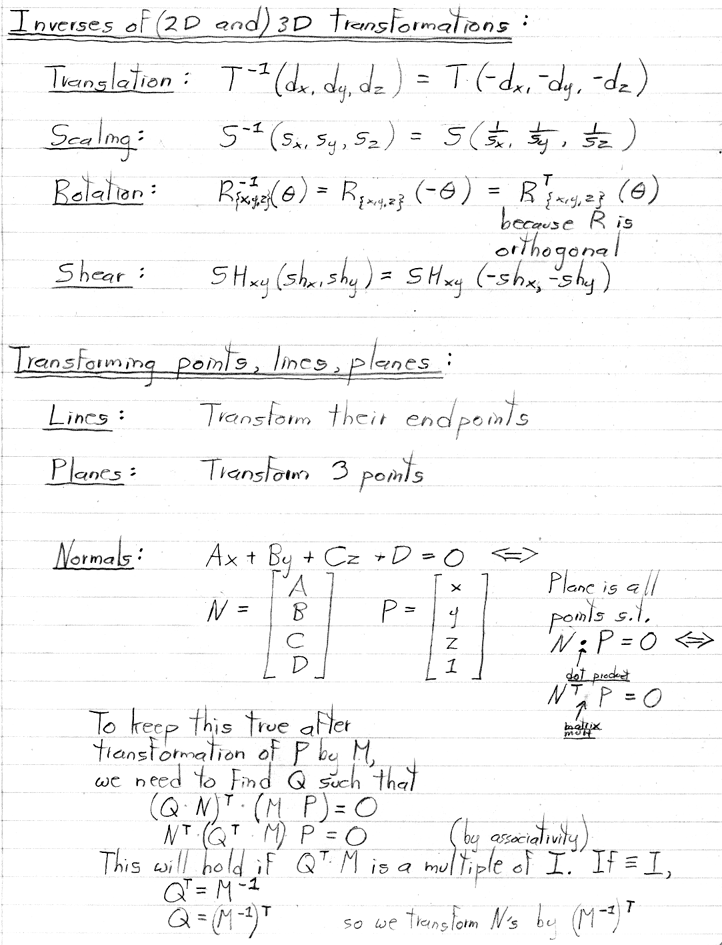

• Inverses of 2D (and 3D) transformations

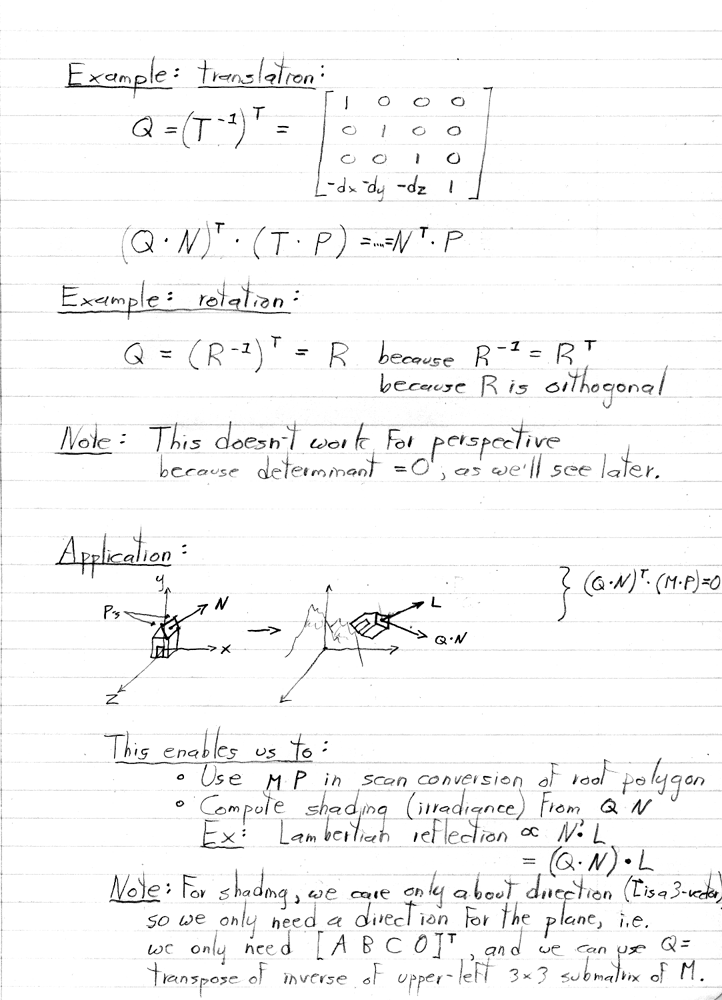

• Transforming points, lines, planes

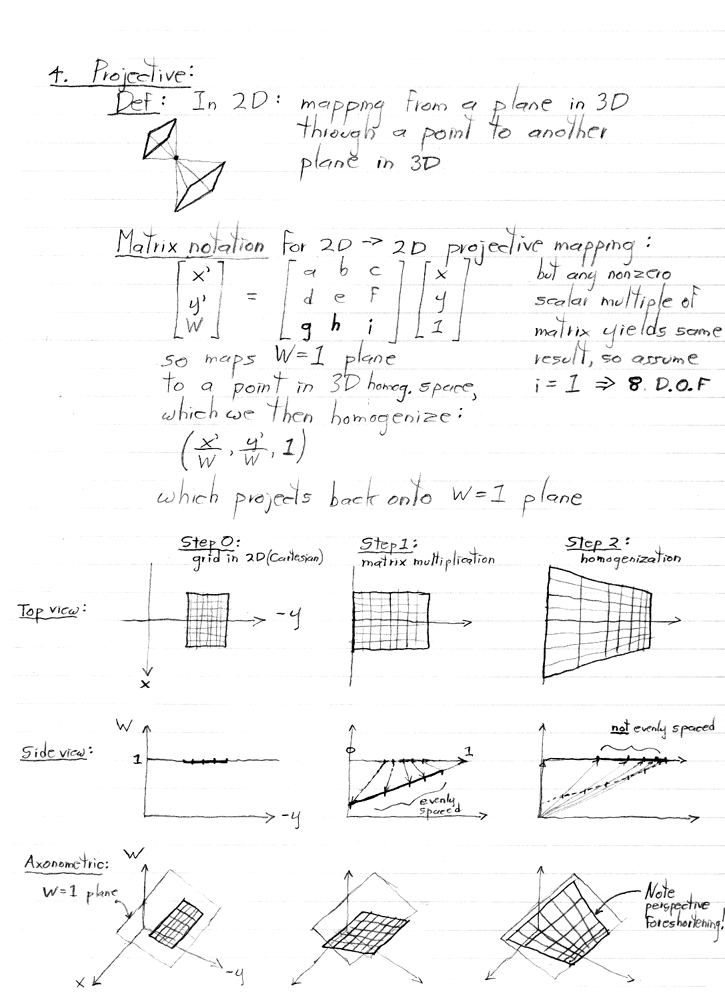

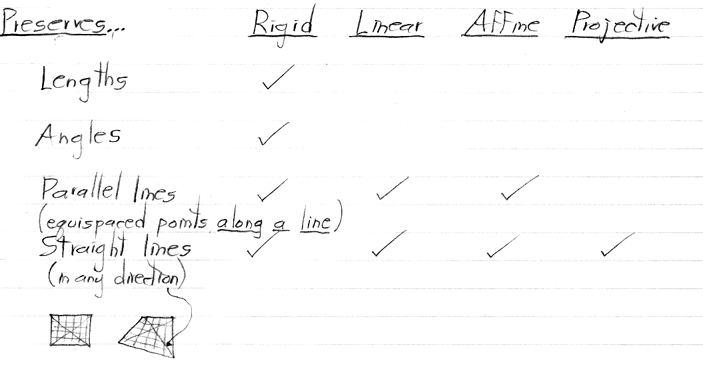

• Taxonomy of mappings
