Using the Effects Framework






Thumbnail Window

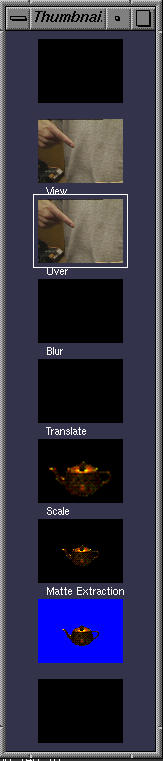

The effects framework allows you to combine source movies and images using the plugins you will write. This document steps you through the creation of a movie. Notice that on the left we have a window containing small images. These images represent our image operation pipeline at different stages. Each stage of the pipeline uses one plugin to modify the video stream in some way.  The pipeline is processed from bottom to top, so that our first source movie is at the bottom, and our final output is at the top. There is also one blank layer at the bottom, and another at the top. These spare layers just aren't in use at the moment.

Image Edit Window

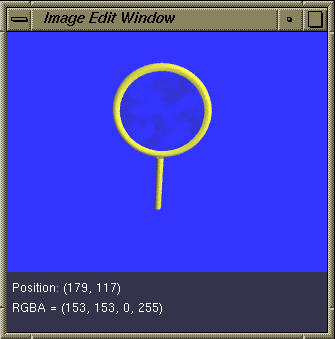

There is also a window which shows you the image in the current layer at full size. Note that if you click the left mouse button over a pixel in this image, position and RGBA pixel information is updated at the bottom of the window. You may find this feature useful when debugging your plugins.






Timeline Window

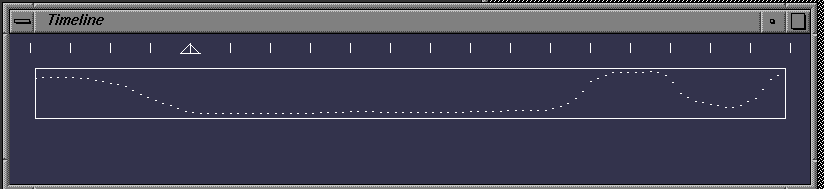

The remaining window is the Timeline window. At the top of the window are a series of hash marks; each represents one frame in a movie. Clicking on a different hatch mark will change your current viewing to a different frame. Note that should you be using multiple movies, their frames all stay in sync as you change frames. The second item of interest is the box below the frame selector. This box is the time varying parameter input. It allows you to graphically control a floating point parameter that is input into all plugins. Its range is 0.0 to 1.0. For example you might use it to control the amount of blurring to apply, or the ratio of images A and B in a blending operation. By changing the shape of this input, we can have plugins that vary their operation over time. There is also a menu on the right mouse button which allows you to select certain preset shapes of the time varying parameter. Note that there is one timeline per image pipeline stage!

Making the Teapot/Hand Movie

Starting Up
When you first start the effects package, the thumbnail window (with all the small images) only has one layer. Lets give ourselves some room to work by choosing the Add Layer option a bunch of times from the popup menu on the right mouse button. Layers are added below the currently selected layer. Note that we can also Delete Layers if we like.

Loading the Teapot

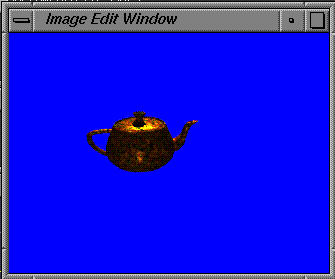

Using the first mouse button select some layer near the bottom of the thumbnail pipeline. (The white border indicates the currently active layer.) Then choose R-Open Movie menu option (where I'll use R- or M- to indicate whether something is on the right or middle menus). This puts a prompt in your console window, at which you can enter a file name. I've used content/teapot.qt. You should now have something similar to the frame below.


Matte Extraction
Next, we'll use a plugin that does matte extraction. This is a digital version of a process used for special effects in movies or to put your local weaherman in front of an image of the United States. The basic idea is that if you put an object that has no blue in its coloring in front of a blue background, you can determine RGBA values for all of the pixels in the image that allow you to blend the image with a background. In particular, correct alpha values for pixels along the border of the object can be computed, which is important for blending the edges smoothly. If you're at all interested, check out Blue Screen Matting, by Alvy Ray Smith and Jim Blinn.

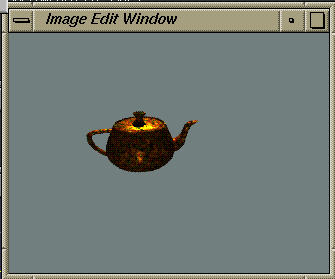

A simple blue screen matte extraction plugin is provided for your use. Choose M-Matte Extraction as the operator for this layer. Things percolate up the operation pipeline, and in this case the image just below contains the teapot is input into the Matte Extraction plugin, and we should see the output on this layer. We can see this below.


Magnification

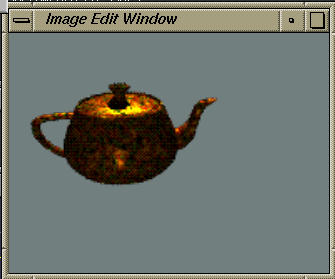

Again selecting the layer just above, we are going to add the next operator to our pipeline. Select M-Magnify. The magnify operation receives its input from whatever is below it on the pipeline. In this case, the output from the Matte extraction is input to Magnify. The output from magnify is shown in this layer, and also passed up the pipeline. The magnify plugin uses the input from the time varying parameter graphical input in the Timeline window to control the amount of scaling. Since we want a constant size magnify, we choose the 0.5 option in the timeline menu. You could also draw a curve the suits you if you wanted the size of the teapot to vary over time.


Translation

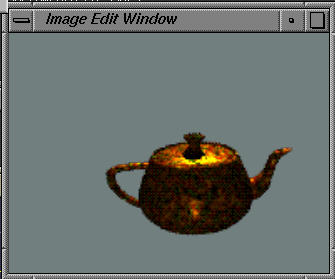

Now we want to change the location of the teapot in our window. By applying the M-Translate plugin to the next layer, we can achieve this. Note that our translate plugin asks for an X,Y displacement with a console dialog. This prompt will appear whenever you reselect translate, so you can just select it several times, until you obtain the offset you desire.


Blur

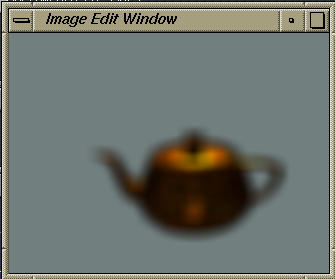

We would like to apply a time varying blur to the teapot. Fortunately the blur operator has the blurring radius hooked up to the graphical time varying input selector. I chose ramp up from the timeline menu so that the teapot will range from no blur at the start of the movie, to very blurred at the end. Of course I could draw by hand a curve representing the amount of blurring at each time step if I desired.


Compositing with Over

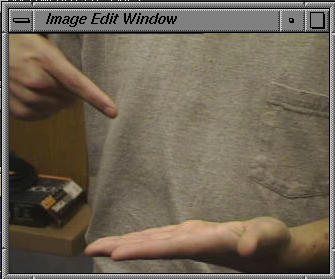

The next operation we apply is a bit different. We would like to composite the teapot over another movie. The Over plugin takes two inputs. One input is the current image which has percolated up the operation pipeline from below. In this case the operation below outputs the blurred teapot. The other input to a two input operation like Over, comes from whatever is in the current layer. First select the M-Over plugin. Then choose R-Open Movie, to select the contents of the current layer. I opened content/hand.qt. Since we are already storing one of the inputs to Over in this layer, the output from Over can not be stuffed into this layer for visualization. It is however passed up the pipeline as usual. This point can be a bit confusing. Plugins that take one input, just use the pipeline value from below, and let you see the output by stuffing it into the current layer. Some plugins need two inputs, so in addition to the pipeline value, we use whatever is in the current layer. This means we can't stuff anything back into it, but the operation does happen even though we don't see the output. It's on the pipeline. Below we see a frame from the movie we opened.

Viewing
We now have our final image on the pipeline, but we can't see it anywhere. Fortunately there is a plugin that helps. Choose R-View. This allows us to see the contents of the pipeline. It just takes the input coming up from below, and doesn't do anything to it. The result of not doing anything, is the same as the input from below, and this is stuffed into the current layer, so that we can see it. This same input with nothing done to it, is stuffed onto the pipeline for use by things above. Below we see an image of the teapot composited over Lucas.

Saving the movie
Now we can save our masterpiece. Choose R-Save Movie and enter a filename. This will take a little while (a few minutes) since each frame needs to be processed by the whole pipeline of operations. As each frame is completed it is shown.

The (none) operator
Some layers might have the (none) operator selected. This is mandatory on the bottom layer, since there is no pipeline below to get input from. Any layer with none selected does not invoke an operator, but instead copies its contents onto the pipeline for use by things above.


CS248: Introduction to Computer Graphics, Pat Hanrahan, Fall 1998
