Physical colorspaces

CS 248 - Introduction to Computer Graphics
Autumn Quarter, 1999
Marc Levoy
Lecture notes for Thursday, September 30

Table of contents:

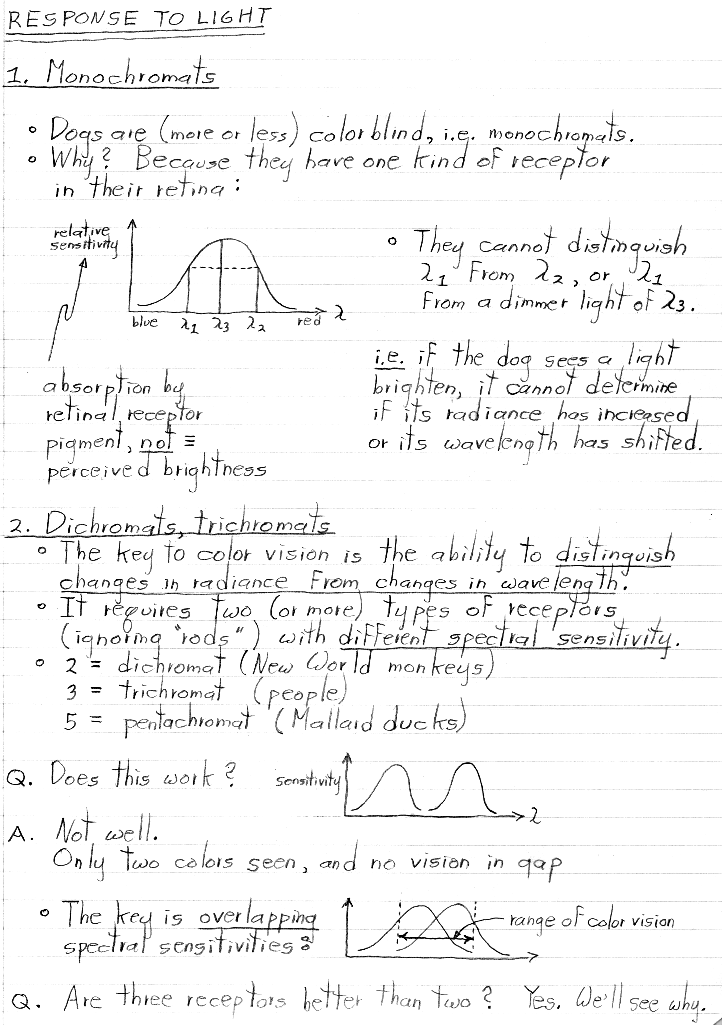

• Response to light
  1. Monochromats
  2. Dichromats, trichromats

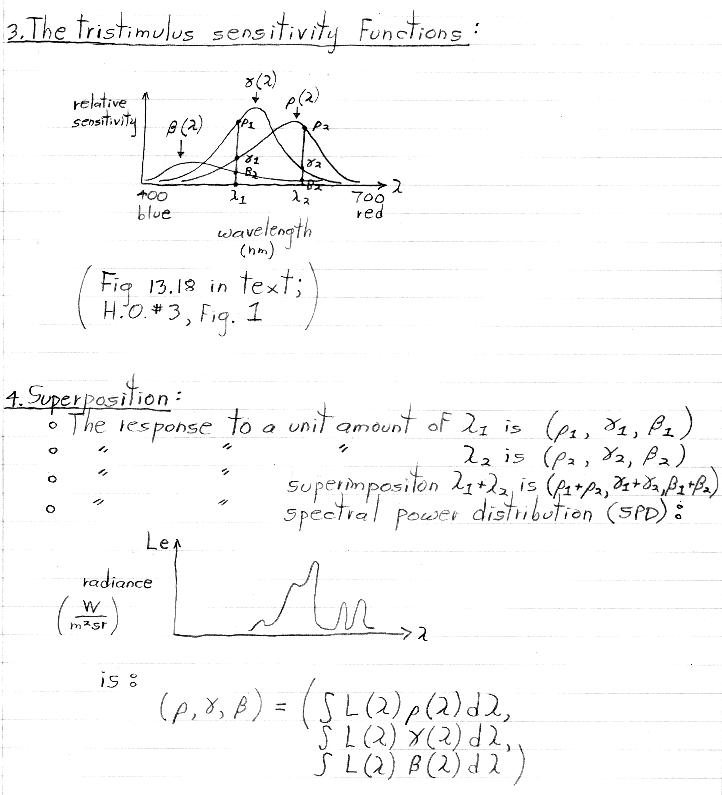

  3. The tristimulus sensitivity functions
  4. Superposition

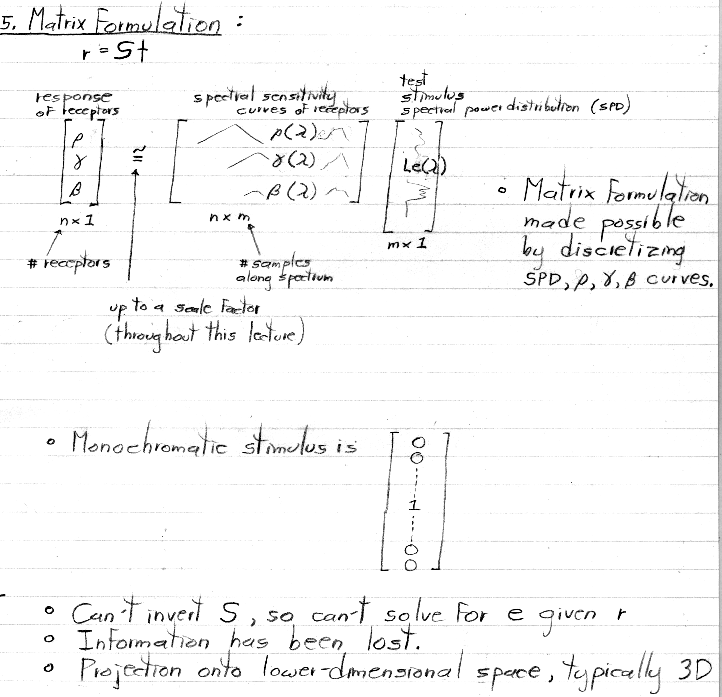

  5. Matrix formulation

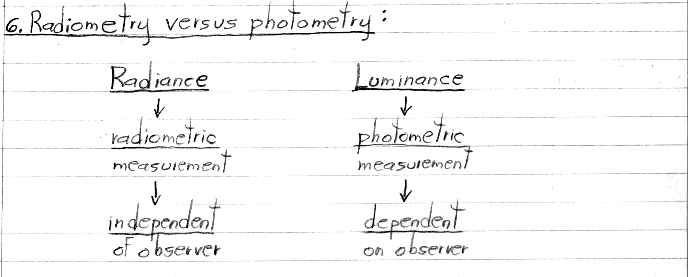

  6. Radiometry versus photometry

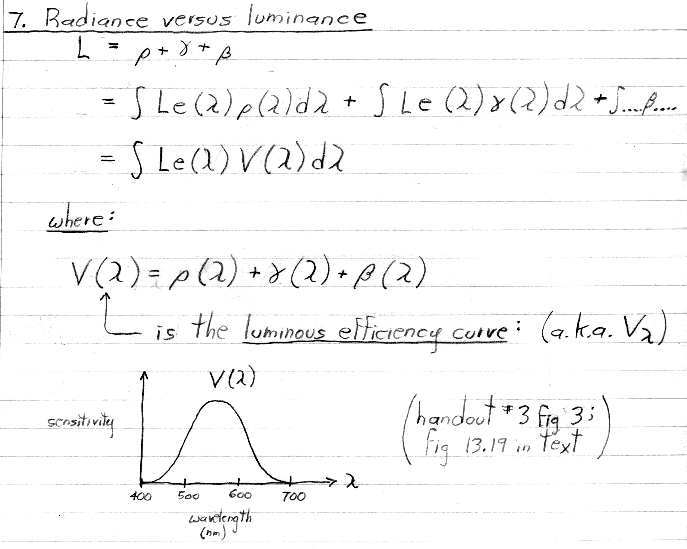

  7. Radiance versus luminance
• Color matching

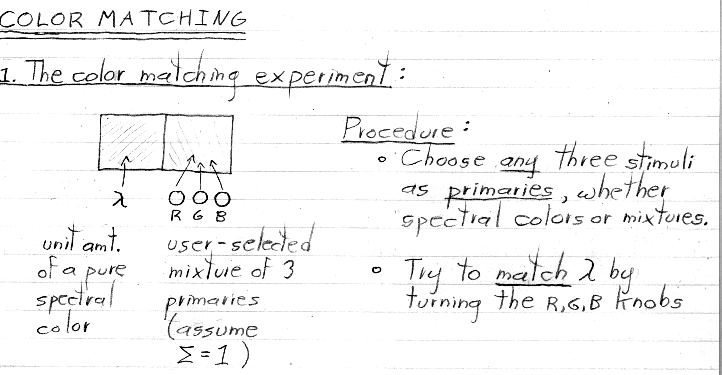

  1. The color matching experiment

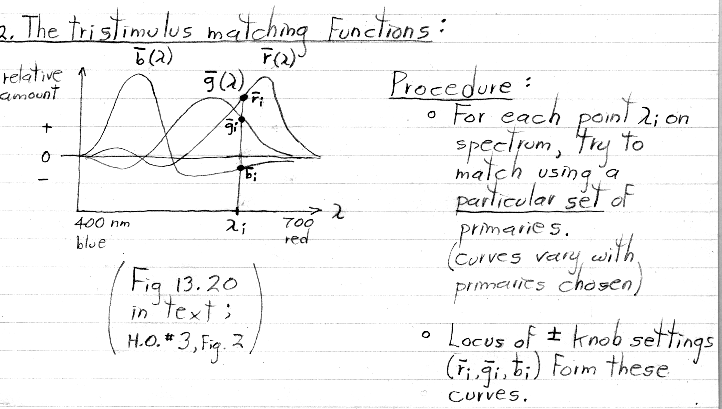

  2. The tristimulus matching functions

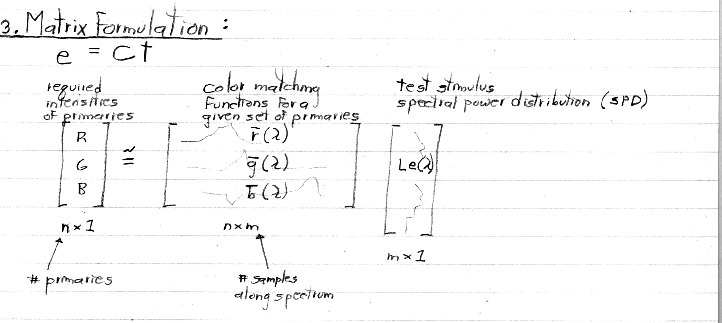

  3. Matrix formulation

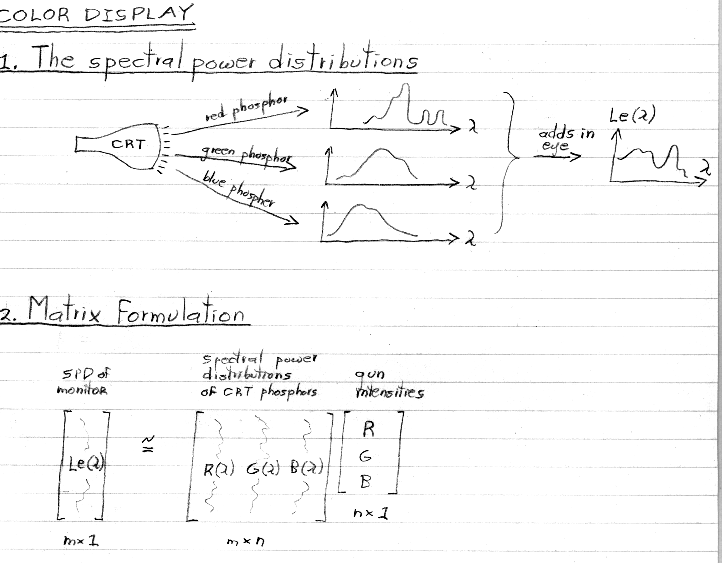

• Color display
  1. The spectral power distributions
  2. Matrix formulation

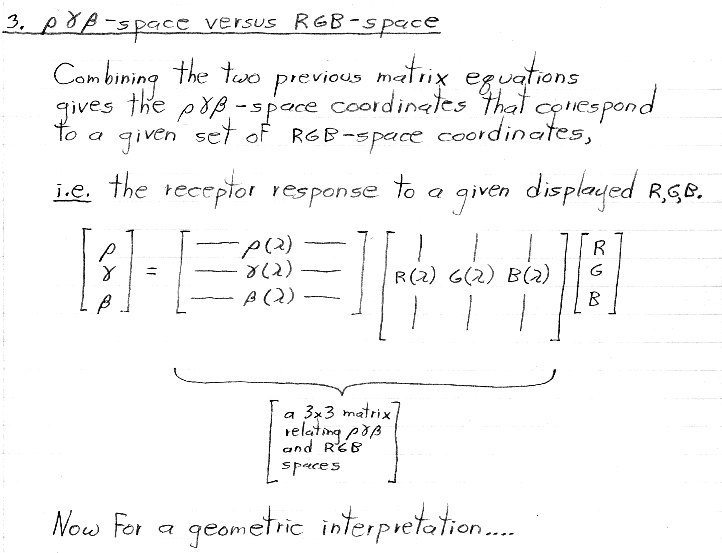

  3. rho,gamma,beta-space versus RGB-space
• Cartesian colorspaces

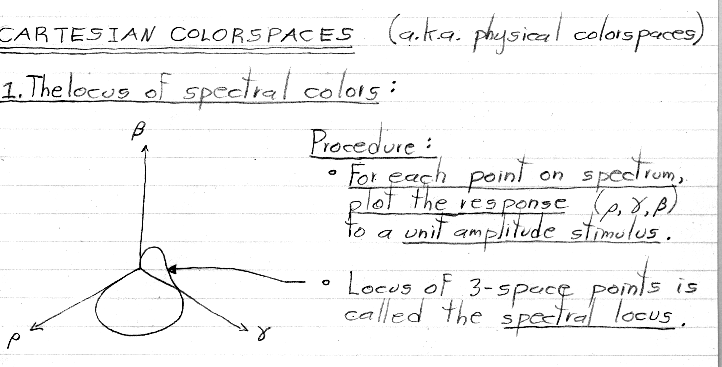

  1. The locus of spectral colors

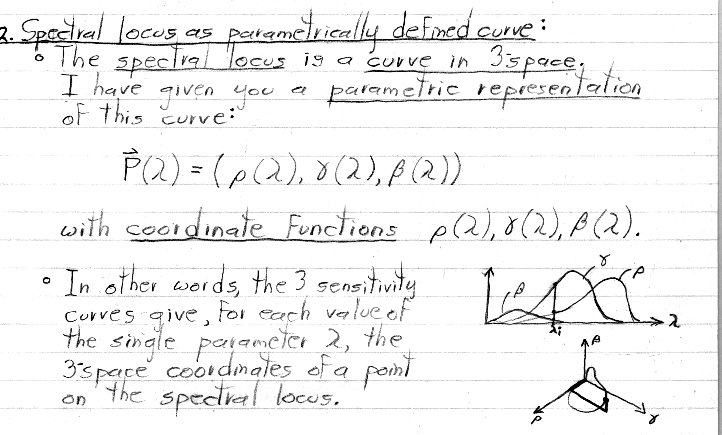

  2. Spectral locus as parametrically defined curve

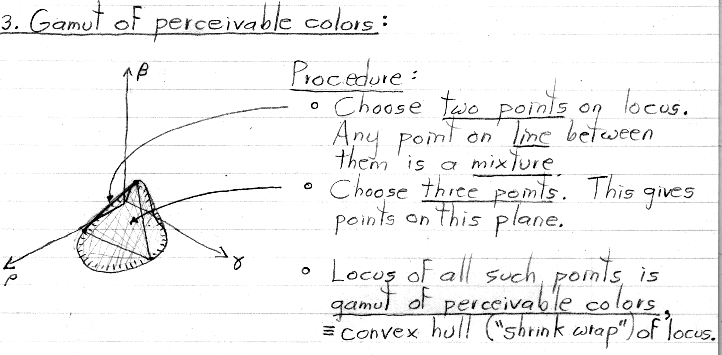

  3. Gamut of perceivable colors

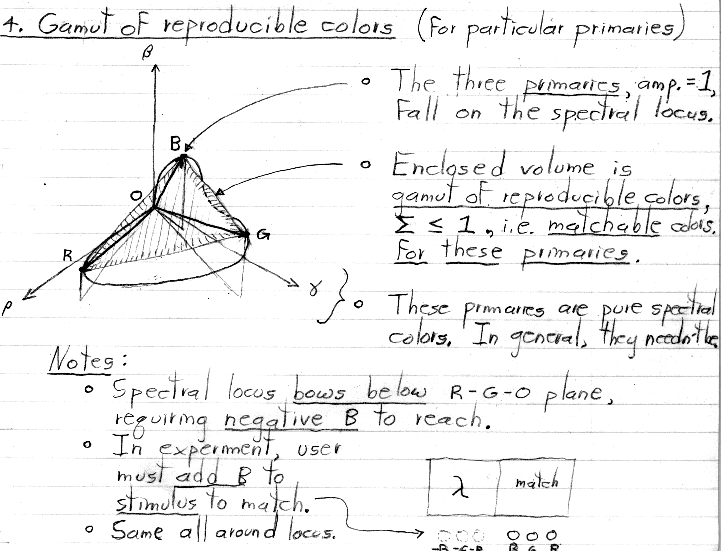

  4. Gamut of reproducible colors

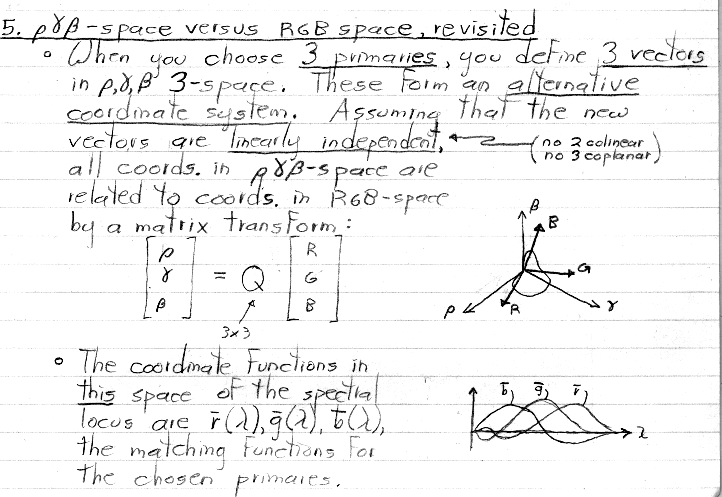

  5. rho,gamma,beta-space versus RGB-space, revisited

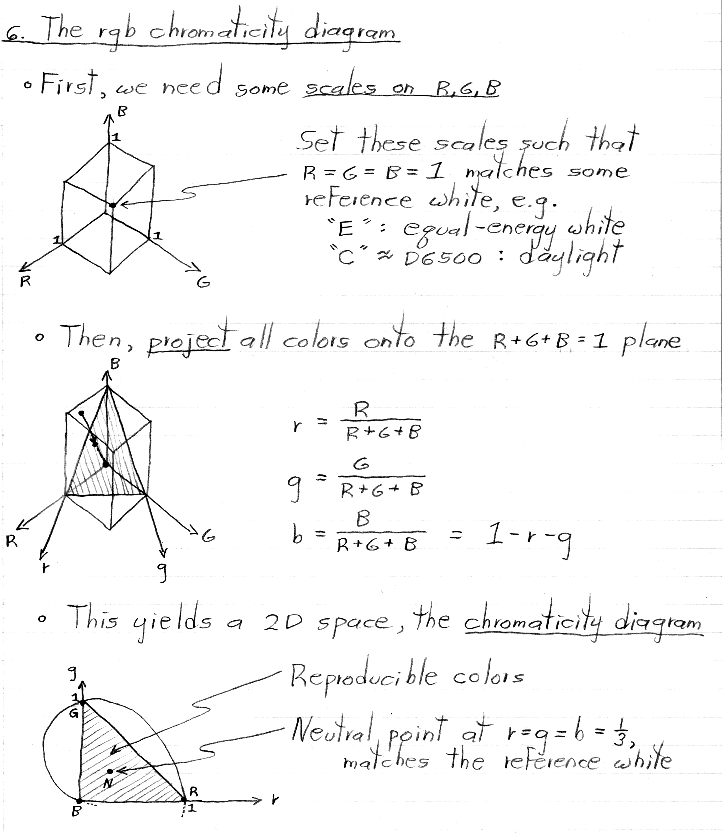

  6. The rgb chromaticity diagram

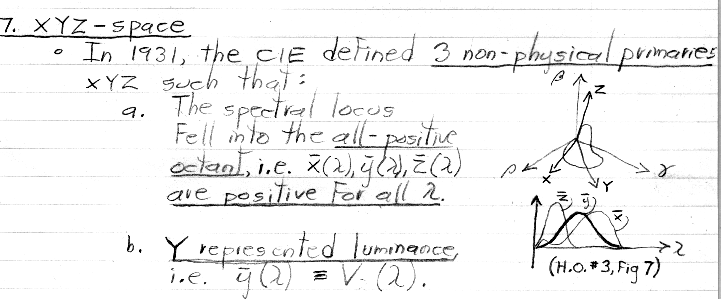

  7. XYZ-space
• A real application
  1. Reproducing synthetic colors on a given monitor
  2. Deriving this 3x3 matrix
  3. Gamut clipping
