Sampling theory, aliasing

CS 248 - Introduction to Computer Graphics
Autumn Quarter, 1999
Marc Levoy
Lecture notes for Tuesday, October 12

Table of contents:

• Sampling and reconstruction

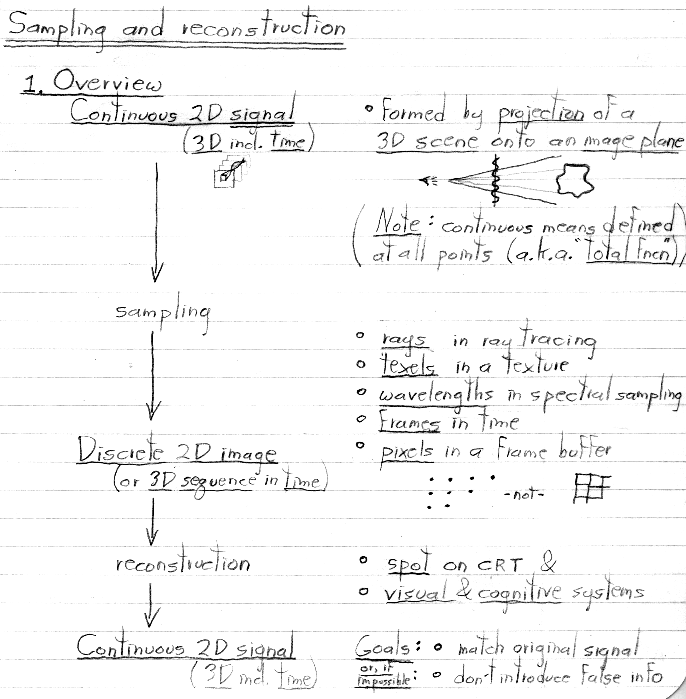

  1. Overview

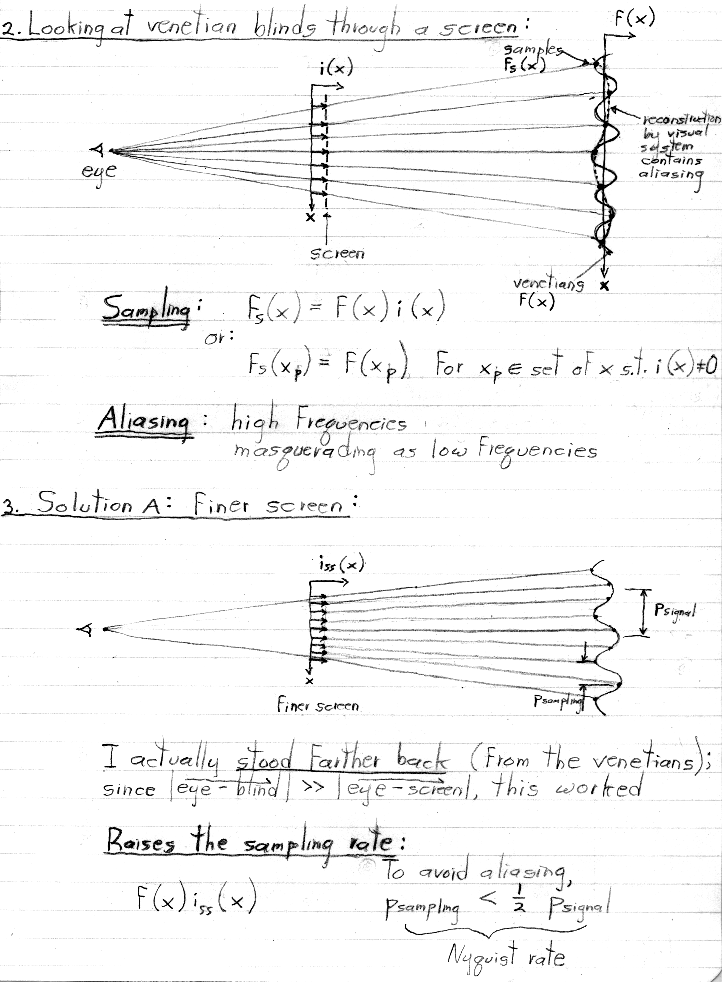

  2. Looking at venetian blinds through a screen (sampling)
  3. Solution A: finer screen (raising the sampling rate)

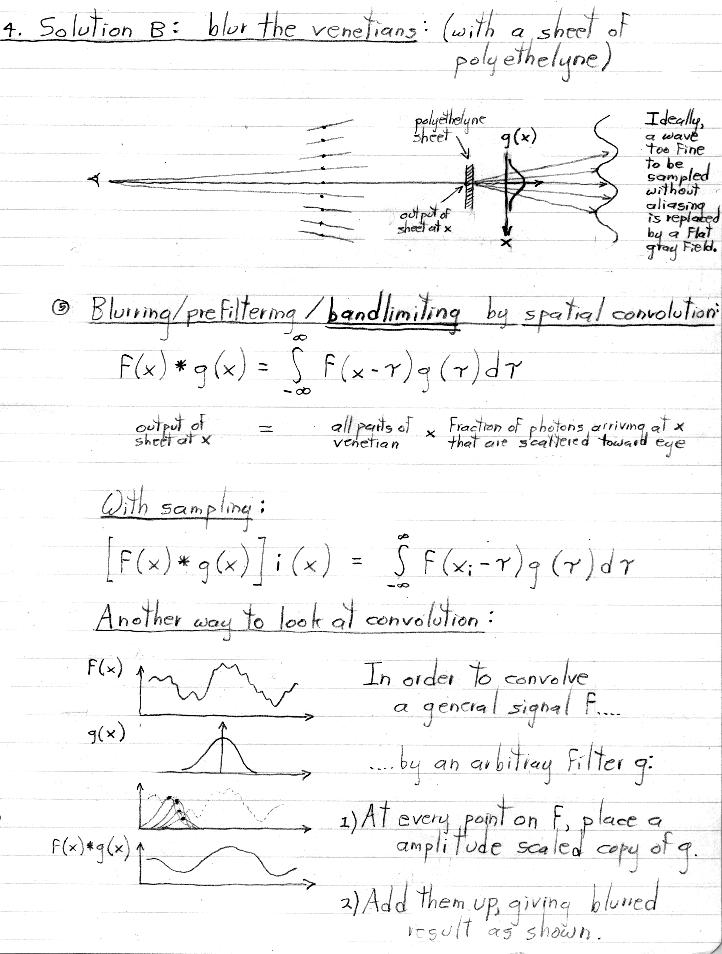

  4. Solution B: blur the venetians (bandlimiting)

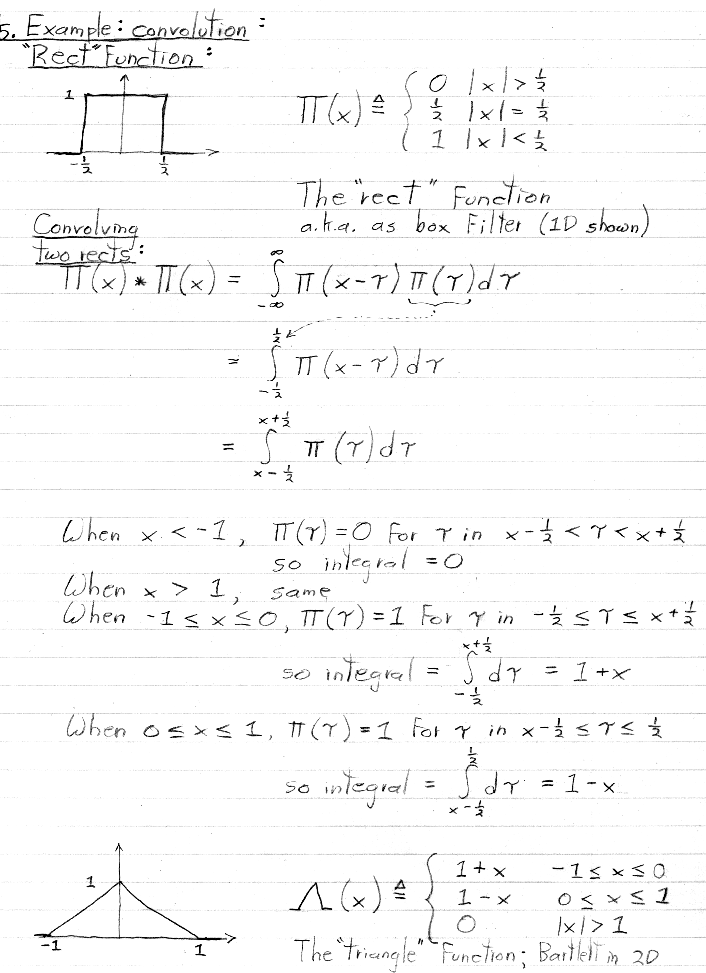

  5. Example of convolution: rect function
     Facts about convolution

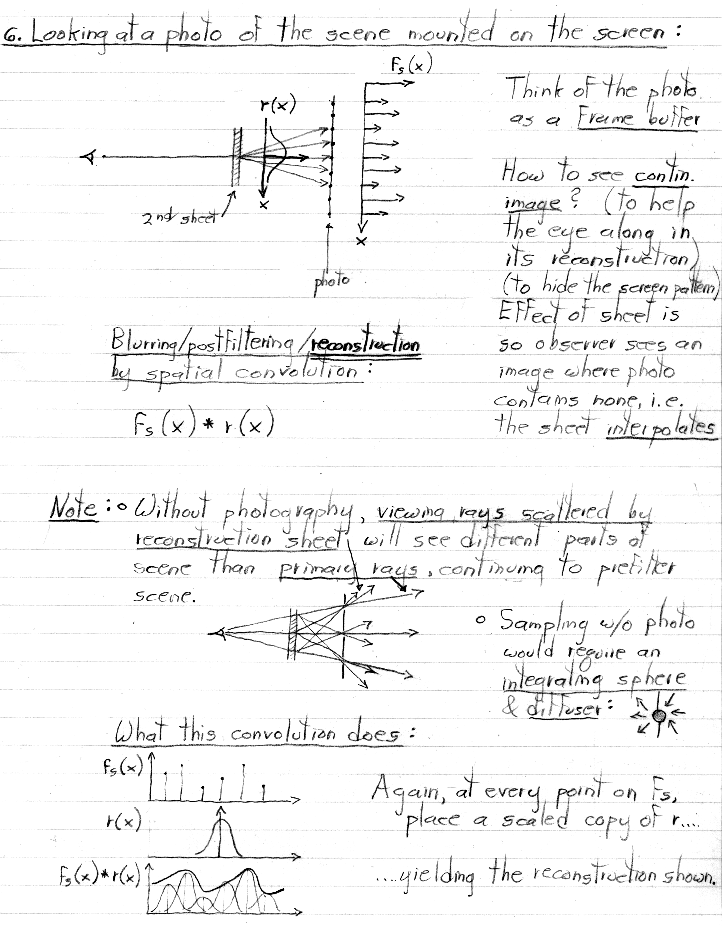

  6. Looking at a photo of the scene mounted on the screen (reconstruction)

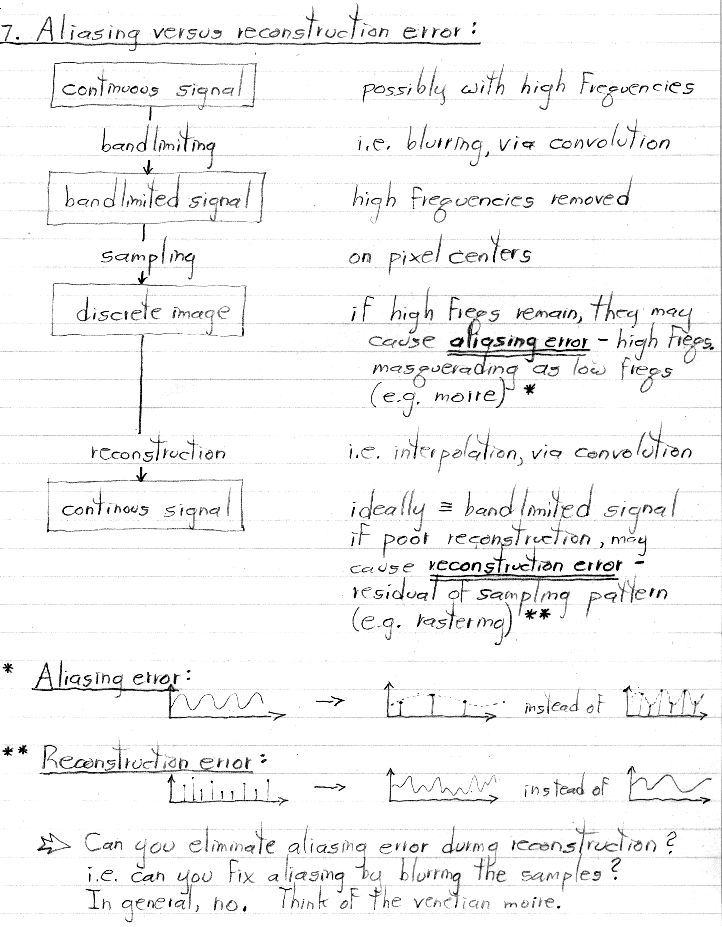

  7. Aliasing versus reconstruction error

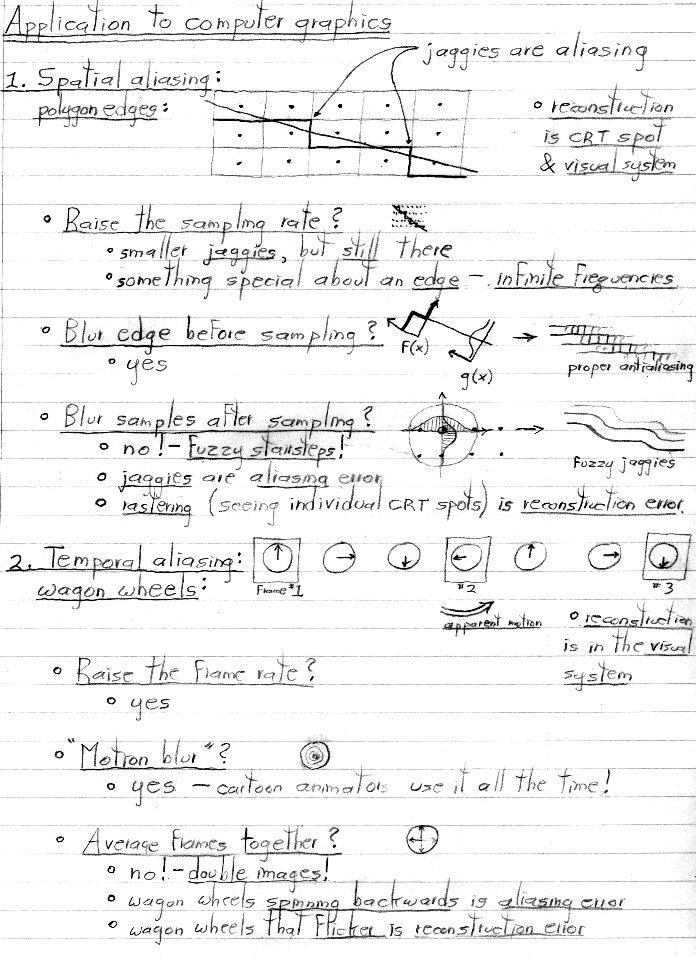

• Application to computer graphics
  1. Spatial aliasing: polygon edges
  2. Temporal aliasing: wagon wheels

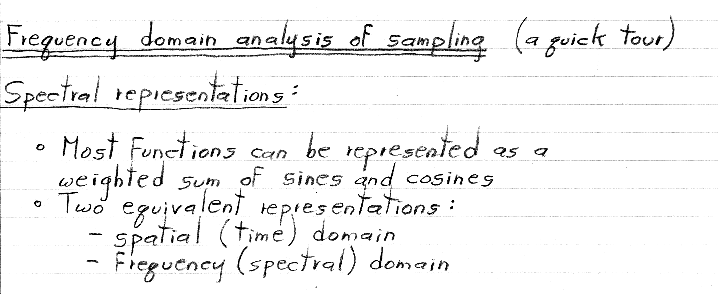

• Frequency domain analysis of sampling (a quick tour)
  • Spectral representations

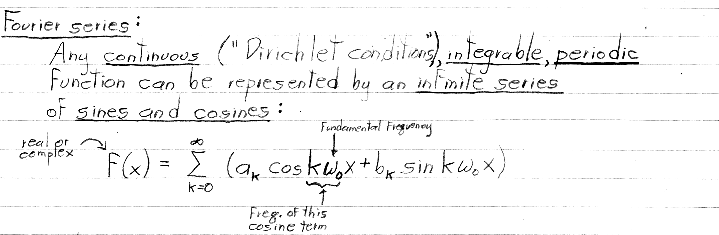

  • Fourier series: periodic functions

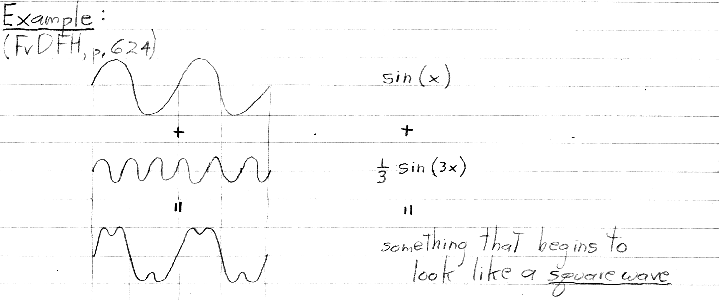

  • Example: sum of sines

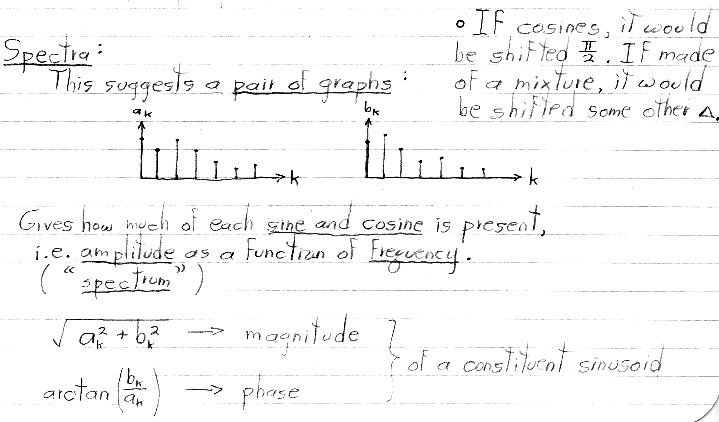

  • Spectra: a pair of graphs

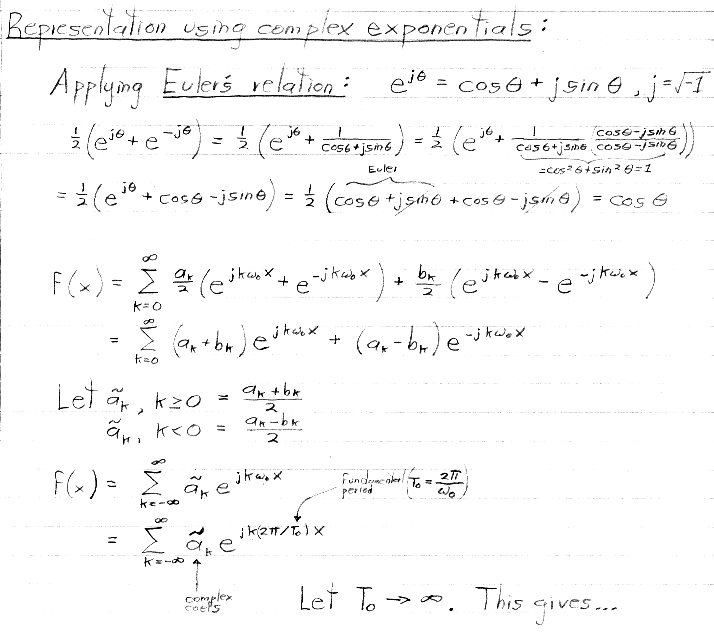

  • Representation using complex exponentials
  • Fourier integral: aperiodic functions

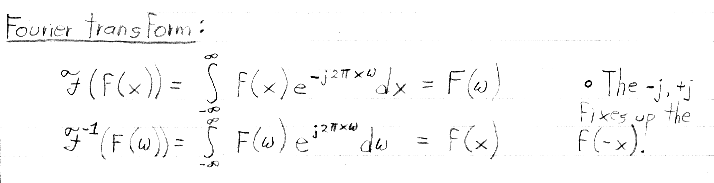

  • Fourier transform

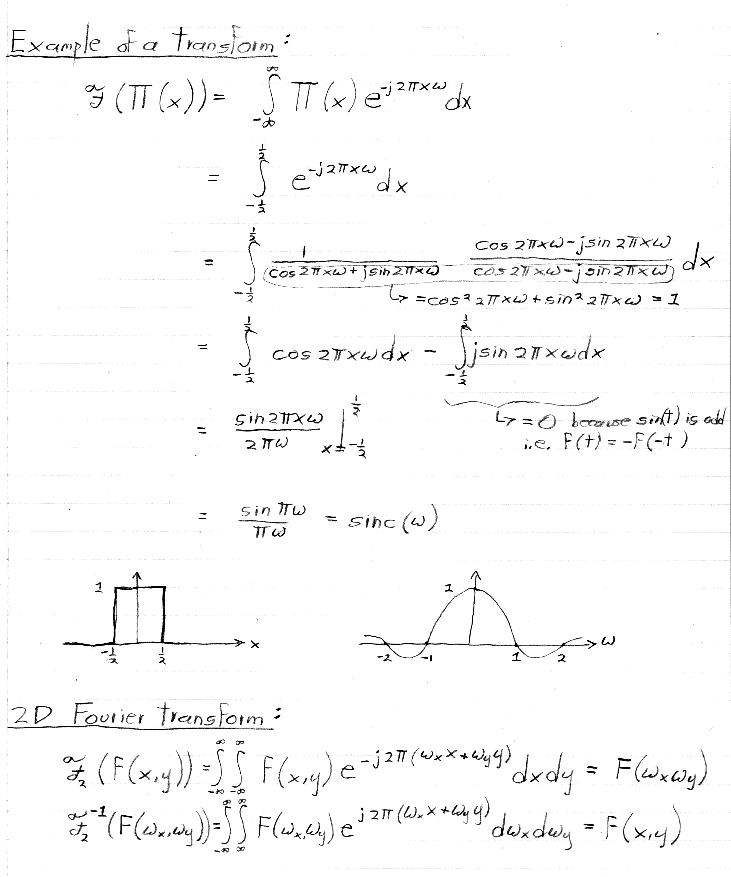

  • Example of a transform: box and sinc
  • Dualities

Press here for handout #6: Sampling and reconstruction.
