Practical antialiasing (part I)
CS 348B - Computer Graphics: Image Synthesis Techniques
Spring Quarter, 1996
Lecture notes for Tuesday, April 16
Table of contents:

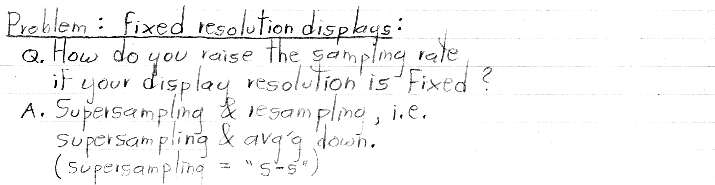

- What's the best way to prevent aliasing?

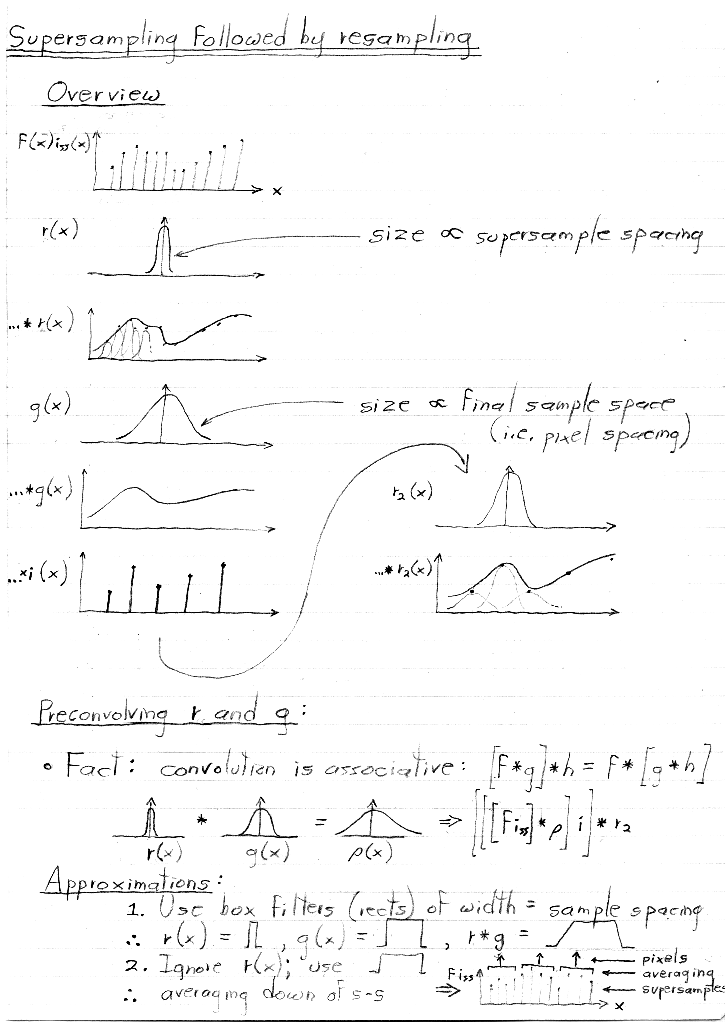

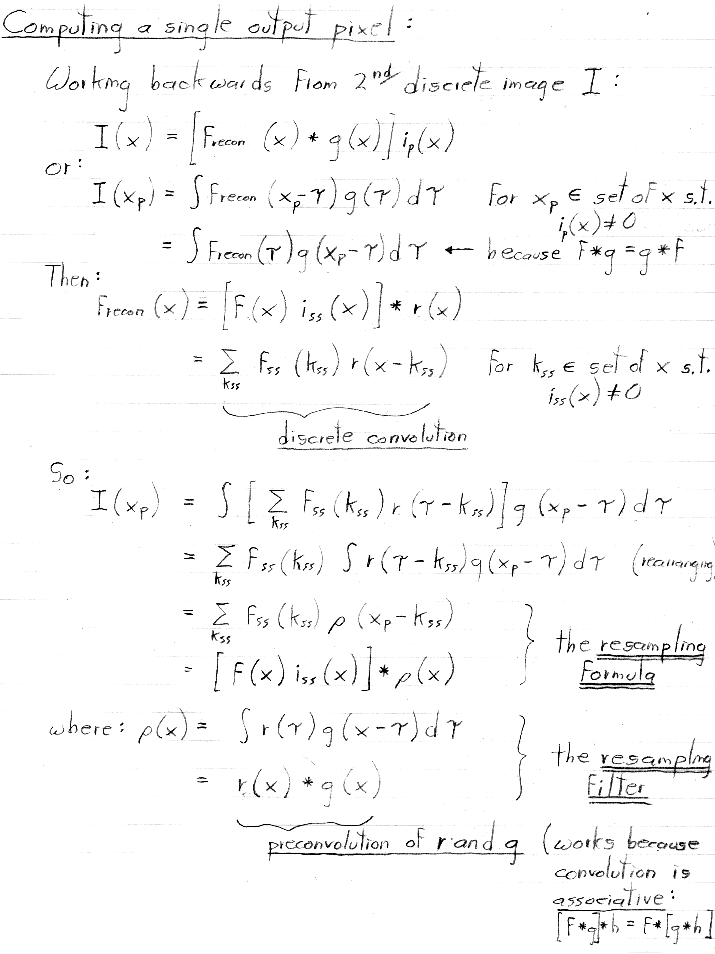

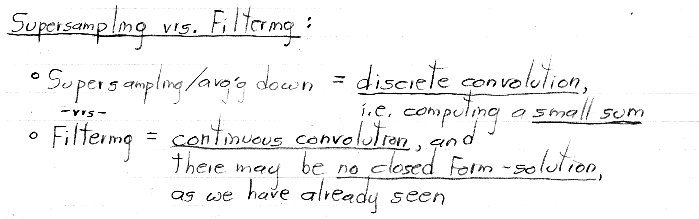

- Supersampling followed by resampling

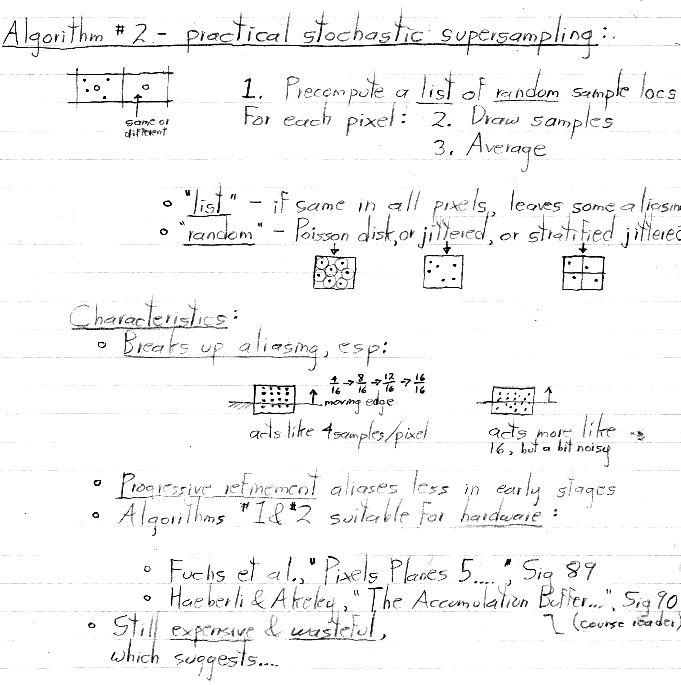

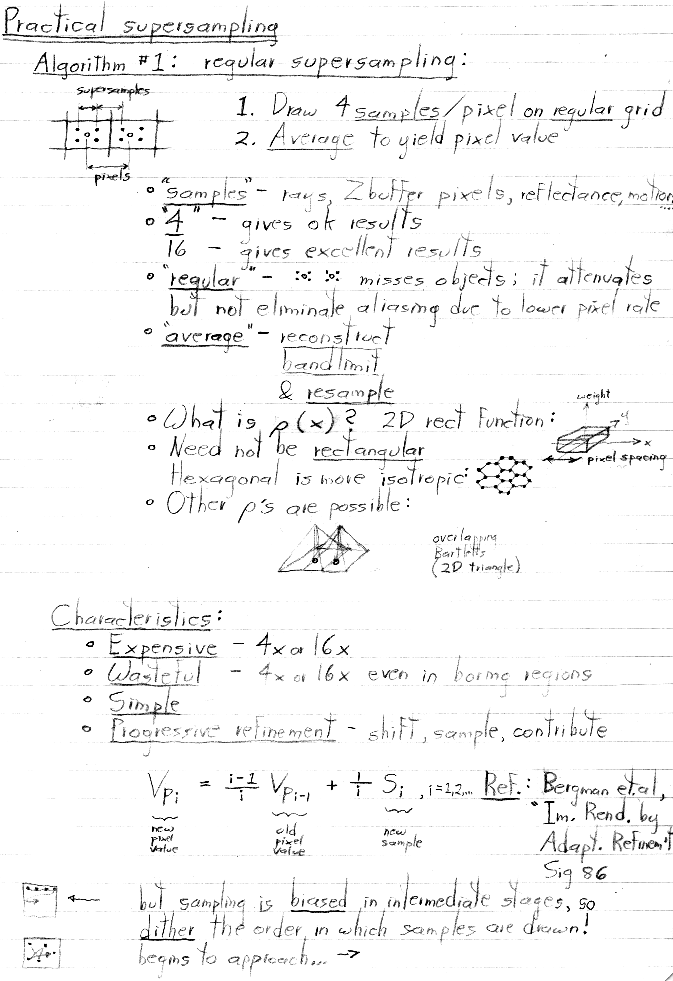

- Practical supersampling
Press here for Part II of this lecture.
For a frequency domain analysis of supersampling, see H.O. #10.
Press here for an
image demonstrating supersampling patterns,
and here for an
