Global illumination (part III)

CS 348B - Computer Graphics: Image Synthesis Techniques
Spring Quarter, 1996
Marc Levoy
Lecture notes for Thursday, May 23
Handout #30

Table of contents:

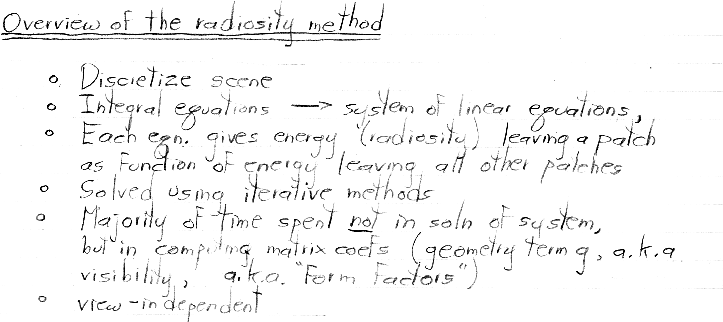

• Overview of the radiosity method

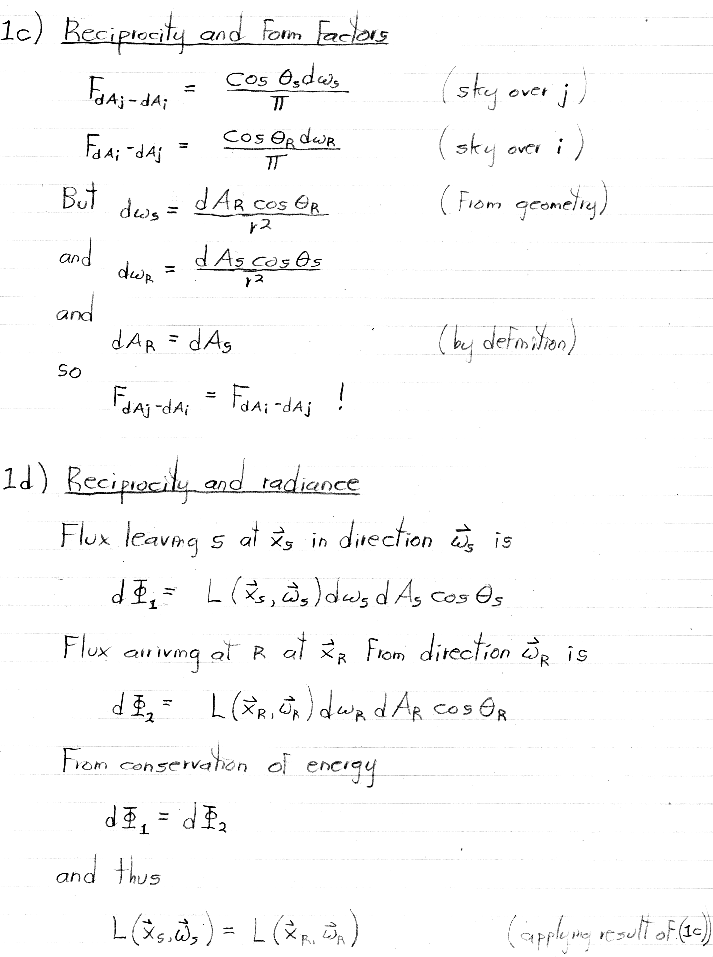

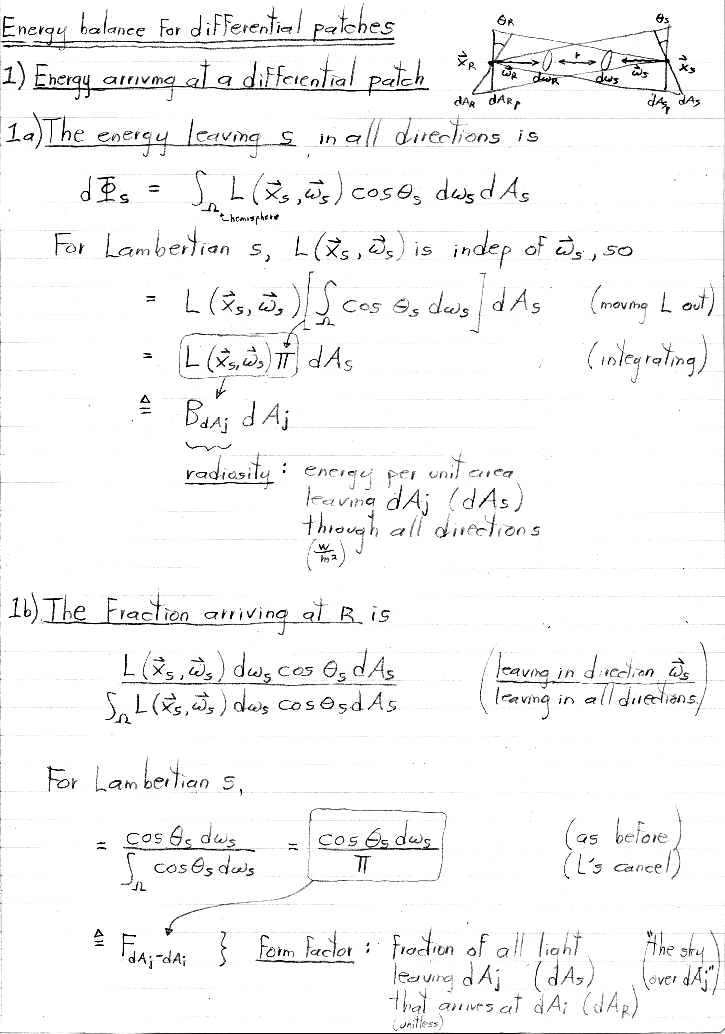

• Energy balance for differential patches
  • Energy arriving at a differential patch

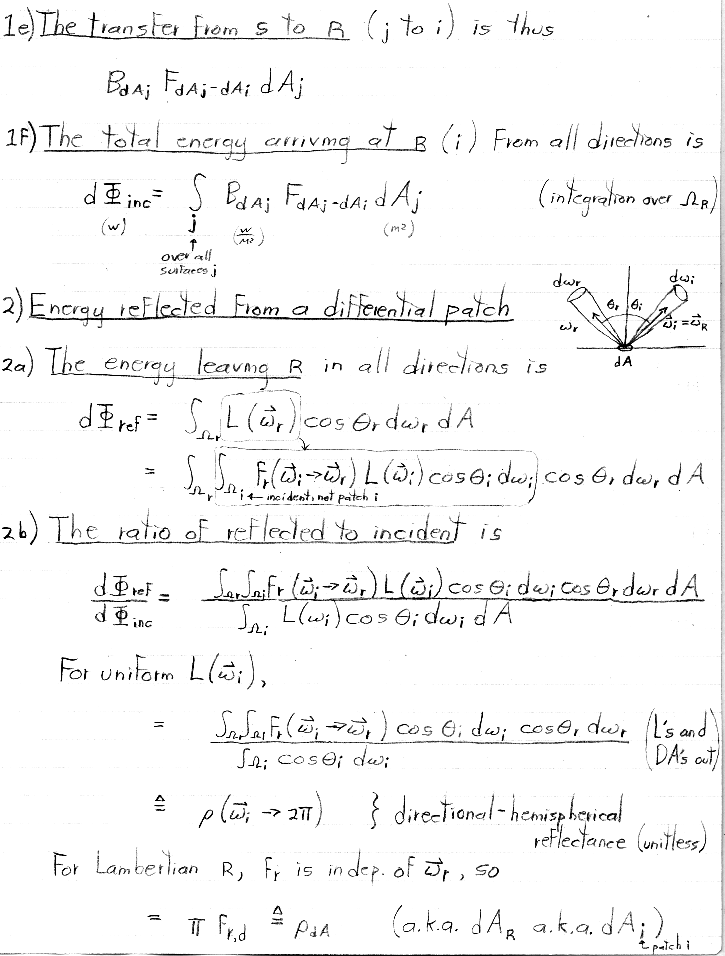

  • Energy reflected from a differential patch

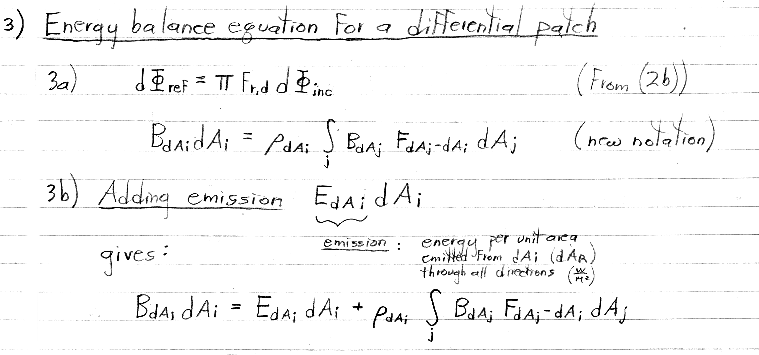

  • Energy balance equation for a differential patch

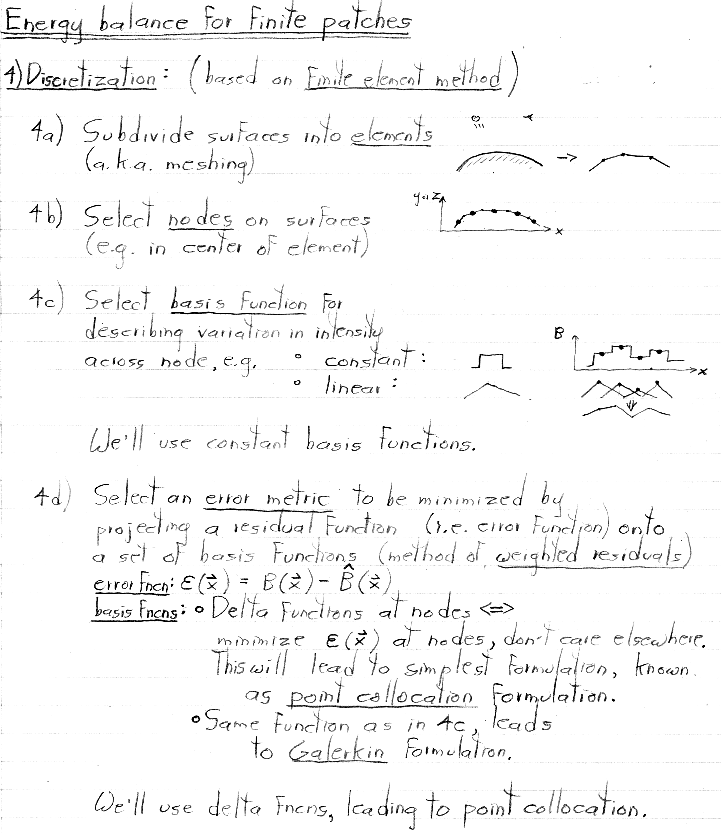

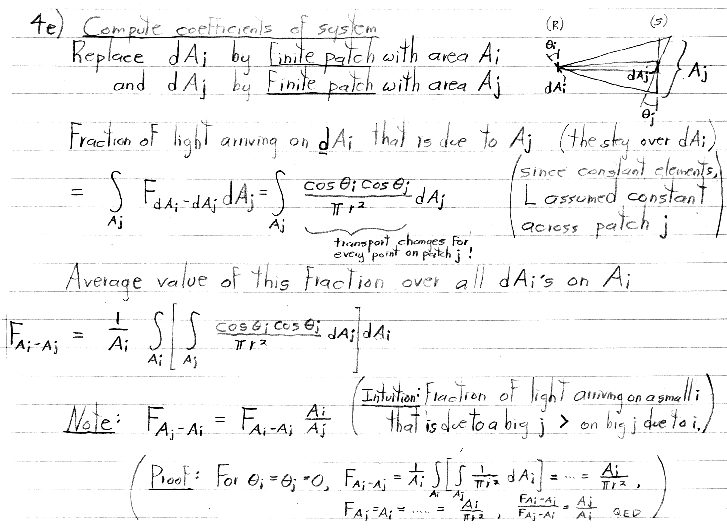

• Energy balance for finite patches
  • Discretization
  • The radiosity equation
• Solving radiosity systems
  • Matrix formulation

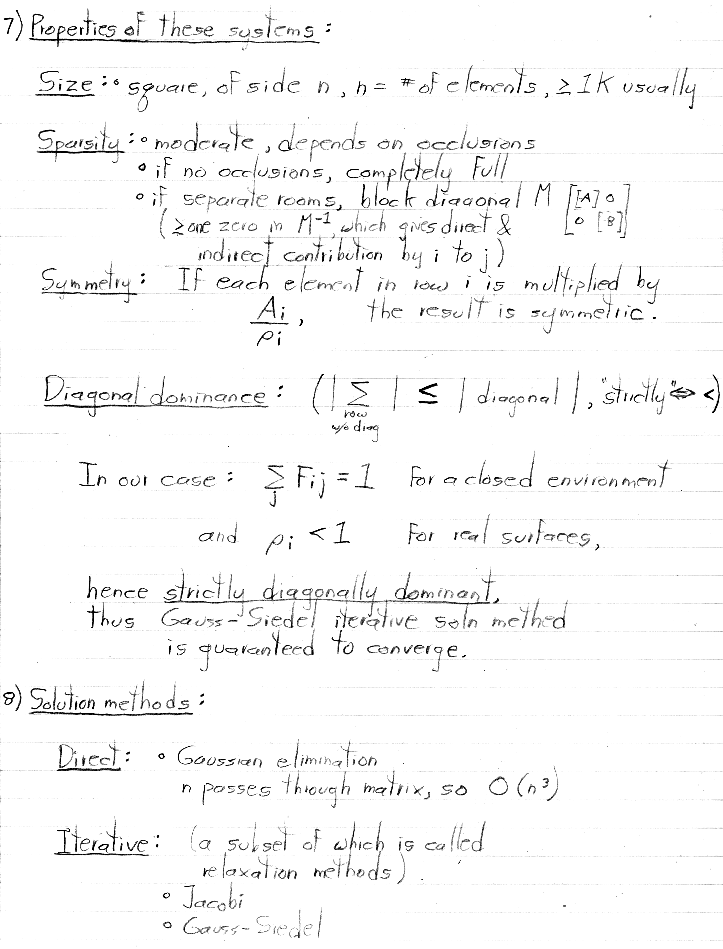

  • Properties of these systems

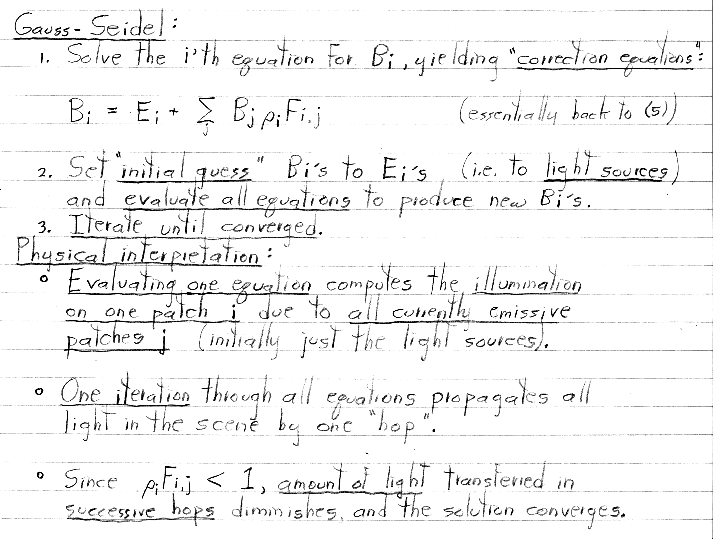

  • Solution methods

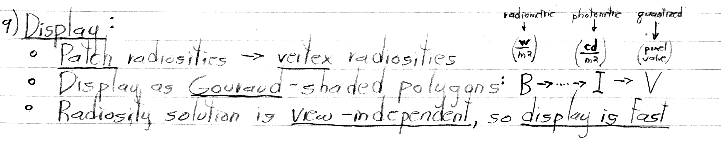

  • Display

Press here for Part I of this lecture.
Press here for Part II of this lecture.
Press here for Part IV of this lecture.
Press here for Part V of this lecture.
