Global illumination (part II)

CS 348B - Computer Graphics: Image Synthesis Techniques
Spring Quarter, 1997
Marc Levoy
Lecture notes for Tuesday, May 27
Handout #32

Table of contents:

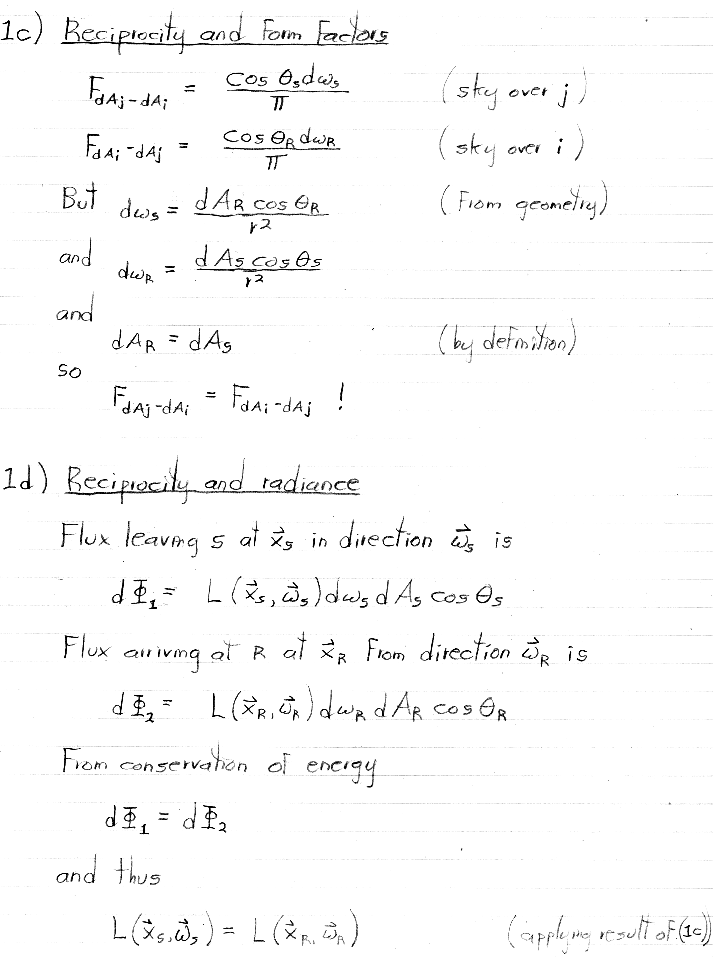

• Overview of the radiosity method
• Energy balance for differential patches

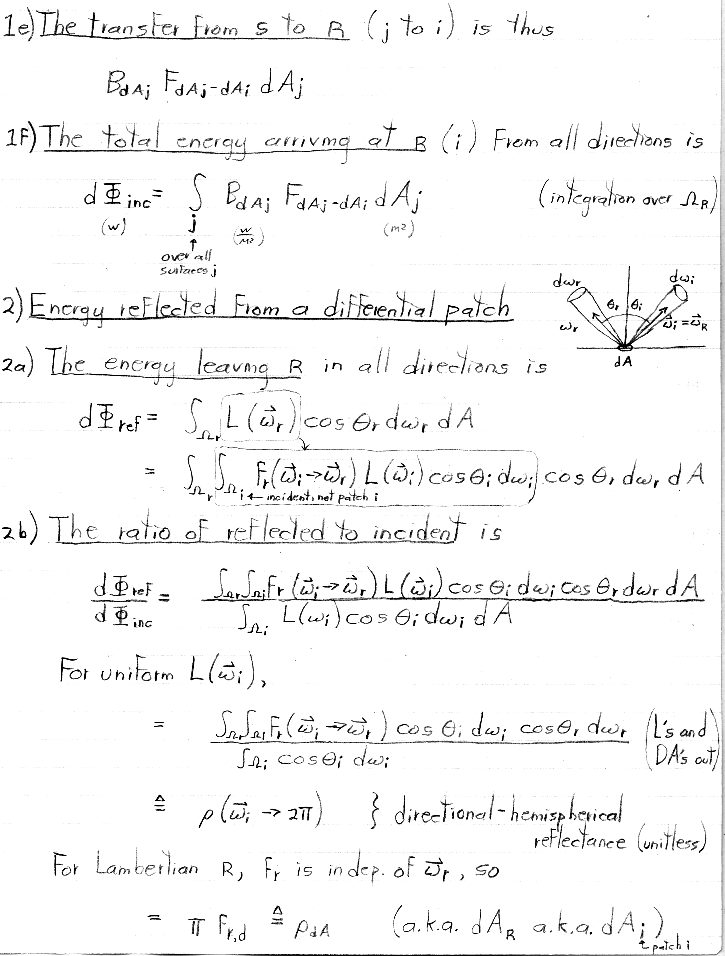

  • Energy arriving at a differential patch
  • Energy reflected from a differential patch

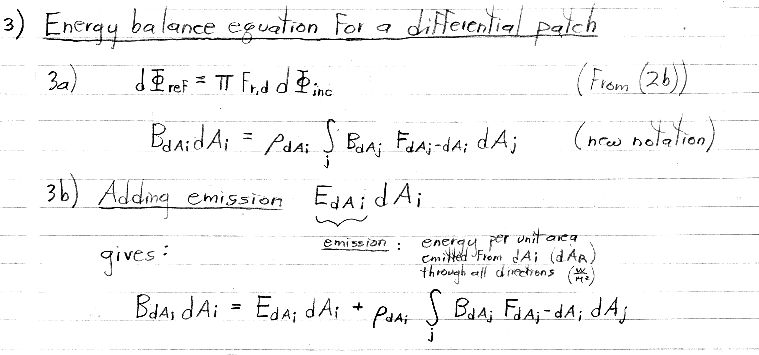

  • Energy balance equation for a differential patch

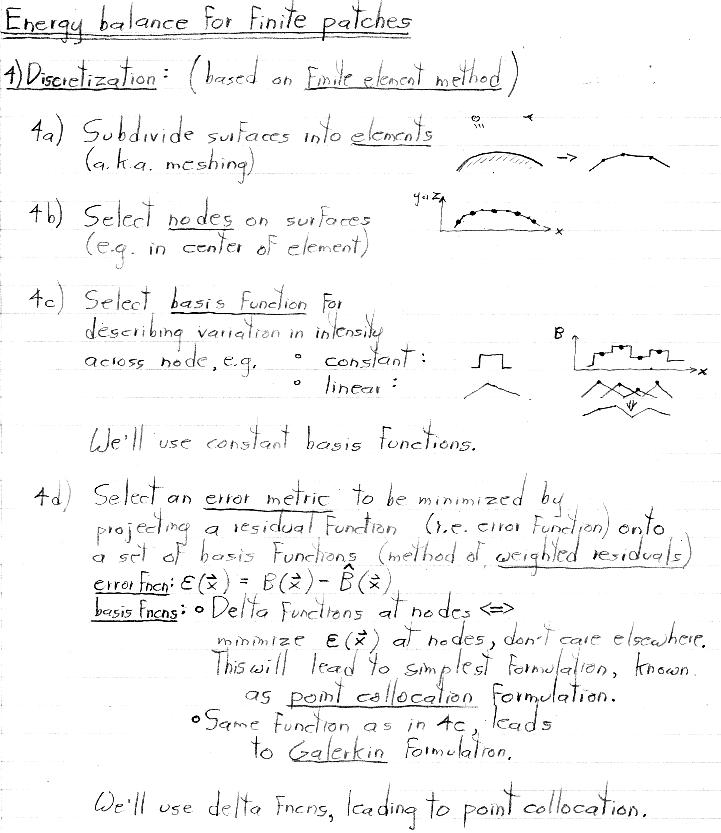

• Energy balance for finite patches

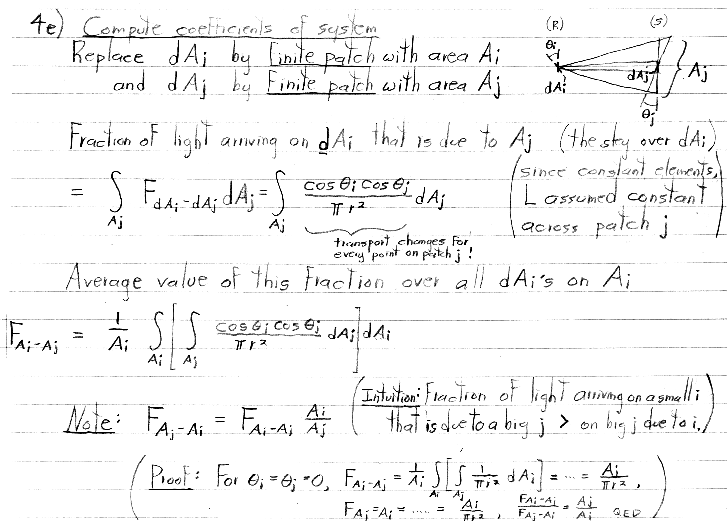

  • Discretization

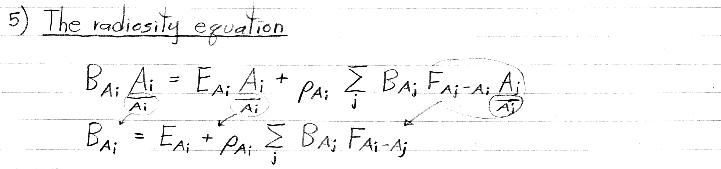

  • The radiosity equation
• Solving radiosity systems
  • Matrix formulation

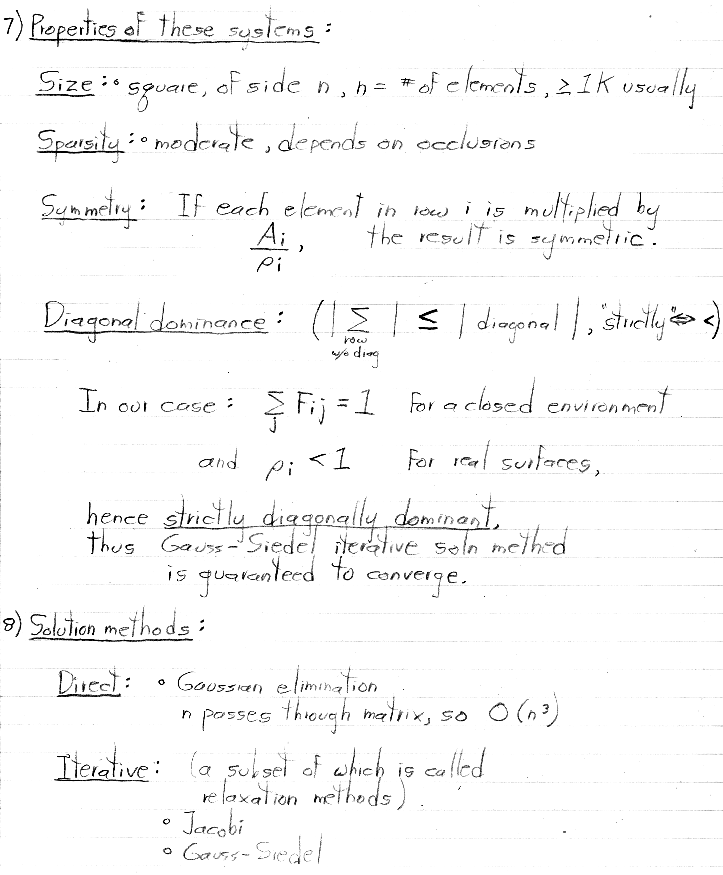

  • Properties of these systems

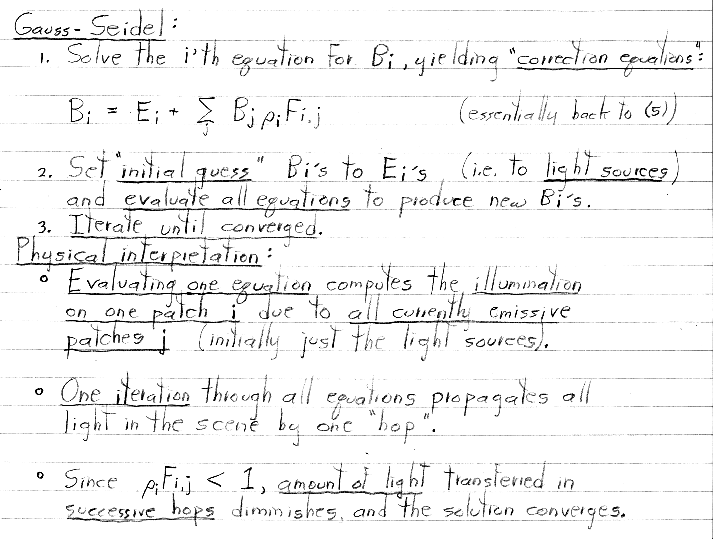

  • Solution methods
  • Display

Press here for Part I of this lecture.
Press here for Part III of this lecture.
