Monitor Scene by Steve Newman

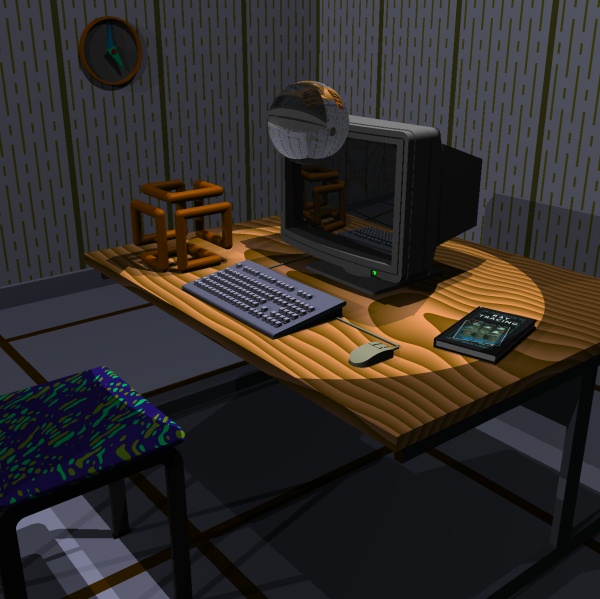

Steve's monitor scene was the winner of "render-off" for a best rendering of a scene containing an SGI monitor. Steve modeled the scene using his own CSG (Constructive Solid Geometry) modeler. The seat, table, and wall textures were procedurally generated, and the cover of the book (the textbook for the course, An Introduction to Ray Tracing, edited by Andrew Glassner) was scanned in using the course scanner. The translucent ball models the refraction of light through a glass sphere.


Monitor Scene by Steve Woo

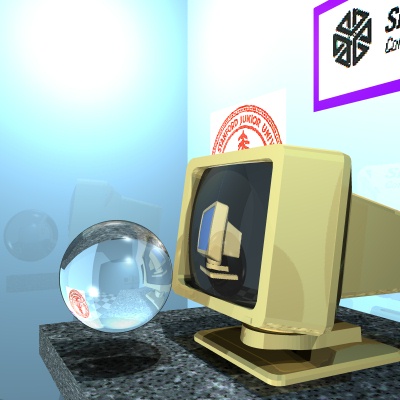

A runner-up in the "render-off", Steve assembled his scene using the modeler and scene composer provided for the course. The poster and desktop textures were scanned in with the course scanner. The image on the monitor's curved screen is a texture-mapped image of the monitor itself. The translucent ball models the refraction of light through a glass sphere.


Shuttle Balls by Eric Bosco and Deepa Francis

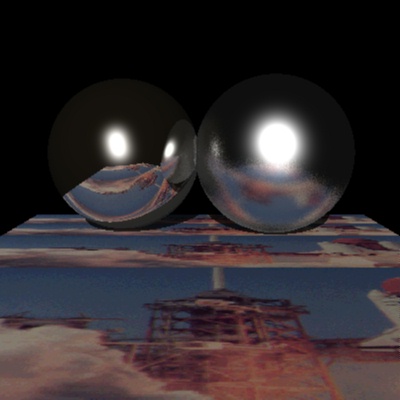

The metal balls sit atop a surface texture-mapped with a slide strip of a shuttle take-off (a tiff image obtained from the Internet). Notice that the ball on the left is perfectly reflective, while the other has an abraded appearance. They achieved this effect by casting multiple rays off of the surface of the ball in directions close to the angle of perfect reflection. The average result of these rays is a blurring of the reflected image.


Chess Set by Robert Tobler

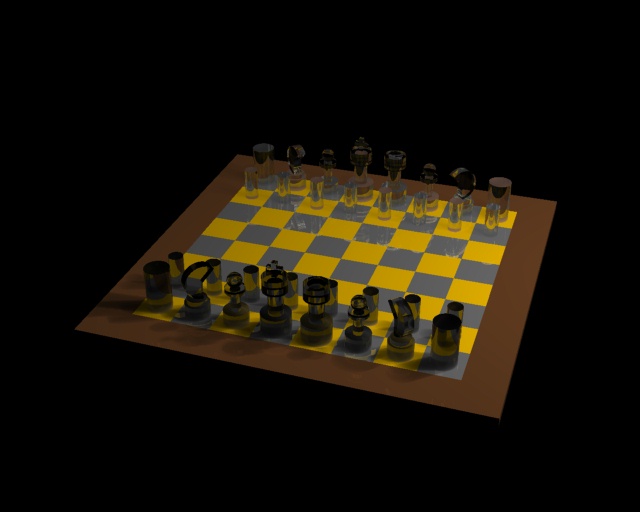

Robert modeled this scene using his own CSG (Constructive Solid Geometry) modeler. Note the translucency and refractiveness of the chess pieces as well as the reflectiveness of the metallic squares on the chessboard.


Three Spots by Anne Eagle and Chet Erez

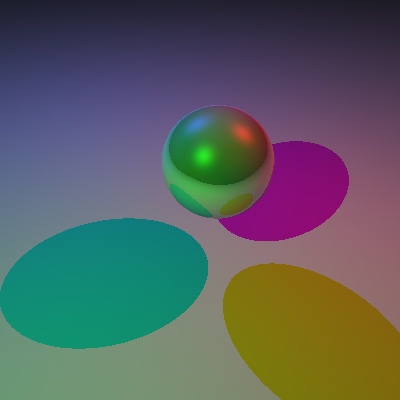

This simple scene neatly demonstrates the idea of subtractive colors. The steel ball is suspended above a white plane and illuminated by red, green, and blue point light sources. Where the light sources are all unoccluded, their colors mix on the plane in proportion to their distances from the plane. On the other hand, the shadows indicate a mixture of only two colors, since one of the light sources is occluded. The results are cyan, magenta, and yellow, the complements of red, green and blue, respectively. Note that these are the same subtractive colors used in printing technology.
