Physical Layout

The room is located in the Gates Building basement, room B23.

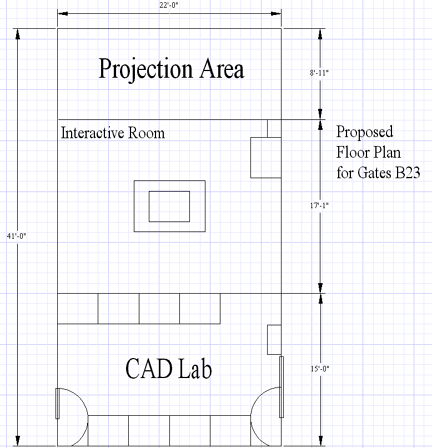

The dimensions of the room are 41' x 22'. We have segmented the room into three parts: CAD Lab, the room, and a projector area leaving approximately 22' x 19' (roughly the same size as Gates 392 conference room.)

For more general equipment layout after the summer 2000 reconstruction:

(Historical) For a more general equipment layout:
