Visibility III: ray tracing

CS 248 - Introduction to Computer Graphics
Autumn Quarter, 2003
Marc Levoy
Lecture notes for Tuesday, November 18 (finished on November 20)

Table of contents:

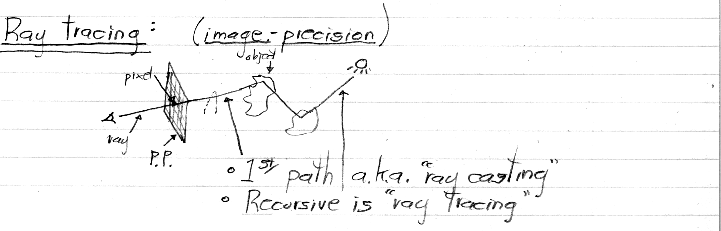

• Ray tracing

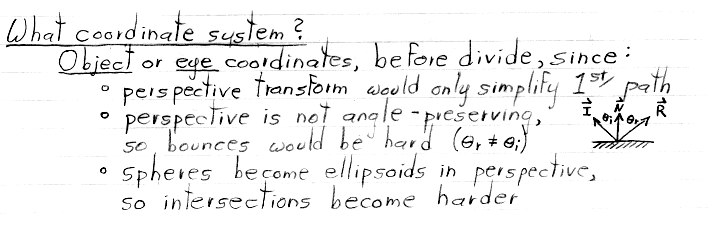

  • What coordinate system?

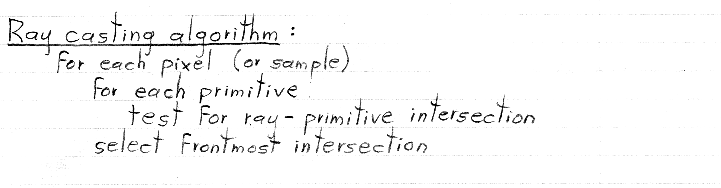

  • Ray casting algorithm

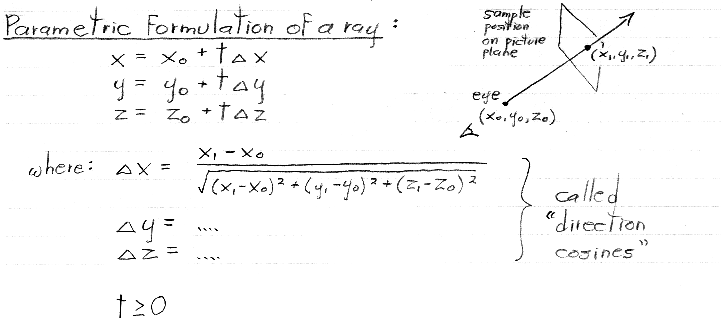

  • Parametric formulation of a ray
  • Ray-sphere intersection

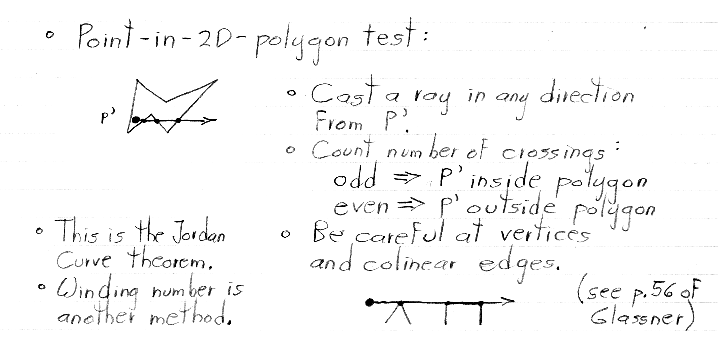

  • Ray-polygon intersection

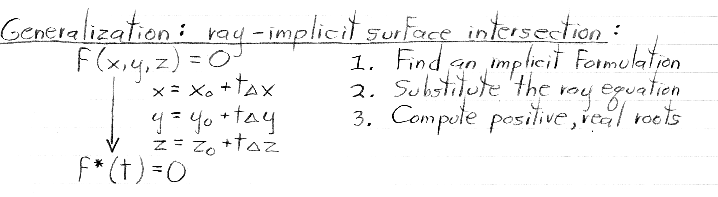

  • Generalization: ray-implicit surface intersection

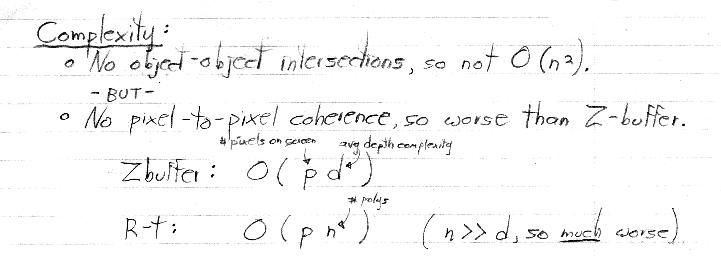

  • Complexity

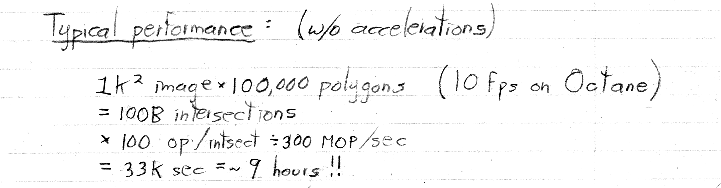

  • Typical performance
  • Other issues
