Sampling theory, aliasing

CS 248 - Introduction to Computer Graphics
Autumn Quarter, 2003
Marc Levoy
Lecture notes for Thursday, October 9 (taped October 3)

Table of contents:

• Sampling and reconstruction

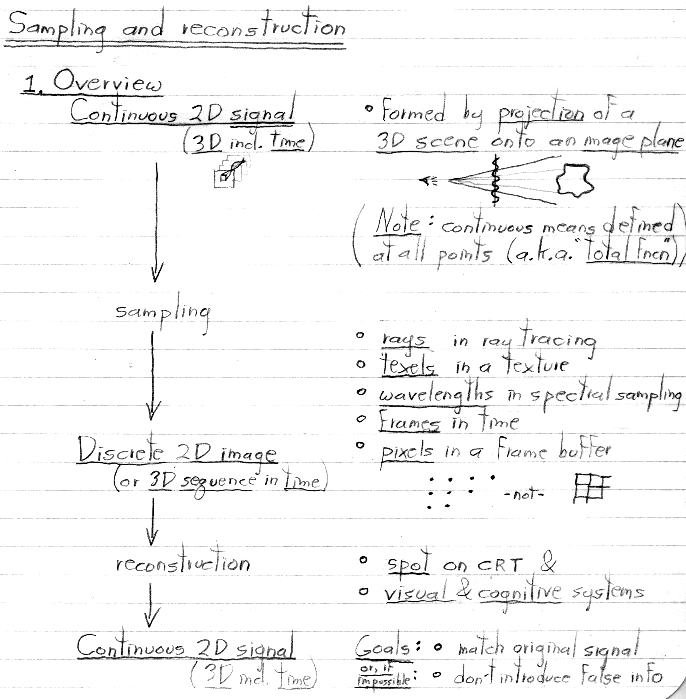

  1. Overview

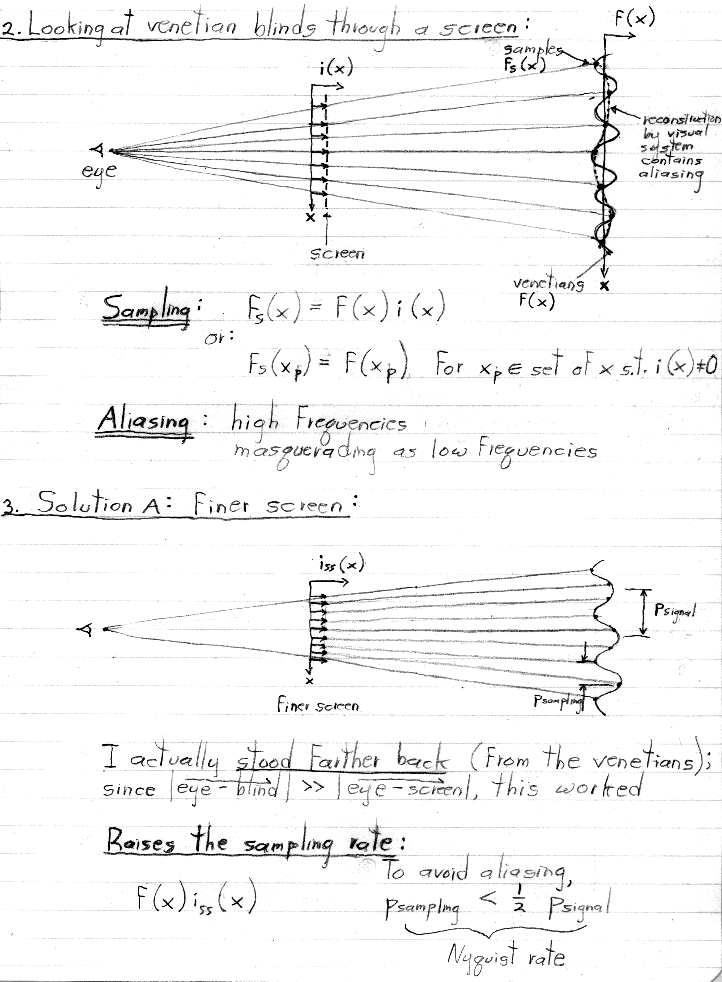

  2. Looking at venetian blinds through a screen (sampling)
  3. Solution A: finer screen (raising the sampling rate)

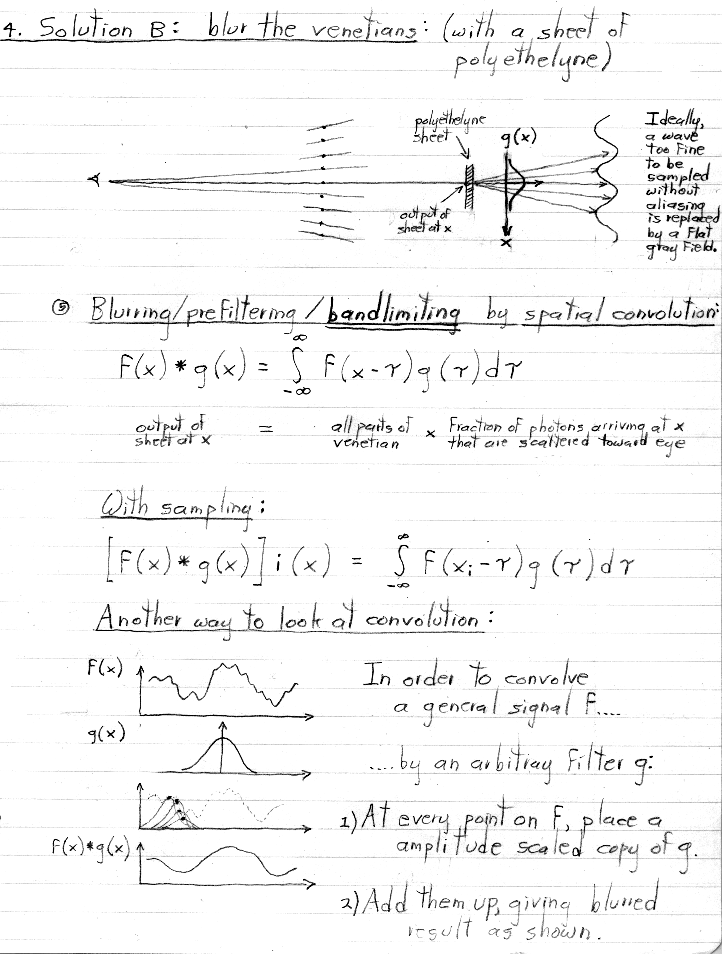

  4. Solution B: blur the venetians (bandlimiting)
  5. Example of convolution: rect function
     Facts about convolution

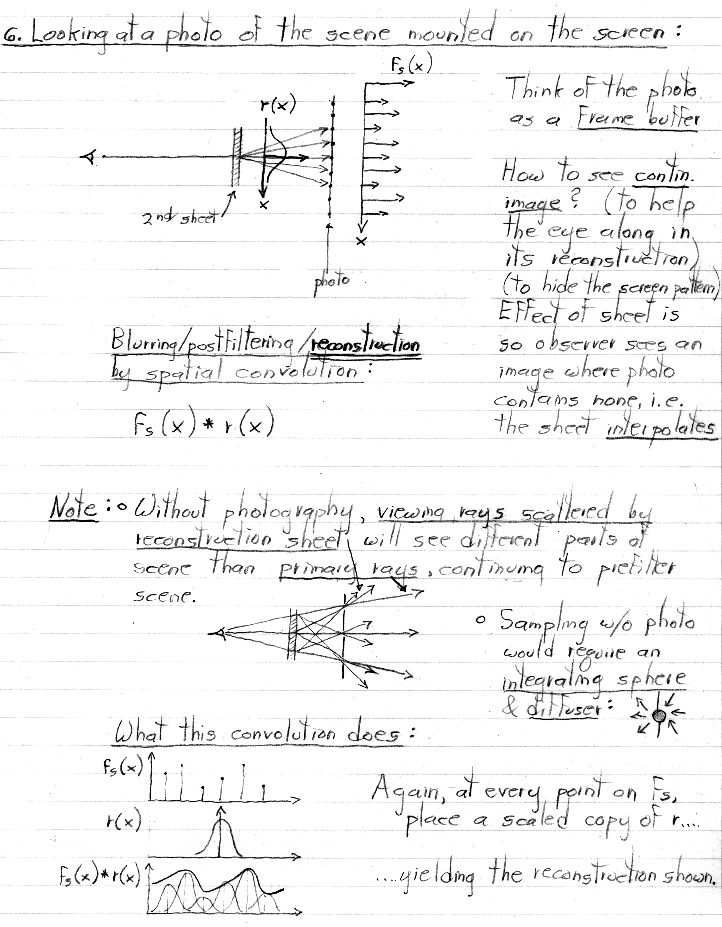

  6. Looking at a photo of the scene mounted on the screen (reconstruction)

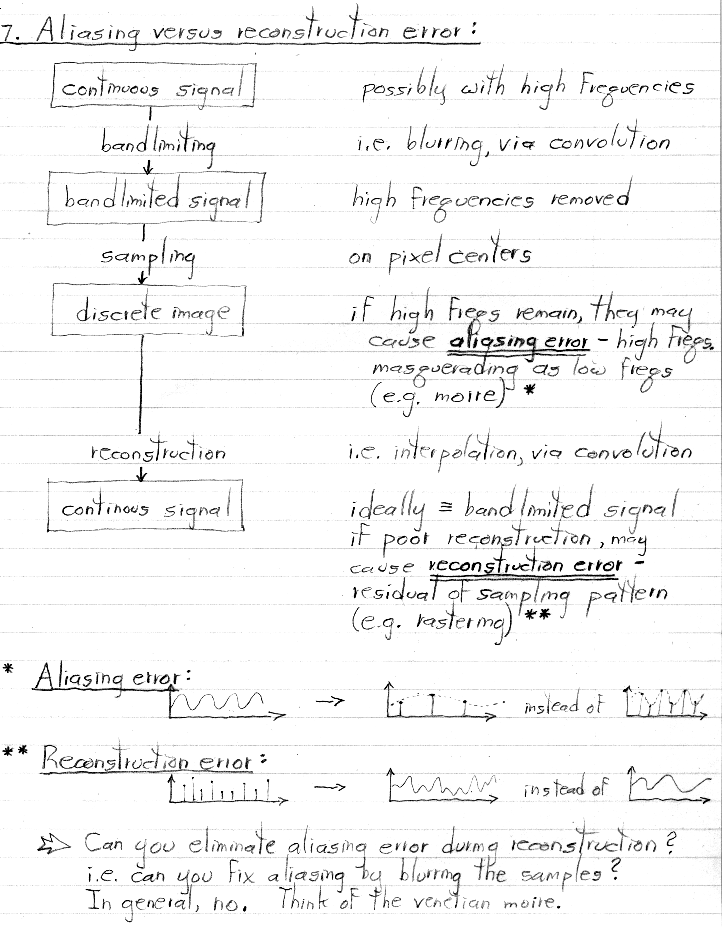

  7. Aliasing versus reconstruction error
• Application to computer graphics

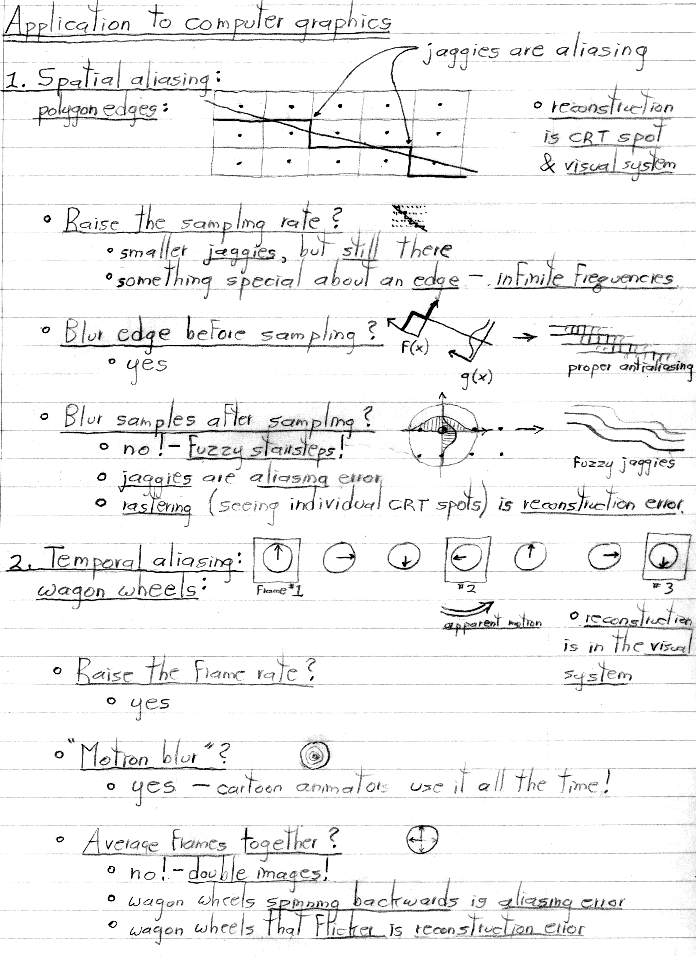

  1. Spatial aliasing: polygon edges
  2. Temporal aliasing: wagon wheels

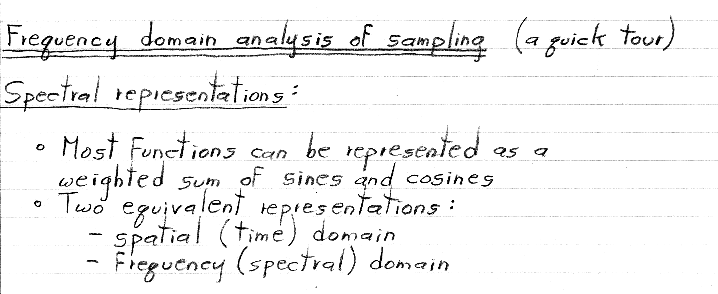

• Frequency domain analysis of sampling (a quick tour)
  • Spectral representations

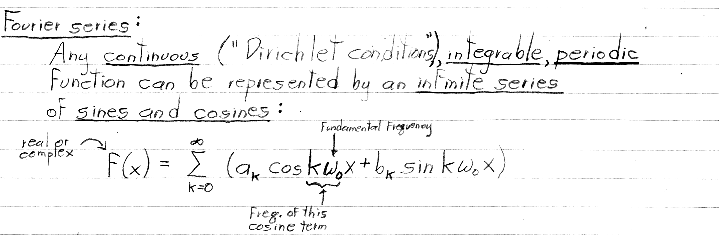

  • Fourier series: periodic functions

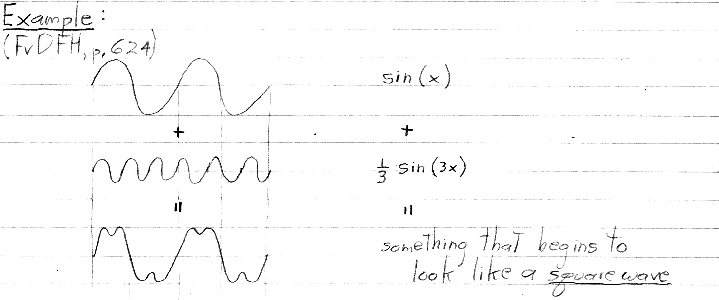

  • Example: sum of sines

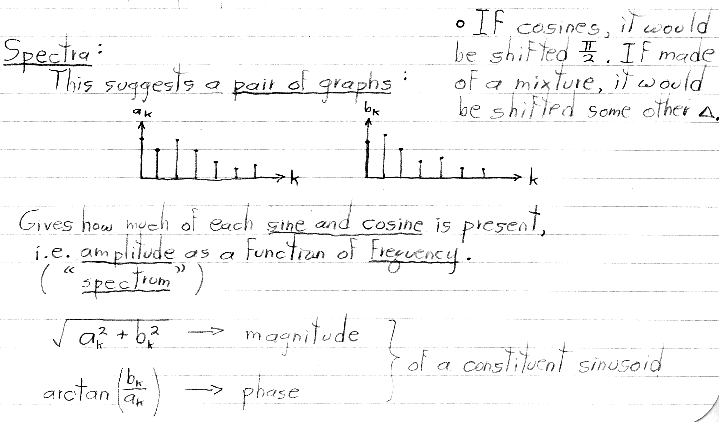

  • Spectra: a pair of graphs

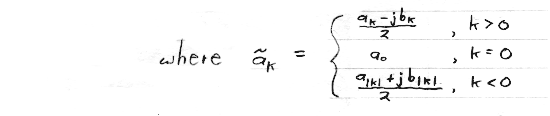

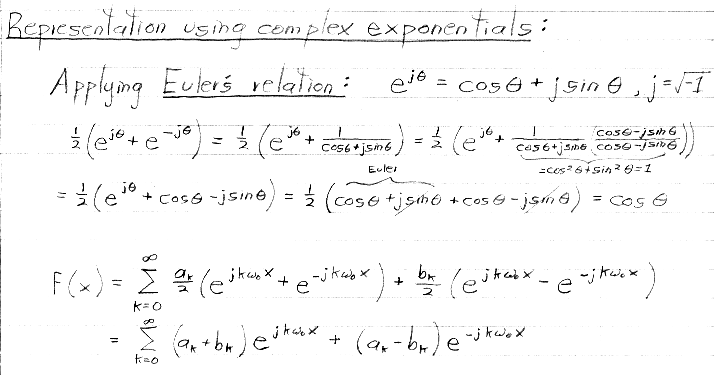

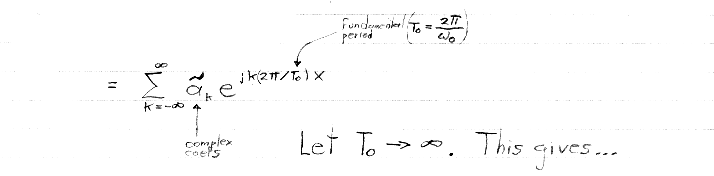

  • Representation using complex exponentials

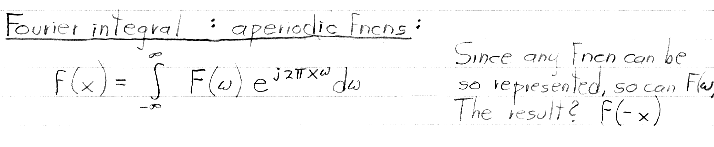

  • Fourier integral: aperiodic functions
  • Fourier transform
