Aliasing and antialiasing

CS 248 - Introduction to Computer Graphics
Autumn Quarter, 2005
Marc Levoy
Lecture notes for Tuesday, October 11

Table of contents:

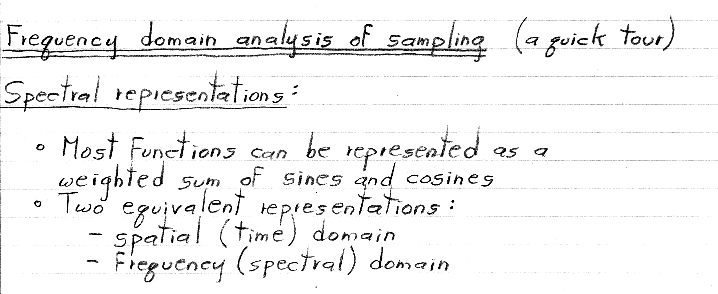

• Frequency domain analysis of sampling (a quick tour)
  • Spectral representations
  • Fourier series: periodic functions

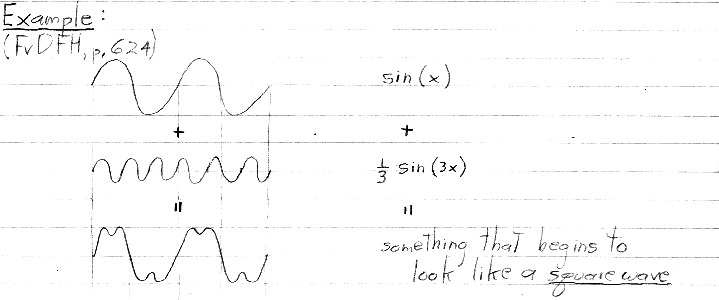

  • Example: sum of sines
  • Spectra: a pair of graphs

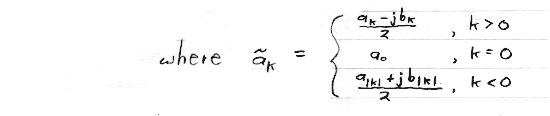

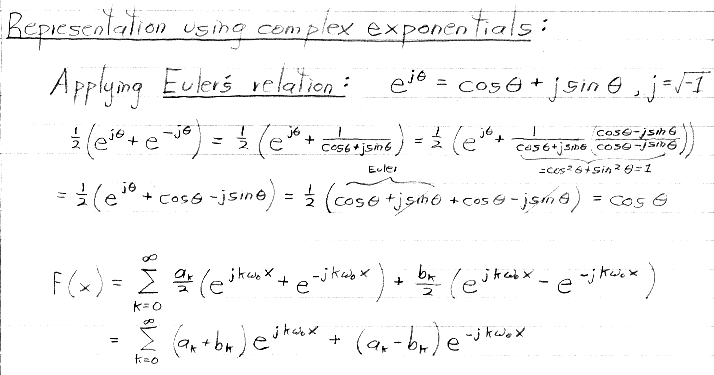

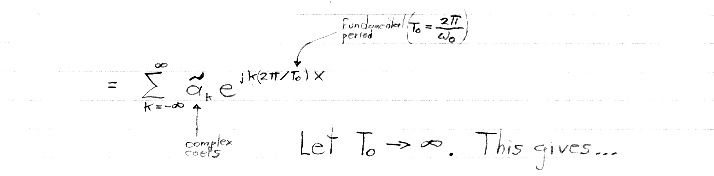

  • Representation using complex exponentials

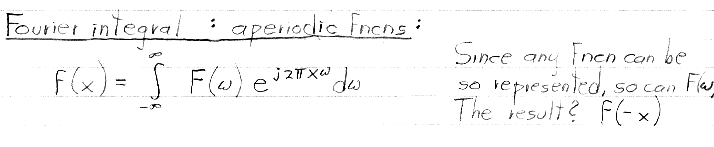

  • Fourier integral: aperiodic functions

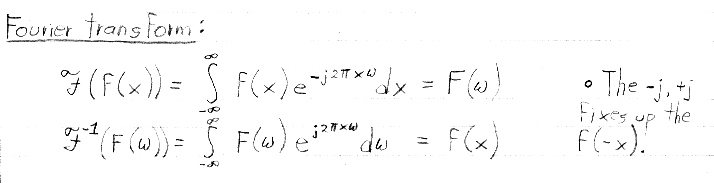

  • Fourier transform

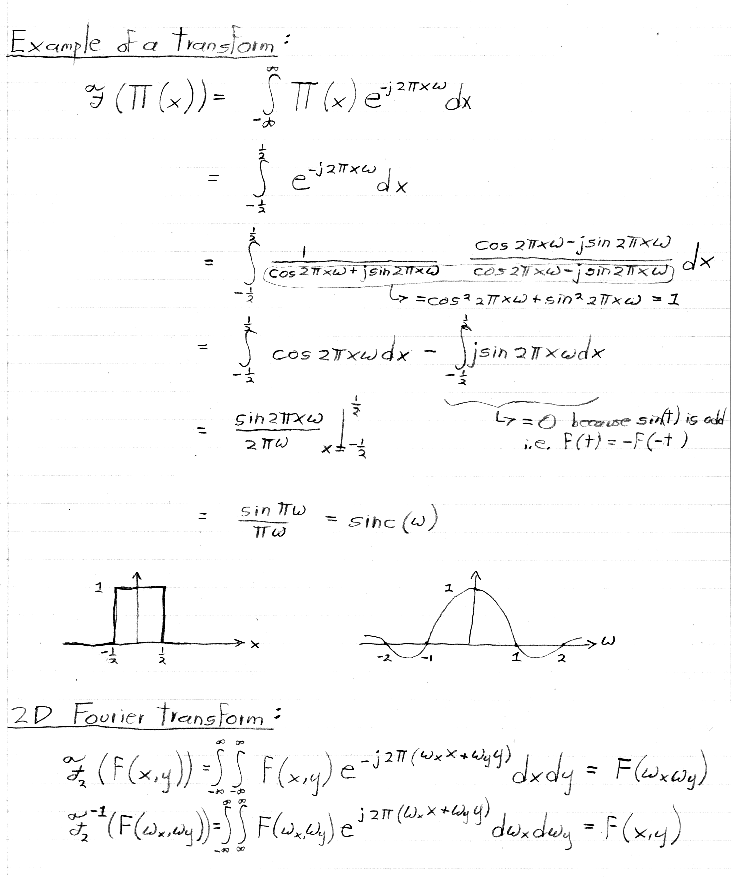

  • Example of a transform: box and sinc

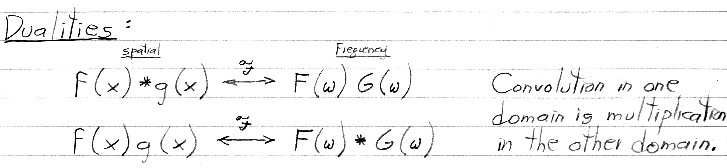

  • Dualities

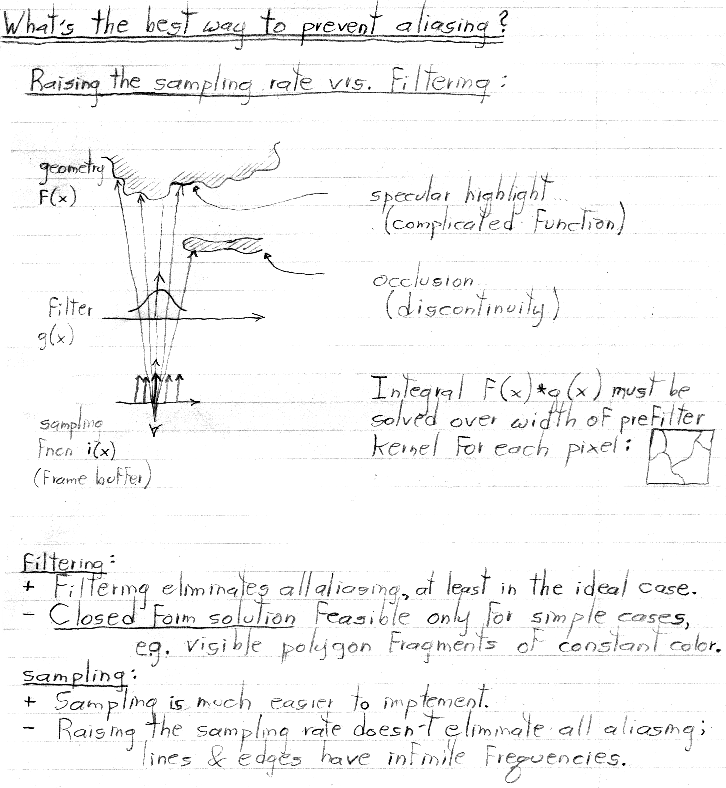

• What's the best way to prevent aliasing?
  • Raising the sampling rate versus filtering

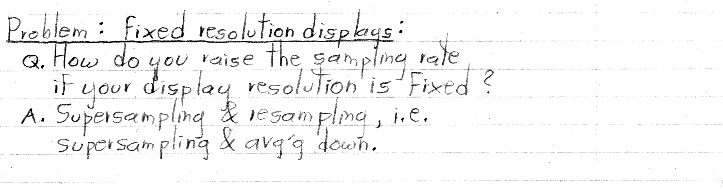

  • Problem: fixed resolution displays
