## Nonlinear Raytracing: MiragesGaurav GargNiloy J. Mitra |
---|

The aim of this project was to make a non-linear ray tracer for rays moving in non-constant medium(for details check our project proposal). The main reason behind such perception is the fact that our brain assumes light travelling in straight lines even when its actually following a curved path.

In the first part of the project, we implemented *a voxel based ray
tracer* which basically models the nonlinear effects using piecewise linear
segments. Refraction and total internal reflection were considered only at the
faces of the voxels. Refractive Index(RI) was assumed to be constant inside each
voxel. Refractive index variations were modelled to render the different
phenomenon usually observed in nature due to nonlinear ray paths.

In the second part, we derived *an analytical expression* for the path
traced by a ray given the refractive index as a function of space. We solved
this differential equation under a specific model of variation of the refractive
index(namely linearly with height) and used it for speeding up our non-linear
ray tracer(in most cases we got speed up of a factor of 2-3).

All the images use a similar model. The horizontal plane is a texture mapped
heightfield. The heightfield is enclosed by a cylinder which also has texture
mapped to its inside surface. There is a also a point light source.

Below are some of the effects we rendered which are best viewed as animated
sequence(*click on the images to run*).

This is another animation that shows a similar effect in which we move closer and down at the same time. The mirage becomes more pronounced as we start approaching grazing angles. |

In this case, we show a effect commonly known as *towering.* This is
phenomenon by which common objects appears stretched/squashed due to
non-constant RI. Such processes are observable in nature particularly during
sunrise/sunset.

Constant RI |
RI Increases(linearly) with height |
RI Decreases(linearly) with height |
---|

The series tries to model the phenomenon when utility poles appear to become submerged in water with increasing distance from the observer. The effect is caused by the two-image inferior mirage. Note here our horizon is very clearly defined and hence the submerging effect is not very convincing. However, the elongation of poles is aparrent at a distance.

Constant RI |
RI Increases(linearly) with height |
RI Decreases(linearly) with height |
---|

These images were rendered to show which part of the plane and the cylinder
gets wraped due to bending of light. Notice that as refractive index(RI)
increases with height the textures on the plane seems to move forward while it
moves backwards if the RI varies the other way. Internal reflection is also
observed(middle two images). Note in the third image from the left, we get an
effect similar to *superior mirages* due to which we can see the green
strip(extreme top-right) which is not visible with constant RI. Further, since
this image has higher RI gradient we see more internal reflection. Finally, we
need smaller voxel size, else we get minor artifacts as shown in the figure.

Constant RI |
RI Increases(linearly) with height |
More RI gradient |
RI Decreases(linearly) with height |
RI decreases logarithmically |
---|

We assume that the ray hits the origin at a given angle of incidence(Θ) and
we know the refractive index inside the slab as a function of position. The
situation is illustrated in the following figure:

Now we have the following two equations at any point(x,y):

- y'= dy/dx= cot(Φ)
- n(0,0)*sin(Θ)=n(x,y)*sin(Φ) (Snell's law)

We solve the special case when the refractive index varies linearly with
height, i.e. n(x,y)=n(0,0)+m*y. Under this condition we can solve the above
differential equation and get the closed form solution as:

where, n1= n(0,0); k=n1*sin(Θ); z=n1+my

We also need the length of the curve to find out the time taken to traverse
the path(which is used to find the closest intersection in case of multiple
objects). For this case the length comes out to be:

where, n1= n(0,0); k=n1*sin(Θ); z=n1+my

Both these formula holds only if there is some linear variation in refractive index(m should not be equal to zero).

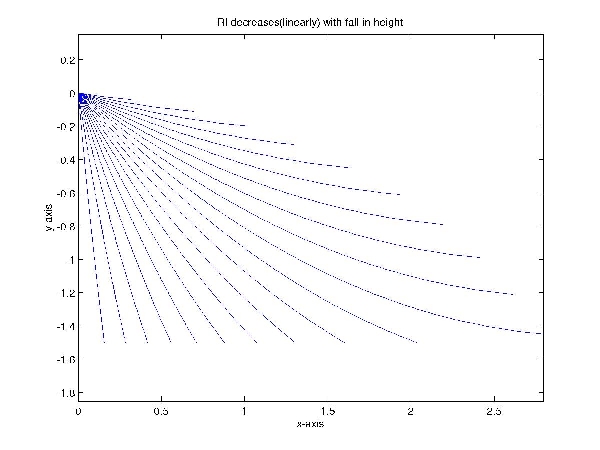

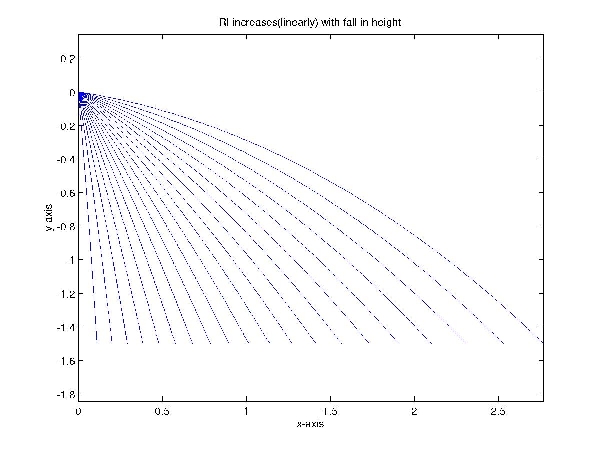

These paths were plotted using matlab under increasing and decreasing the
refractive index. We have plotted the path traced by the rays till it reaches a
line(y=-1.5) or till we reach a point where internal reflection takes place. The
path traced by the rays after suffering internal reflection can be obtained by
the same equations after a suitable translation/rotation of the axis.

Below are the images we got using this analytical approach. The left image is
a rendering of the scene where the refractive index is constant. The black
region in the middle image indicates the area where our analytical method is
used to compute the solution. The rest of the image is generated using voxel
based ray tracer. The final image(the right image) shows the rendering we got
using this hybrid approach. Theses results are more accurate than the piecewise
approximation while at the same time is much faster since we do not have to
approximate the curved ray path by tiny ray segments.

Constant RI |
Part of the image rendered by voxel-approx. |
Rendering using hybrid approach |
---|

Here is the source code used for rendering these images.

2. "A note on ray tracing mirages", Musgrave, F.K.; Berger, M. IEEE Computer Graphics and Applications, pp 10-12, Nov. 1990, Vol. 10, Issue 6.

3. Color and Light in Nature, David K. Lynch and William Livingston, Cambridge.

4. "Ray Tracing in Non-COnstant Media", J. Stam, E Languenou, Rendering Techniques '96, Proceedings of the 7th Eurographics Workshop on Rendering, Porto, Portugal, June 17-19, 1996.

5. "Mirages", A. B. Fraser, W. H. Mach, Scientific American, pp 102-111, January 1976.

6. "The Topology of Mirages", W. Tape, Scientific American, pp 125-130, June 1985.
