CS178 Assignment 7 - Night and Color
Yosemite at Night. Photo by Jesse Levinson.
Taking photographs at night presents unique
challenges. Exposure times must be very long, so
hand-holding the camera is out of the question. However,
with a steady place to rest the camera (which need not be
a tripod), and a long exposure, the light gathering
ability of your camera can greatly exceed the human eye,
allowing you to capture a shot of something you could not
normally see, such as a forest at night, a faraway galaxy,
or even a rainbow cast by moonlight.
- Requirement 1: An Outdoor Night Scene of
Head outside, find somewhere stable to
rest your camera, and photograph a picturesque natural
night scene. We want to see absolutely no motion blur
due to camera movement in your shot. You may wish to
use the self-timer mode on your camera to avoid the
problem of moving the camera when you press the
shutter button. As this is a night scene, your
exposure time should be at least one or two
seconds. For this nature requirement, you may
want to find a landscape illuminated by the sky and/or
moon and/or artificial lights, but the subject should
be nature (and not artificial objects). It's okay if
there is an incidental amount of manmade stuff in your
scene, but your photograph should be all or almost all
natural, and the subject should clearly be
- Requirement 2: An Outdoor Night Scene of
As in requirement 1, take a night
photograph of at least one or two seconds exposure
with absolutely no motion blur, but this time your
subject should be architecture. Example subjects
include bridges, city streets, buildings, cityscapes,
etc. Reminder: your photo should be well exposed, so
we can see detail in the buildings and other objects
-- don't make it so dark that all we can see are the
- Requirement 3: Painting with Light
long-exposure photo in which you use a light source as
if it were a painter's brush. You should move the
light around to create the scene you want over the
course of the exposure. You can do this by making a
moving light source the subject as in our example, or
by pointing the light at the parts of the scene you
wish to be illuminated over the course of the
exposure. For example, you may want to walk around in
your scene during the exposure with a hand-held camera
flash, firing it in places you would like to be
illuminated. In general, you may use any light source
you have available to you: bike lights, LEDs, candles,
flashlights, or even your cell phone screen will all
cast light into the scene in different ways.
- Requirement 4: Light and Color
colored object and a strongly colored light source
(such as an LED) such that the color of the object as
photographed by your digital camera looks dramatically
different under that light source versus under normal
lighting. Submit two photographs demonstrating this
effect - one under normal lighting and one under
colored lighting. Include in each photograph a white
(neutral-colored) object as a comparison.
To make the two photographs comparable, turn off
auto white balance on your camera. In your
comments, describe the object and the colored
light. Remember that this effect will depend not only
on the apparent colors of the objects and light, but
on their underlying spectra. Since you don't know
these spectra, you may have to experiment a bit to
find a good example. The effect will be strongest when
using a light source with a narrow spectrum, such as
the sodium lamps you find in parking lots or the LEDs
on your electronics.
- Requirement 5: Color as a pictorial
a photo that is primarily monochromatic
(i.e. grayscale or a single desaturated color like
grayish-brown) that has one or more elements sharing a
single common bright color. For example, a
black-and-white photo with three red apples. You can
achieve the effect with any combination of setup and
Photoshop, meaning that your original photo doesn't
have to satisfy the requirement as long as you use
Photoshop to selectively saturate everything that's
not your color accent. Be creative here, and have fun
with this one! Make sure you state in your comments
how you set up the shot and what, if anything, you did
in Photoshop to achieve the effect. (You don't need to
upload the pre-Photoshop shot, and again, you don't
necessarily even have to use Photoshop if you can
achieve the effect without it.)
Upload your photos and add comments. Upload your photos
using the Google+ account you created in the first week to a public
Google+ album titled "CS178 Assignment 7 - Night and Color"
and submit your assignment on Vela.
Write at least two short paragraphs below each of your
photos explaining how you arranged the scene, how you took the photo,
what relevant camera settings you used and why, any image processing
done to the photograph afterwards, and most importantly, which
requirement the photo covers.
As usual, we've posted an
solution to this assignment to let you know what we expect. For
additional inspiration, you may want to peruse the best CS178
photographs (as selected by the TA's and instructor)
you do not need to meet the assignment requirements in the same way
as these solutions do - in fact, you should challenge yourself to
come up with creative, unique compositions. There are plenty of
possibilities out there. Surprise us!
Please remember that the photographs that you submit for each
assignment must be taken by you specifically for this course. Do not
reuse old photographs that you may have laying around, even if they
perfectly meet one of the requirements!
If you have questions or comments about the photos we used in the
example solution, feel free to add them as comments below the
corresponding photograph in Picasa Web, or to email us.
Here are a few more questions on color theory to help you better understand the topic. There are also some questions on lighting, the topic for this week. As background for question 1, it
will help to read over this paper about color vision in horses:
paper (click on
"PDF" under Full Text to read the paper). You don't need to read it
closely, and there are lots of terms from biology which we don't
expect you to know, but you should understand the figures.
Horses are dichromats. They have two different types of color
receptors with two different sensitivity functions. Roughly speaking,
Figure 1 shows the spectral sensitivity of horses for one type of
receptor, Figure 2 shows spectral sensitivity for both types of
receptors, Figure 3 is a simulation of what Newton's color wheel looks
like to a horse, and Figure 4 is a simulation of what some real scenes
look like to a horse. For more intuition, you may also want to view
the CS178 applet that shows
of spectral colors for various visual systems, including that of
- Problem 1a. True or False: Any two objects that appear
the same color to horses will also appear the same to humans.
- Problem 1b. True or False: Any two objects that appear
the same color to humans (metamers) will also appear the same to
- Problem 1c. True or False: Ignoring brightness, a horse
can only see two different colors, while a human can see an
infinite number of colors.
- Problem 1d. True or False: If you take a color
photograph of a scene, and show it to a horse on your laptop
screen, will it look like the real scene to the horse? That is,
for the horse, will the colors of different objects in the
photograph appear to match the colors of those objects in
- Problem 2: Camera Color Sensitivity. The pixels in most
digital cameras are covered with red, green, or blue filters,
arranged in some pattern. If one replaced some filters of each
color with yellow filters, what would happen? (check all the
- a) The color measurement space of the camera, akin to the
color response space of an animal, would change from
three-dimensional to four-dimensional
- b) The camera would be able to see pure wavelengths not lying on the visible spectrum.
- c) The camera would be more sensitive to dim yellow objects.
- d) The camera's ability to capture color would not be affected.

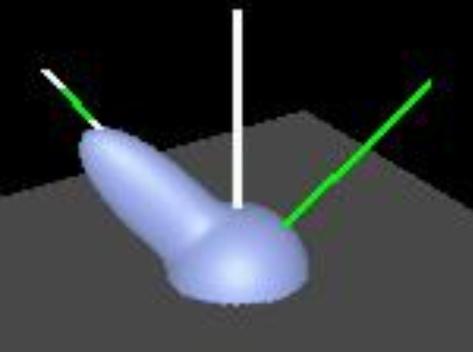

- Problem 3: Goniometric diagrams. Which statement best describes the material with the goniometric diagram shown below? The vertical white line represents the normal vector, and the line on the right side of the normal vector represents the direction of incoming light.
- a) slightly diffuse with a specular highlight
- b) a perfect mirror
- c) completely diffuse
- d) retroreflective
The peak in the direction of reflection indicates a specular material. The lobe at the bottom is from diffuse reflection in all directions. A perfect mirror would have no diffuse reflections, and a completely diffuse material would have no specular peak. Retroreflective materials would reflect light back along the direction of the light source.
- Problem 4: Flash. Your flash exposes your subject correctly at 10 ft with an aperture of f/16. To maintain this correct exposure using the same flash, you should use an aperture of ________ if your subject is 20 ft away. Circle the best answer.
- a) f/4
- b) f/8
- c) f/16
- d) f/22
- Problem 5: Illumination. True or False: If you point a camera at a uniformly illuminated white reflector card that fills the field of view, if you move the camera closer to the card without changing its exposure, the image brightens.
False. While the solid angle above each point on the card that is subtended by a pixel in the camera increases (in fact quadratically) when you move the camera closer to the card, the number of points contained in that portion of the card seen by each pixel decreases (also quadratically). These factors cancel, and there is no change in exposure.
- Problem 6: Additive vs. Subtractive Color. True or
False: Since printers operate in the subtractive color regime,
they must use the CMYK primaries.
You should follow the same rubric as the previous assignments.
Assignment Deadline: 11:59PM, Sunday, May 25, 2014
Late Deadline: 11:59PM, Tuesday, May 27, 2014
Review Deadline: 11:59PM, Sunday, June 1, 2014
Assignments are generally due on Sunday at midnight at
the end of the week in which they're assigned. This leaves
you free to start thinking about the next assignment
during your next section. Sometimes lateness is
unavoidable. In such circumstances, be sure to read the
lateness policy from
outline, or contact your TA.
Marc Levoy, Andrew Adams, and Jesse Levinson
