Viewing I: the wonders of perspective

CS 248 - Introduction to Computer Graphics
Autumn Quarter, 2001
Marc Levoy
Lecture notes for Tuesday, November 6

Table of contents:

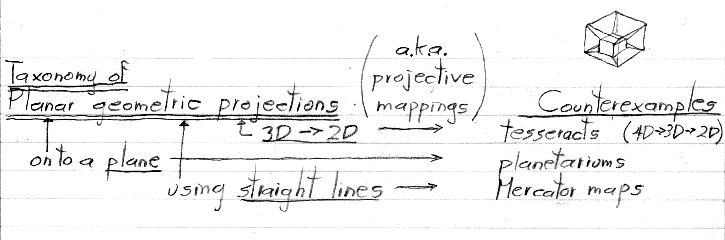

• Taxonomy of planar geometric projections
  • The invention of perspective (separate web page)

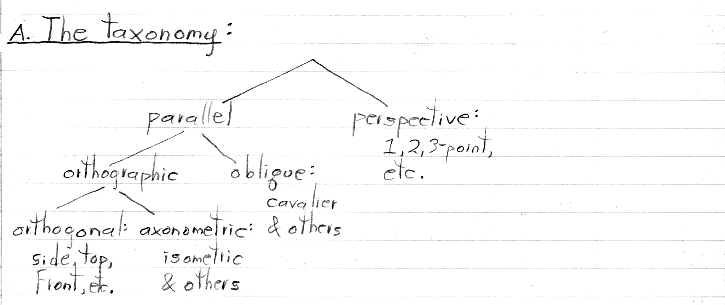

  • The taxonomy

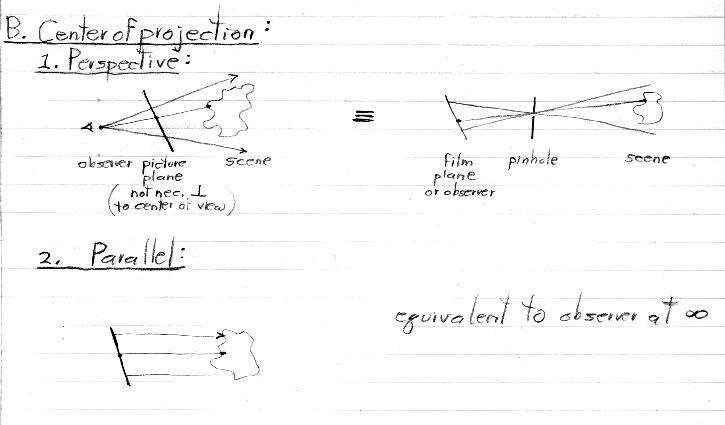

  • Center of projection

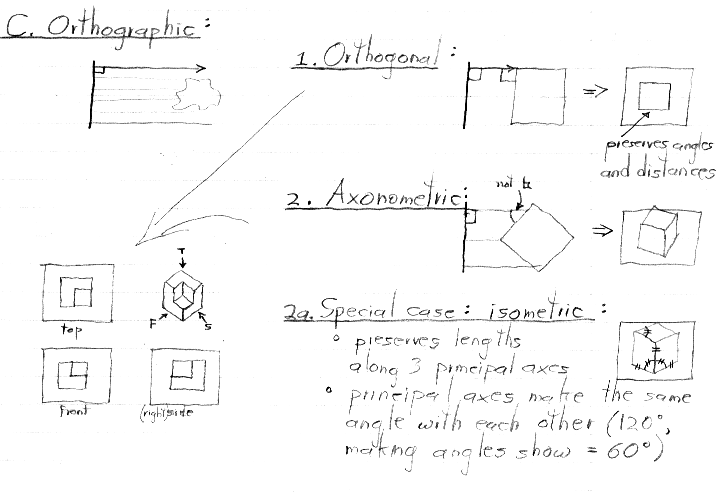

  • Orthographic views

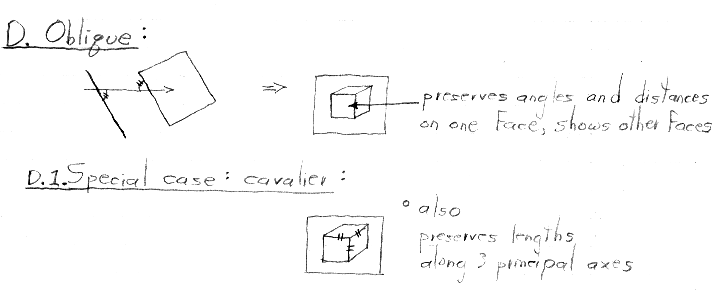

  • Oblique views
  • Perspective views
