Viewing II: the mathematics of perspective

CS 248 - Introduction to Computer Graphics
Autumn Quarter, 2001
Marc Levoy
Lecture notes for Thursday, November 8 (finished on Tuesday, November 13)

Table of contents:

• Specifying a perspective view

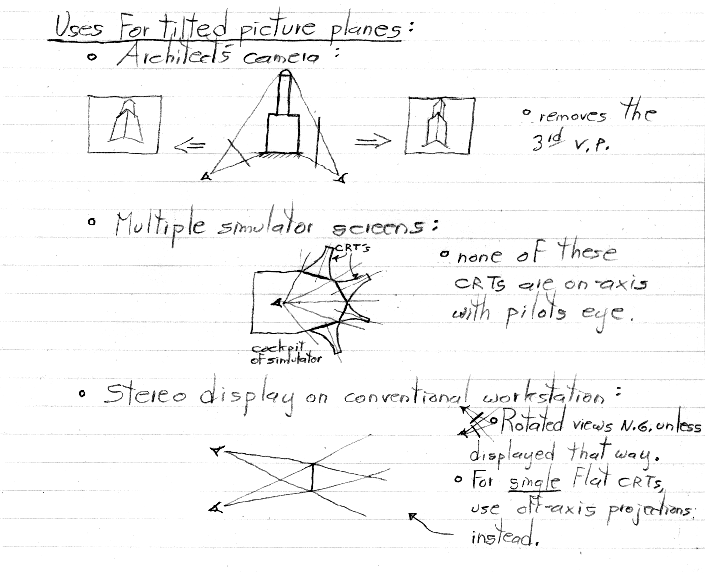

  • Problems on the use of perspective in art
  • The viewing frustum

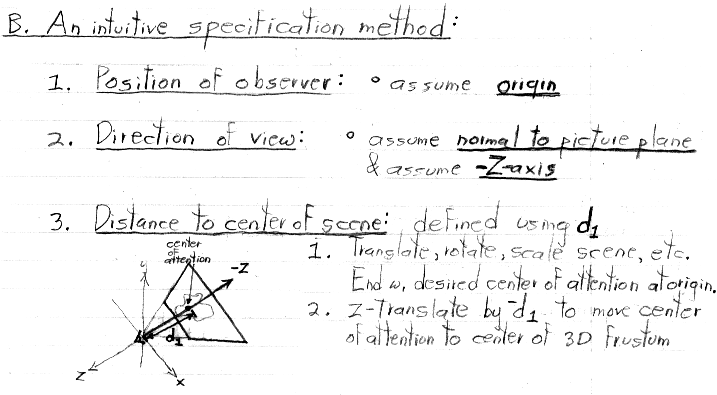

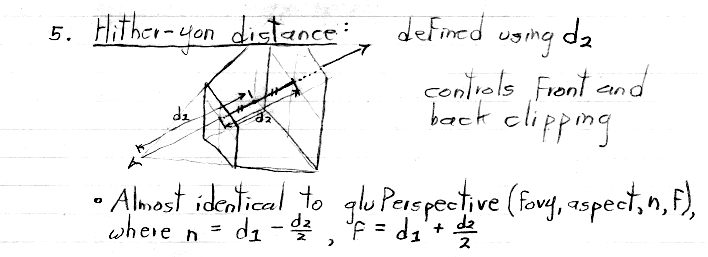

  • An intuitive specification method
  • glFrustum specification method

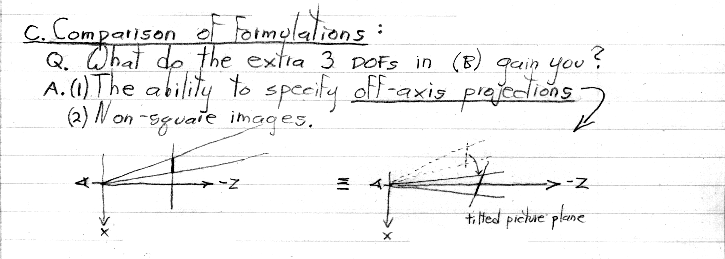

  • Comparison of formulations

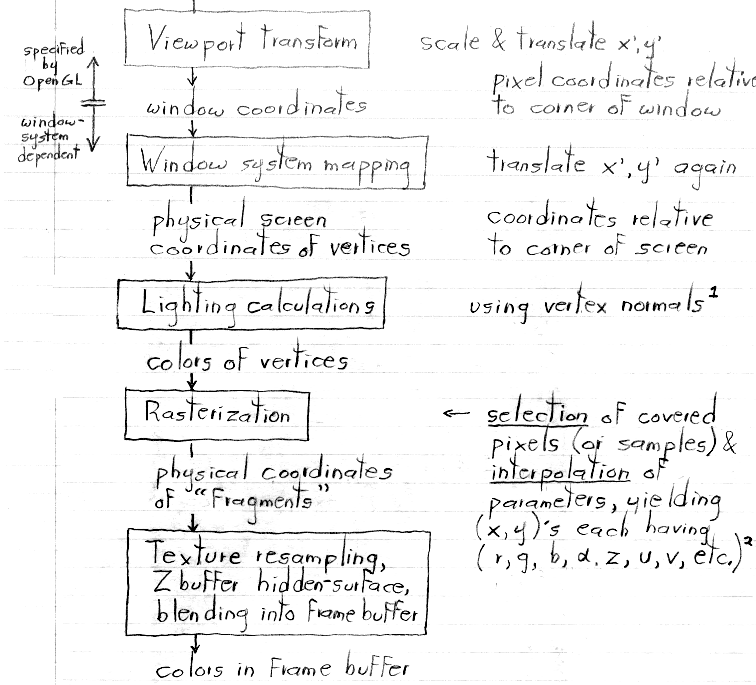

• OpenGL implementation of viewing:

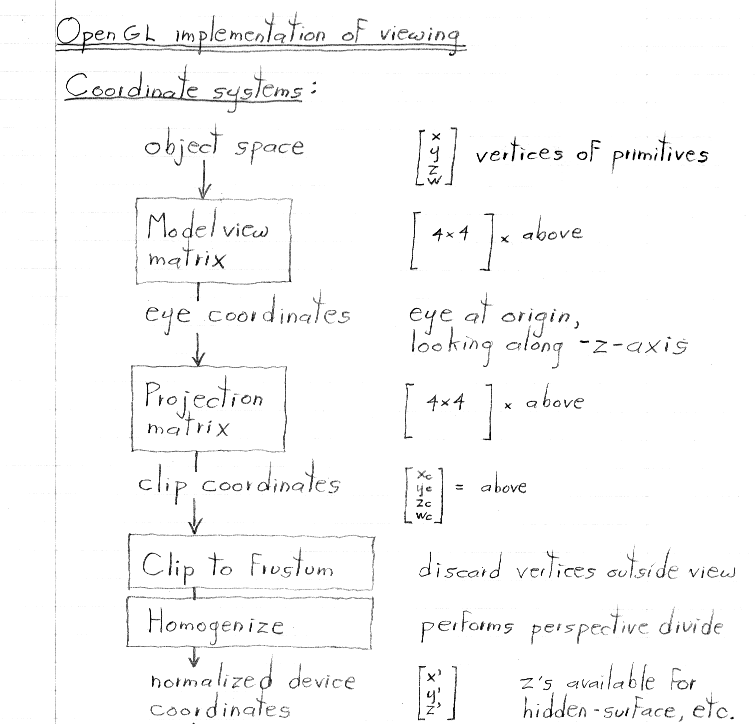

  • Coordinate systems
  • Modeling and viewing transformations

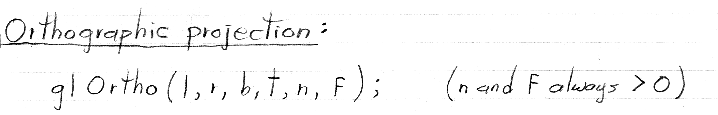

  • Orthographic projection

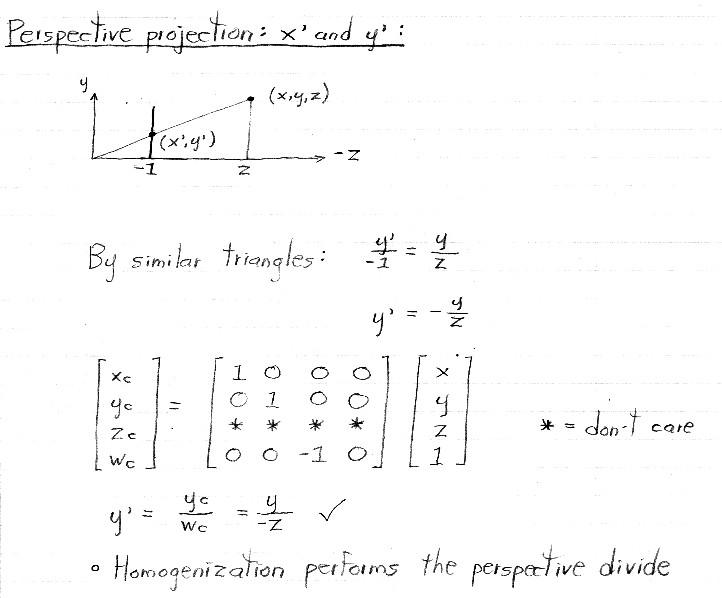

  • Perspective projection: x' and y'

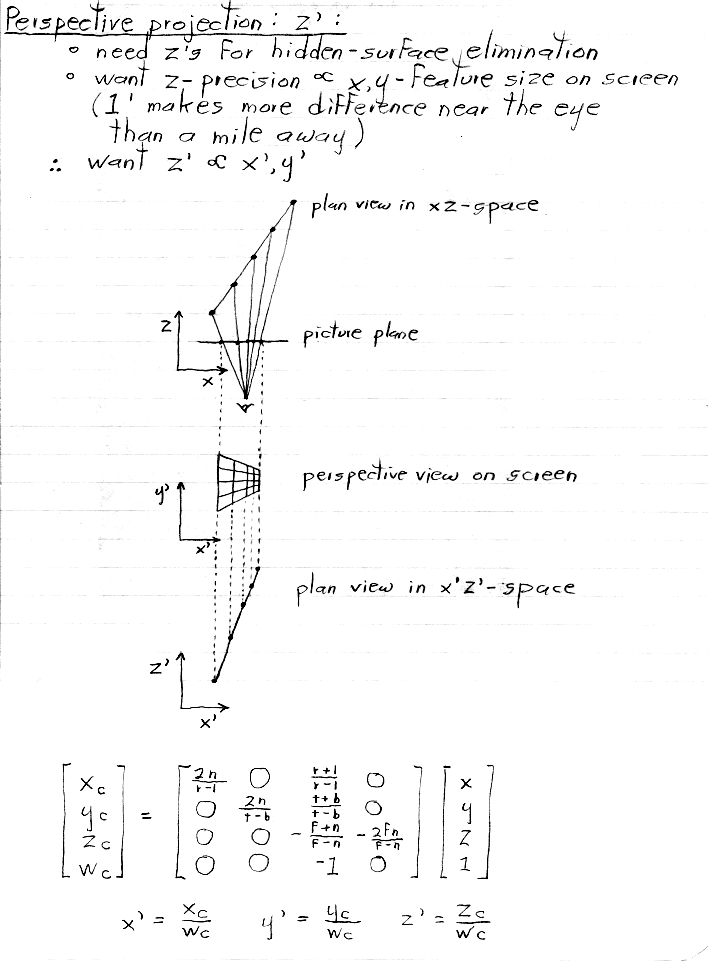

  • Perspective projection: z'

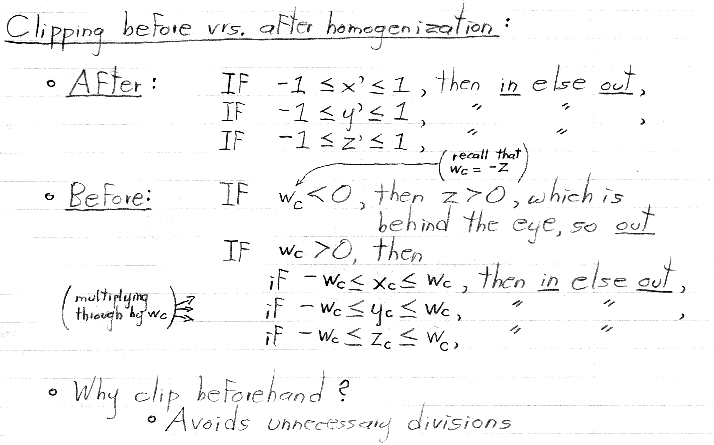

  • Clipping before versus after homogenization

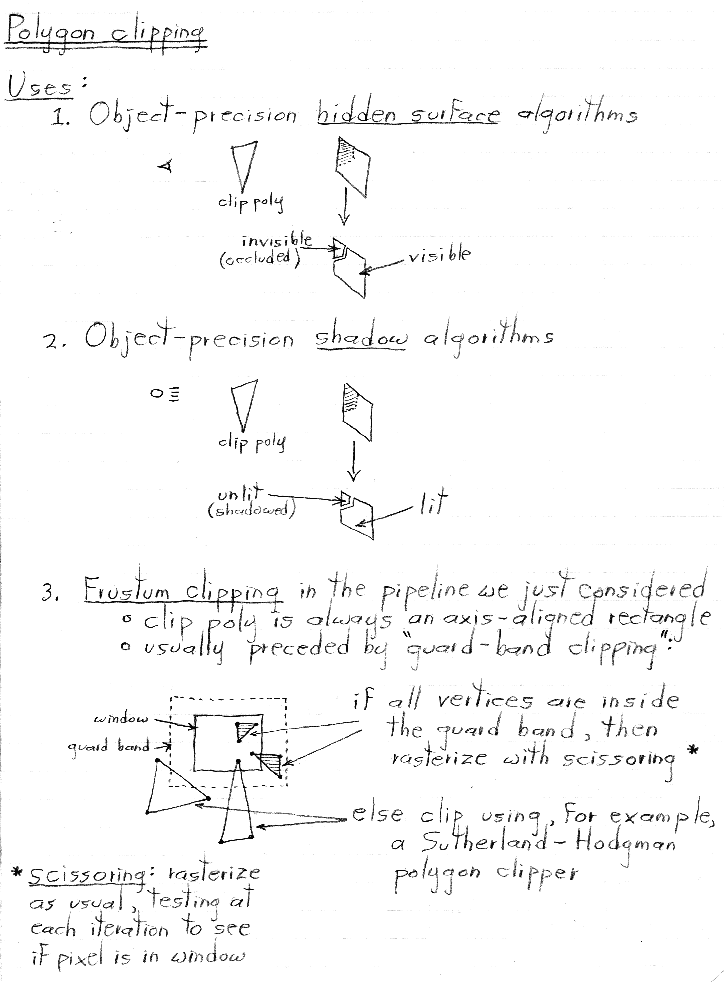

• Polygon clipping
  • Uses of polygon clipping

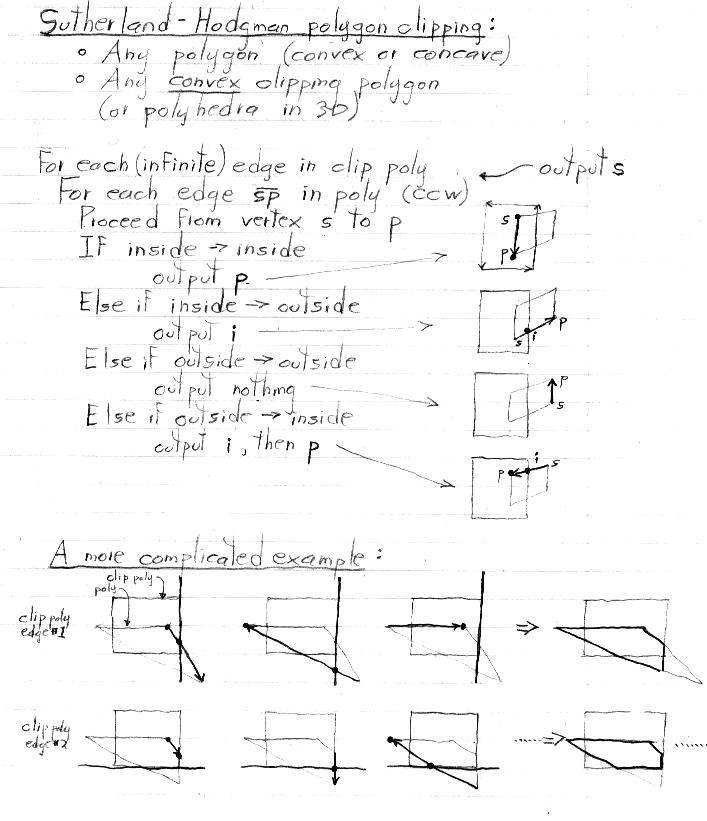

  • Sutherland-Hodgman polygon clipping

If you want to play with the program I used in class to demonstrate:

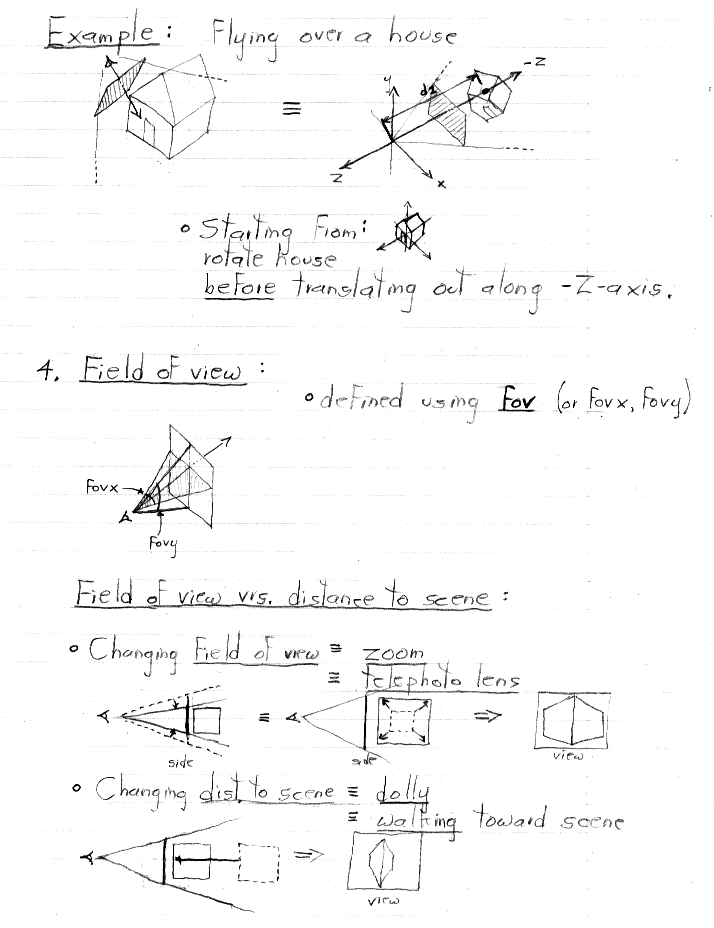

• changing the field of view (zooming) versus
• changing the distance to the scene (dollying),

/usr/class/cs248/support/bin/i386-linux/frustum.linux /usr/class/cs248/data/Inventor/spheres.iv
