Viewing I: the wonders of perspective

Viewing I: the wonders of perspective

CS 248 - Introduction to Computer Graphics
Autumn Quarter, 2002
Marc Levoy
Lecture notes for Tuesday, November 5

Table of contents:

Taxonomy of planar geometric projections
- The invention of perspective (separate web page)
- The taxonomy

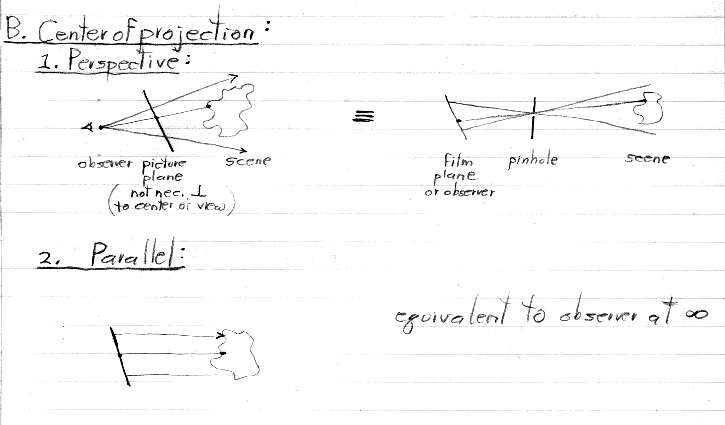

- Center of projection

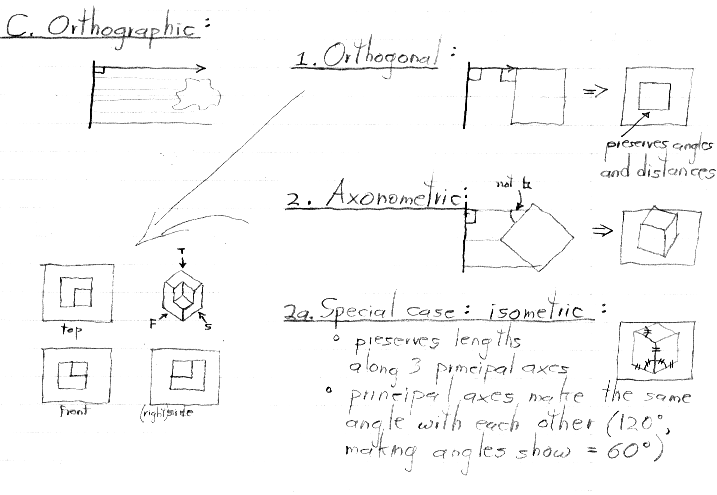

- Orthographic views
- Oblique views

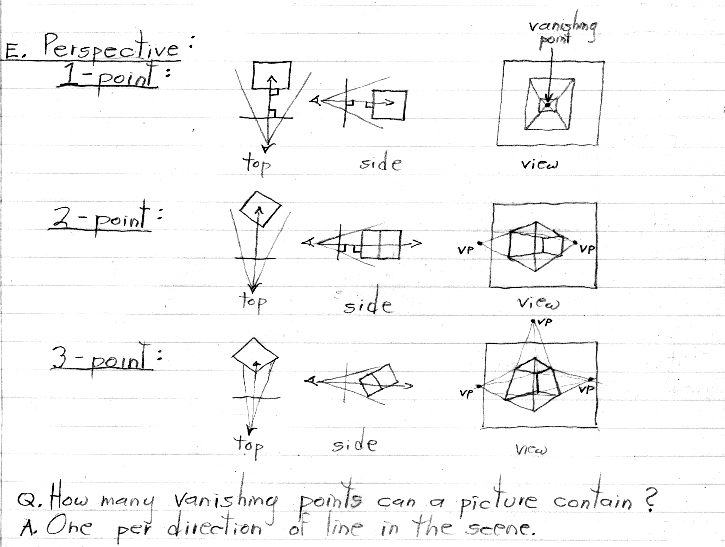

- Perspective views

Press here for the problems on the use of perspective in art that I posed at the end of class today.
