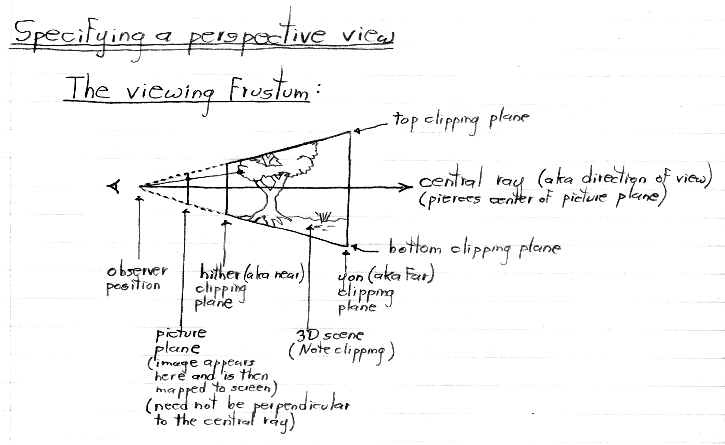

Viewing II: the mathematics of perspective

CS 248 - Introduction to Computer Graphics
Autumn Quarter, 2002
Marc Levoy
Lecture notes for Thursday, November 7 (finished on Nov. 12)


Table of contents:

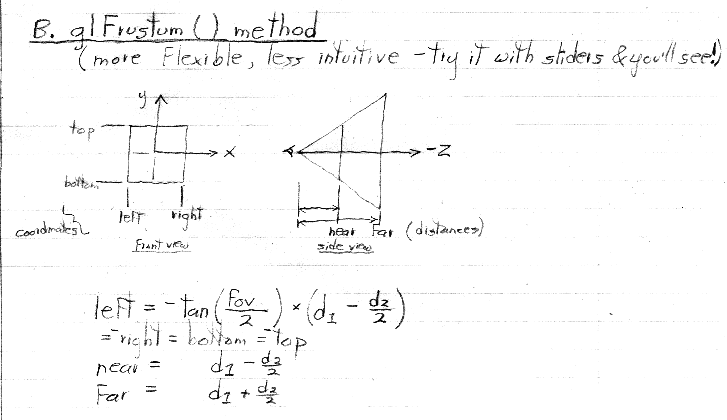

If you want to play with the program I used in class to demonstrate changing the field of view (zooming) versus changing the distance to the scene (dollying), then log on to a firebird or raptor and type:

/usr/class/cs248/support/bin/i386-linux/frustum.linux /usr/class/cs248/data/Inventor/spheres.iv















levoy@cs.stanford.edu
Copyright © 2002 Marc Levoy
Last update: November 12, 2002 01:57:35 PM
