Supersampling/resampling

CS 248 - Introduction to Computer Graphics
Autumn Quarter, 2006
Marc Levoy
Lecture notes for Thursday, October 12 (first half of class)

Table of contents:

• Supersampling followed by resampling

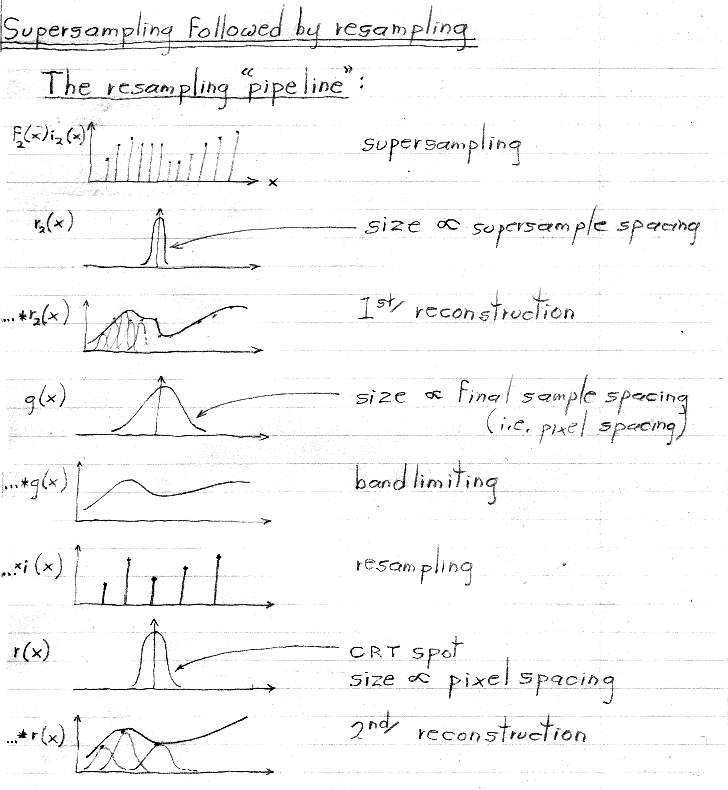

  • The resampling pipeline

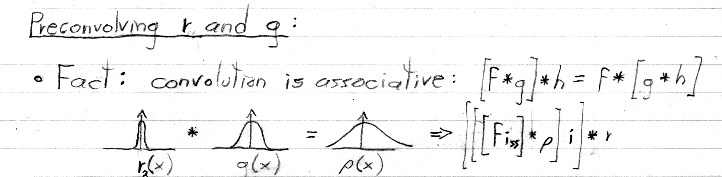

  • Preconvolving r and g

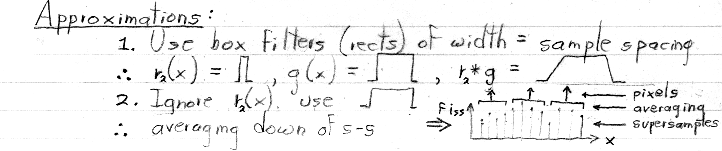

  • Approximations

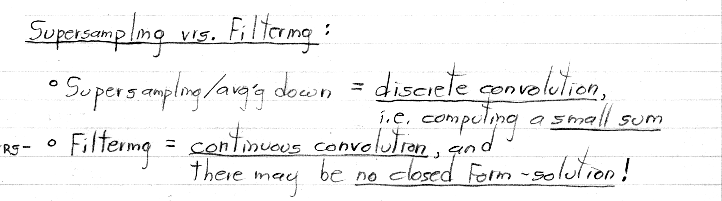

  • Supersampling versus filtering
  • What supersampling and averaging down accomplishes
• Practical supersampling

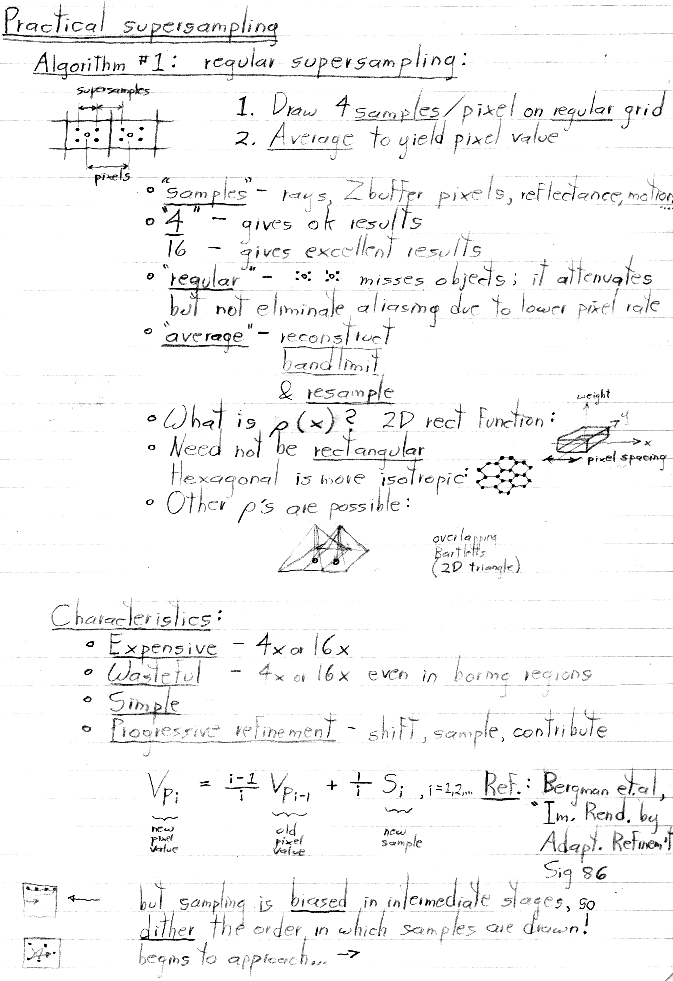

  • Algorithm 1: regular supersampling

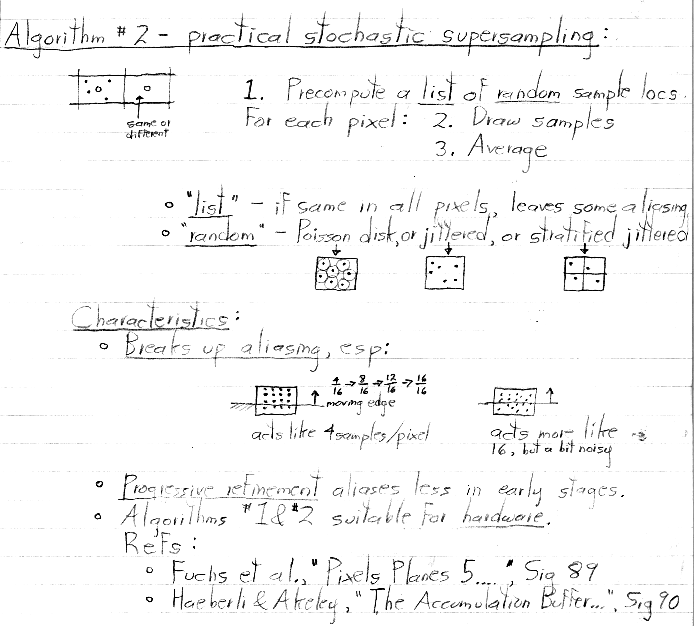

  • Algorithm 2: practical stochastic supersampling
  • Demonstration of supersampling

I don't have time in this course to show you what supersamping and averaging down looks like in the frequency domain. If you're interested, look at this handout from CS 348B.
