Perspective viewing and clipping (part I)

CS 248 - Introduction to Computer Graphics
Spring Quarter, 1995
Marc Levoy
Lecture notes for Tuesday, May 16

Table of contents:

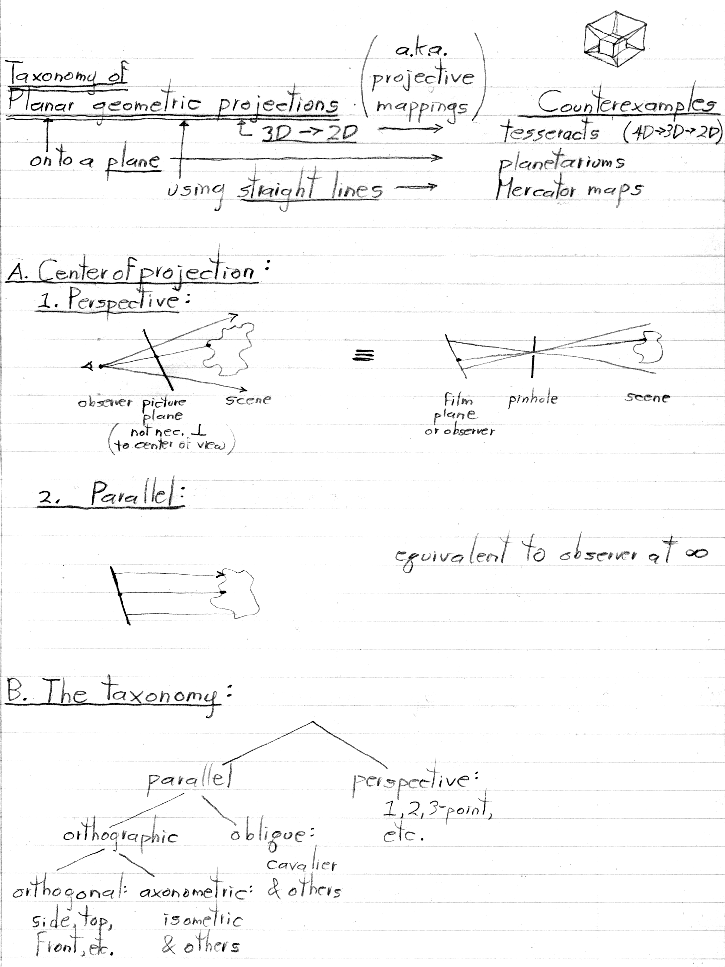

• Taxonomy of planar geometric projections
  • Center of projection
  • The taxonomy

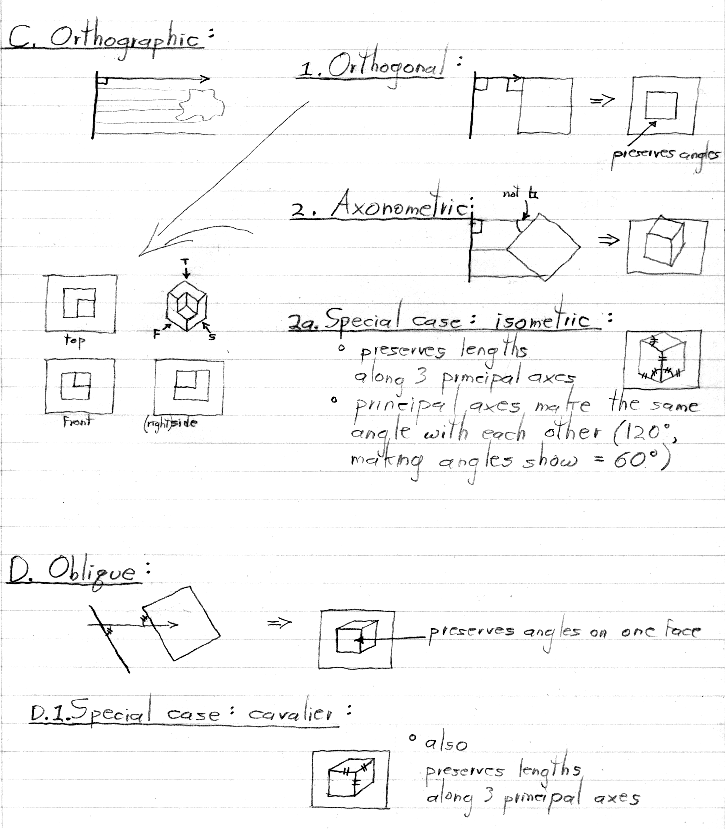

  • Orthographic views
  • Oblique views

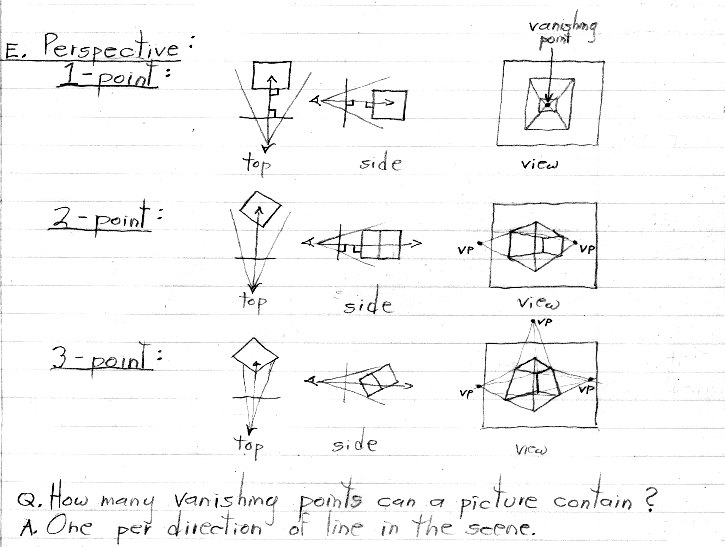

  • Perspective views

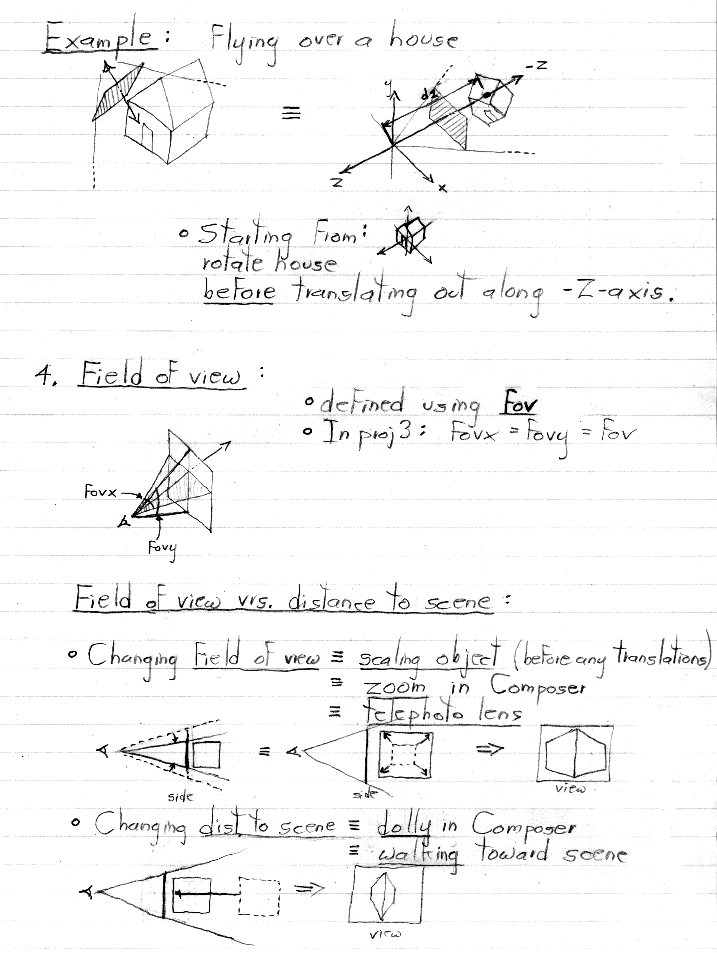

• Specifying a perspective view

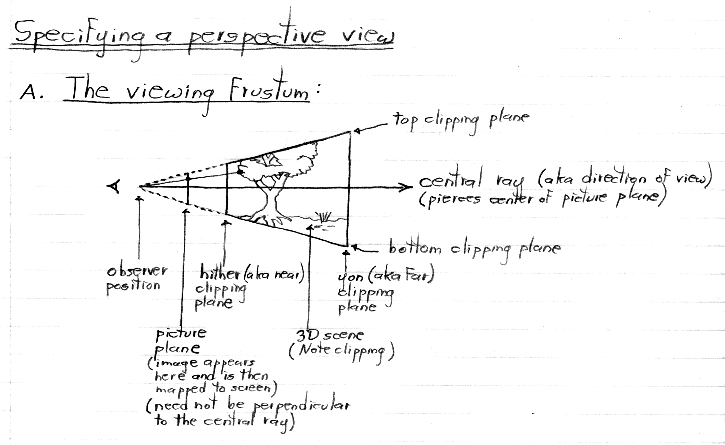

  • The viewing frustum
  • Project #3 specification method
  • SGI specficiation method
  • Comparison of formulations

Press here for part II of this lecture.
