Perspective viewing and clipping (part II)

CS 248 - Introduction to Computer Graphics
Spring Quarter, 1995
Marc Levoy
Lecture notes for Thursday, May 18

Table of contents:

• Mathematics of planar geometric projections

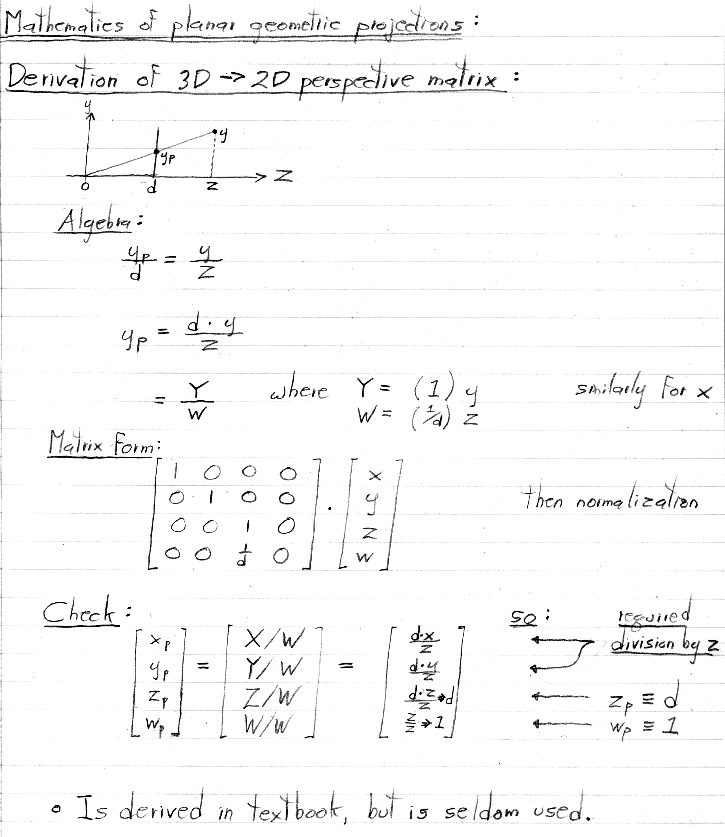

  • Derivation of 3D - 2D perspective matrix
  • Homogeneous formulation, 3D - distorted 3D
  • Source and target spaces

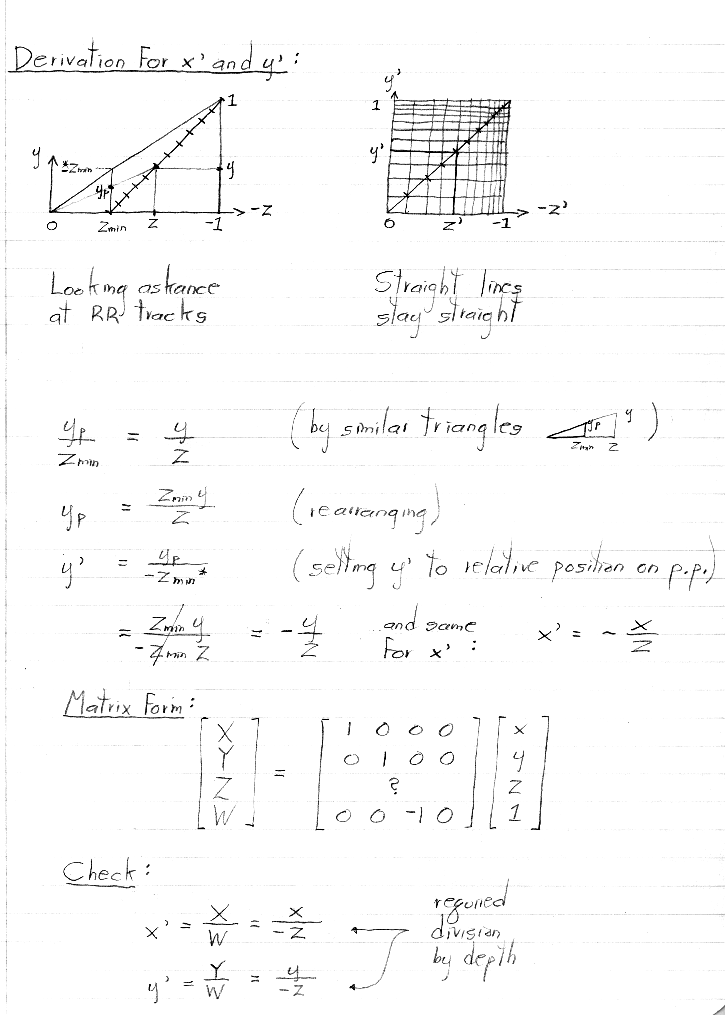

  • Derivation for x' and y'

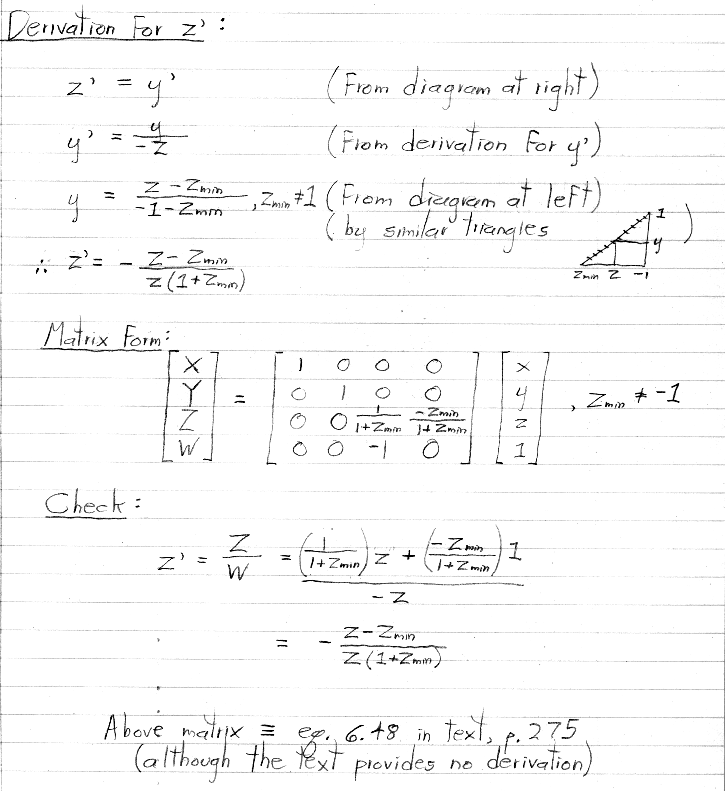

  • Derivation for z'
• The transformation and clipping pipeline

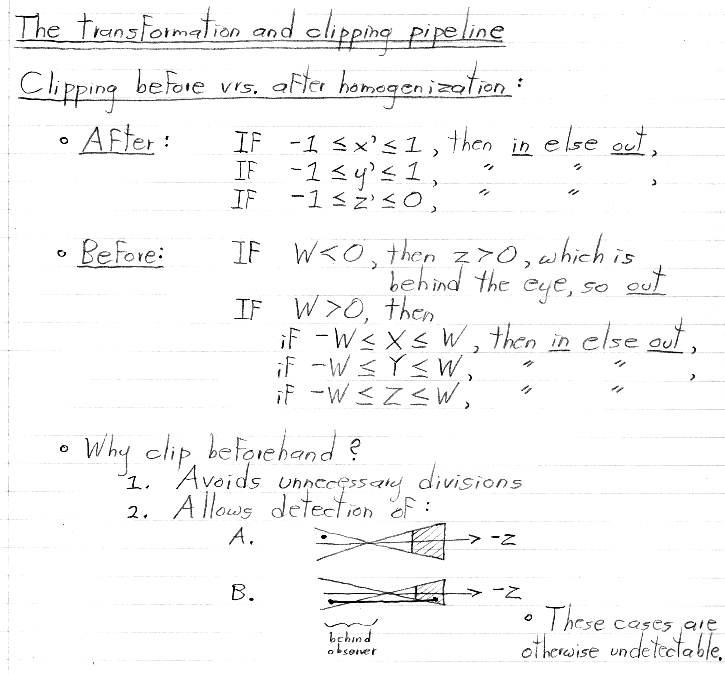

  • Clipping before versus after homogenization

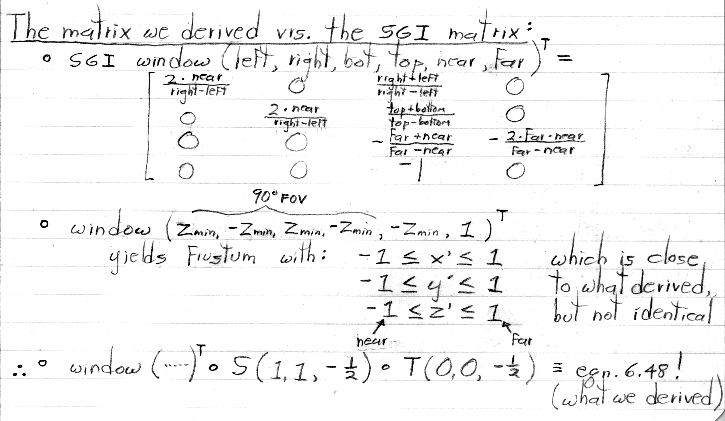

  • The matrix we derived versus the SGI matrix

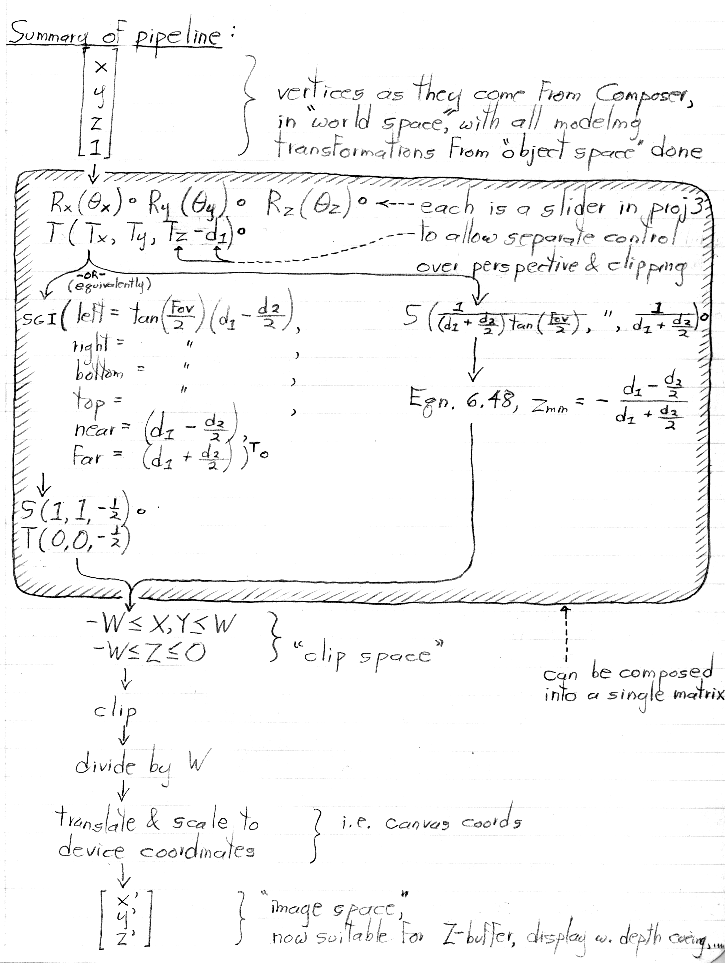

  • Summary of pipeline

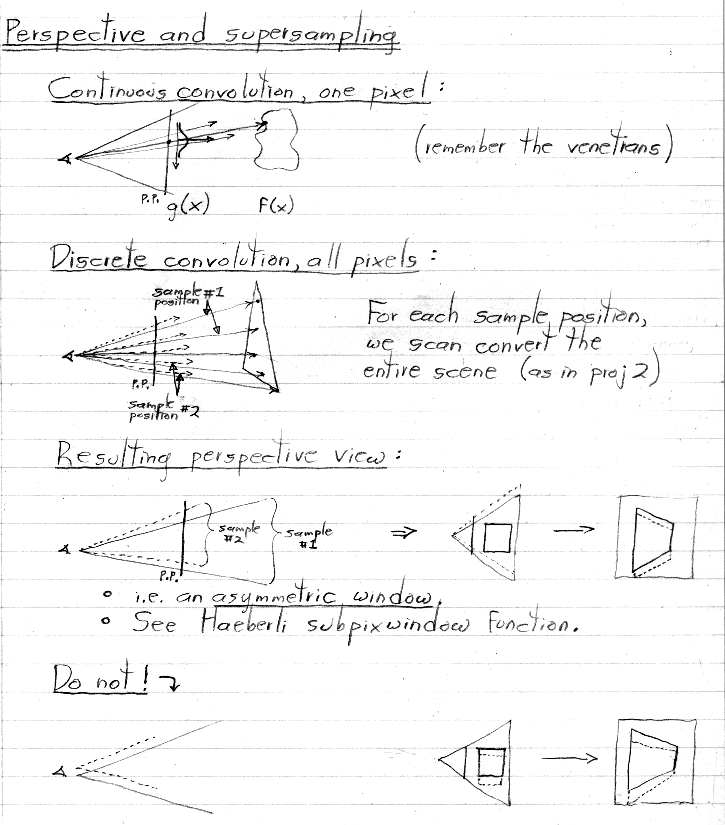

• Perspective and supersampling
  • Continuous convolution, one pixel
  • Discrete convolution, all pixels
  • Resulting perspective view

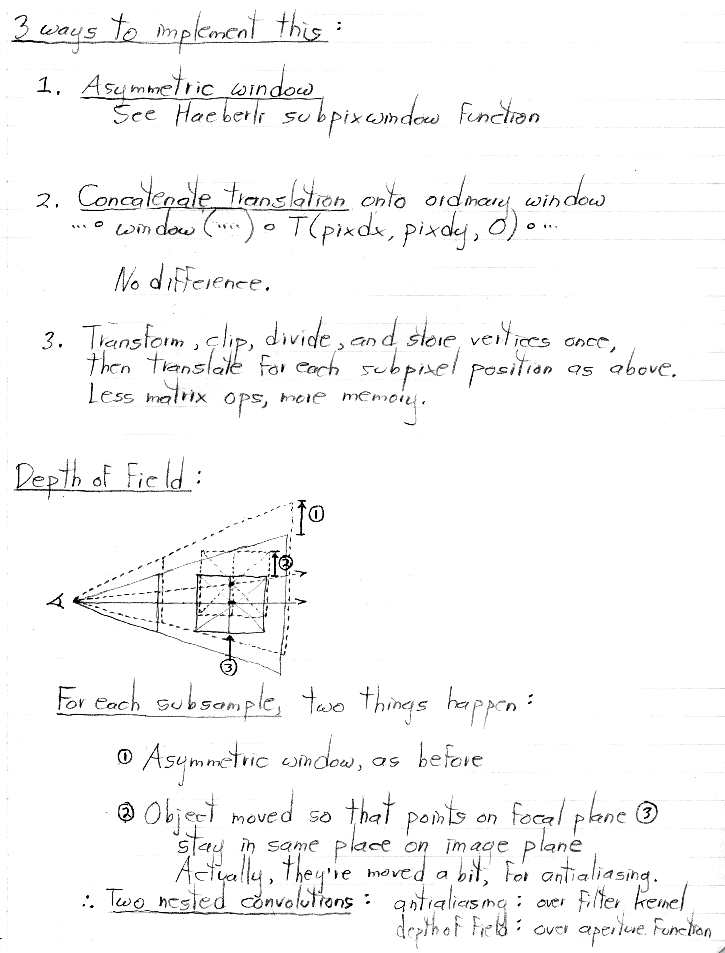

  • 3 ways to implement this
  • Depth of field
