Local illumination II: polygon mesh shading

CS 248 - Introduction to Computer Graphics
Spring Quarter, 1995
Marc Levoy
Lecture notes for Thursday, June 1

Table of contents:

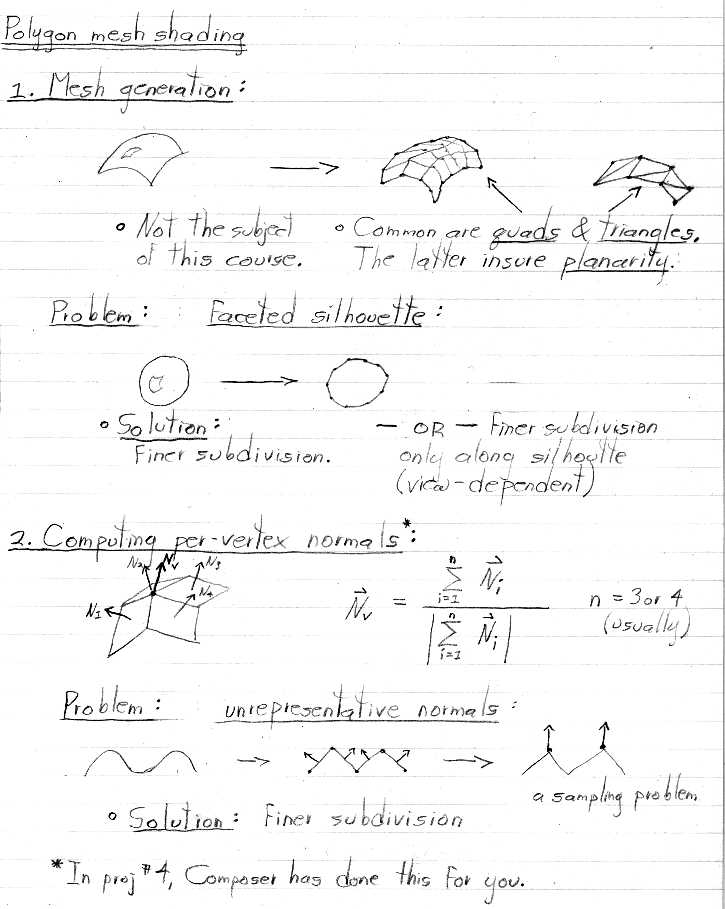

• Polygon mesh shading
  • Mesh generation
  • Computing per-vertex normals

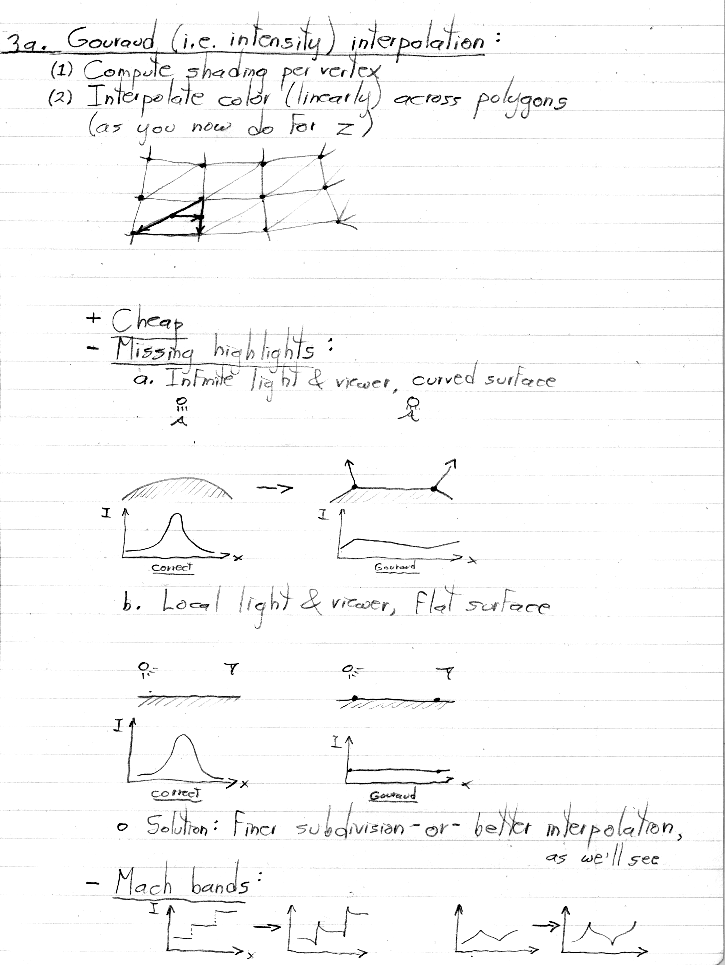

  • Gouraud (i.e. intensity) interpolation

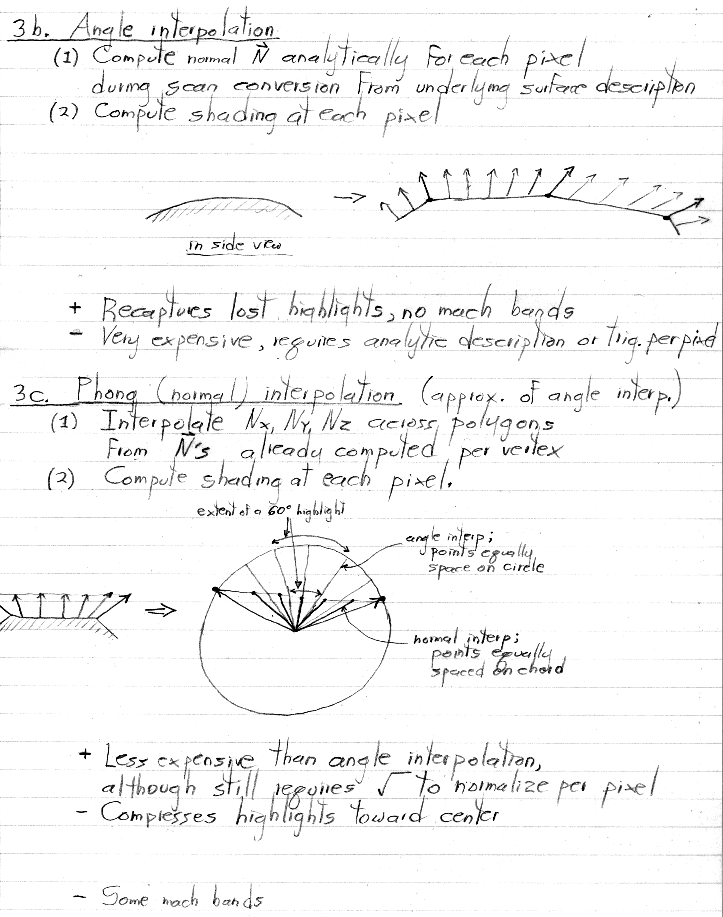

  • Angle interpolation
  • Phong (i.e. normal) interpolation

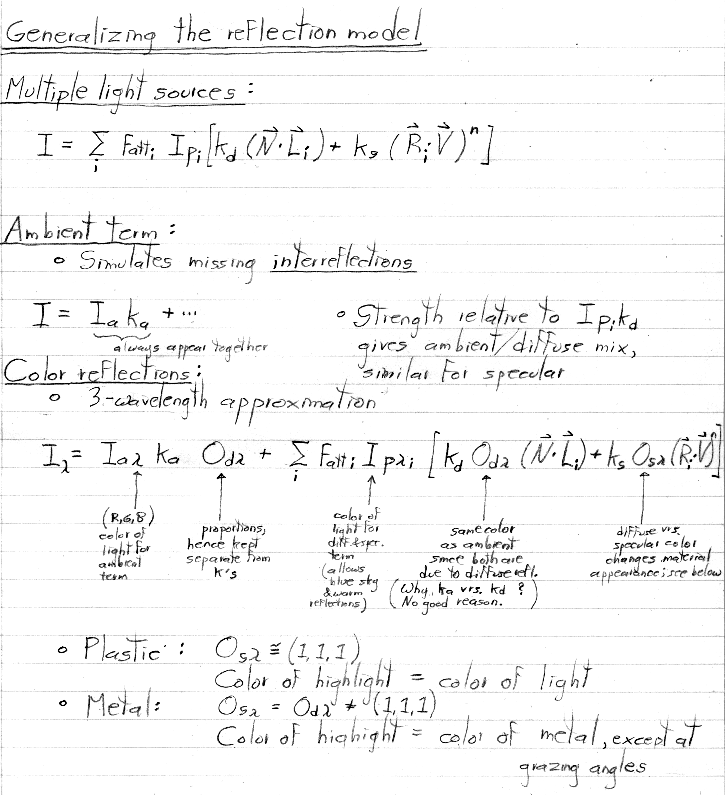

• Generalizing the reflection model
  • Multiple light sources
  • Ambient term
  • Color reflections

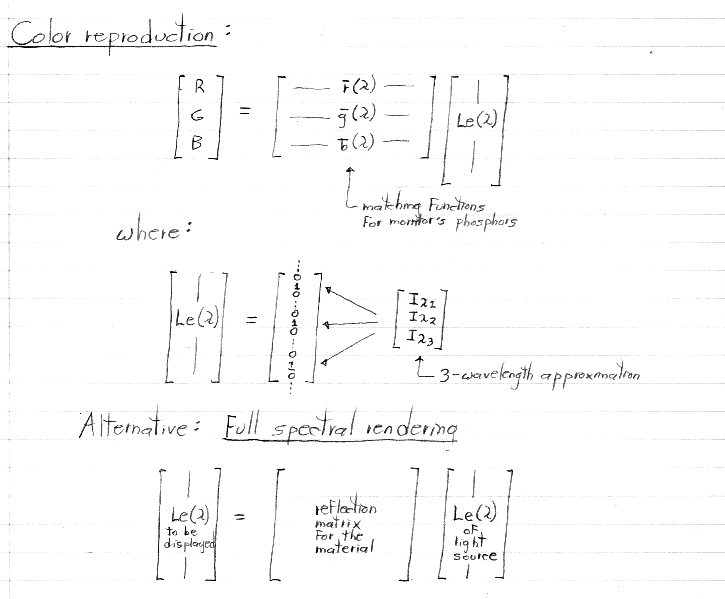

  • Color reproduction

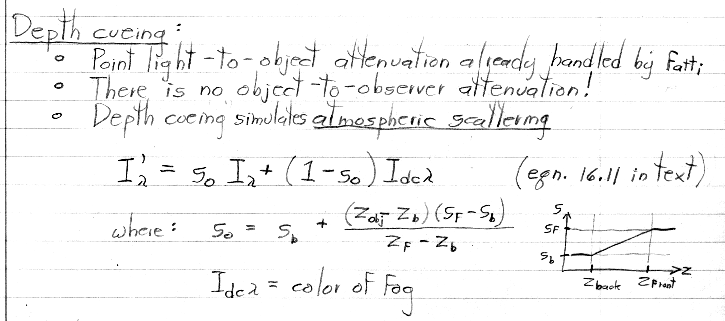

  • Depth cueing

Press here for part I of this lecture.
Press here for part III of this lecture.
