Tree_anchor

Definition

Tree_anchor is also derived from Tree_base. Therefore, it provides the same methods as Range_tree_d and Segment_tree_d, but does nothing; it can be used as a recursion anchor for those classes. Therefore, instantiate Sublayer_type of Range_tree_d (Segment_tree_d respectively) with Tree_anchor and the container classes for the data items (Data and Window).

Definition

Tree_anchor<Data, Window>::Data
container Data.


Tree_anchor<Data, Window>::Window
container Window.

Creation

#include <CGAL/Tree_base.h>

Tree_anchor<Data, Window> a;

Operations

template<class OutputIterator>
OutputIterator a.window_query ( Window win, OutputIterator result)


template<class OutputIterator>
OutputIterator a.enclosing_query ( Window win, OutputIterator result)


bool a.is_valid () returns true;

Protected Operations

bool a.is_inside ( Window win, Data object)
returns true.

bool a.is_anchor () returns true.

Example

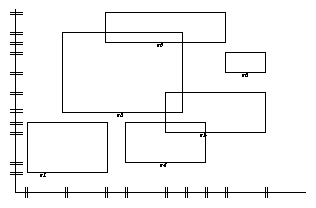

The following figures show a number of rectangles and a 2-dimensional segment tree built on them.

<
Two
    dimensional interval data Two
    dimensional segment tree according to the interval data

Two dimensional interval data. Two dimensional segment tree according to the interval data.
