The Lman and Fman utilities give online access to the manual pages of the LEDA system. Lman produces LATEX -output and Fman produces low quality ASCII-output for quick reference. The usage is
Lman T[.h] options Fman T[.h] filterwhere T is the name of a LEDA type, e.g., list, sortseq, or point. Without options Lman produces manual pages as contained in the LEDA manual. Thus,
Lman list produces the manual page for the LEDA type list and
Fman list produces a low quality version of it. Please try out Lman
and Fman before proceeding. If they do not work the error is very likely
to be one of the following.
LEDAROOT is not set to the root directory of
the LEDA system.$LEDAROOT/Manual/cmd is not part of your PATH.$LEDAROOT/Manual/tex is not part of your TEXINPUTS.The behavior of Lman and Fman can be fine-tuned by options. A call Lman without arguments gives a short survey of all available options. Options are specified in assignment syntax variable=value. There must be no blank on either side of the equality sign. In the list of options to follow we list the default value of each option first.
const T& x is displayed as a value parameter T x and
with the yes-option it is displayed in full.
+ of a
class number. With the no-option the operator
operator+(number x, number y) is displayed as x + y
and with the yes-option it is displayed as
number x + number y.
Fman list insert shows
the insert operation for lists and Lman point filter=operator+ extracts
the + operator of the point type (write arrop to inquire about the array
operator and funop to inquire about the function operator).
Lman can be customized by putting options in a file Lman.cfg in either the home directory or the working directory. Command line options take precedence over options in the working directory which in turn take precedence over options in the home directory.
Fman is the utility for quick reference. It takes two arguments, a typename and one of the filters, and directly displays its output. For example, the call Fman list signatures will display the signatures of all operations of the list data type.
Lman and Fman are not only applicable to the header files of the LEDA system,
they can be applied to any file containing (possibly among other things)
C++-code suitably augmented by so-called manual comments. A manual comment is
any comment of the form /*{\Mcommand ...}*/ where Mcommand is one of
so-called manual commands. We discuss manual commands in detail below. Every
manual comment produces part of the manual page.
The following part shows the enriched header file of data type stack:
#ifndef LEDA_STACK_H
#define LEDA_STACK_H
#include <LEDA/basic.h>
#include <LEDA/impl/slist.h>
/*{\Manpage {stack} {E} {Stacks} {S}}*/
template<class E> class _CLASSTYPE stack : private SLIST
{
/*{\Mdefinition
An instance |S| of the parameterized data type |\Mname| is a sequence of
elements of data type |E|, called the element type of |S|. Insertions or
deletions of elements take place only at one end of the sequence, called
the top of |S|. The size of |S| is the length of the sequence, a stack
of size zero is called the empty stack.}*/
public:
/*{\Mcreation}*/
stack() {}
/*{\Mcreate creates an instance |\Mvar| of type |\Mname| and initializes
it to the empty stack.}*/
stack(const stack<E>& S) : SLIST(S) {}
~stack() { clear(); }
stack<E>& operator=(const stack<E>& S)
{ return (stack<E>&)SLIST::operator=(S); }
/*{\Moperations 2.5 4}*/
E top() const { return ACCESS(E,SLIST::head());}
/*{\Mop returns the top element of |\Mvar|.\\
\precond $S$ is not empty.}*/
void push(E x) { SLIST::push(Copy(x)); }
/*{\Mop adds $x$ as new top element to |\Mvar|.}*/
E pop() { E x=top(); SLIST::pop(); return x; }
/*{\Mop deletes and returns the top element of |\Mvar|.\\
\precond $S$ is not empty.}*/
\*{\Mimplementation
Stacks are implemented by singly linked linear lists. All operations take
time $O(1)$.}*/
};
#endif
The section
#s#>

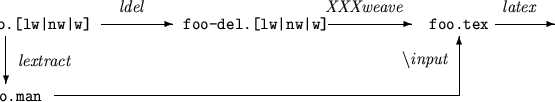

Lman is based on the command lextract. See figure ldel and lextract.
lextract infile outfile [options]reads infile, processes the manual commands in it, and writes the core of a TEX -file on outfile. All Lman options apply. Lman itself works in three phases. It first produces a tempory LATEX -file
![\begin{figure}
\begin{center}
\setlength {\unitlength}{3mm}\begin{picture}(50,8)...
...\makebox(0,0)[r]{$\backslash${\em input}}}
\end{picture}\end{center}\end{figure}](img5.gif)
\documentclass[a4paper,size pt]{article}
\usepackage{Lweb}
\begin{document}
output of lextract
\end{document}
and then applies latex and xdvi to it.
Ldoc is the tool to produce full documentations consisting of manual page, implementation, and test routines. Ldoc is based on noweb [72], and Lweb. Lweb is a dialect of noweb which we developed for the production of the LEDA book and the documentation of the LEDA system. You should have a working knowledge of noweb before proceeding. Ldoc is based on the commands lextract, ldel, and weave. We discussed lextract already.
ldel infile outfilereads infile, deletes all manual comments from it, and writes the result on outfile. Weave is the weave-command of the literate programming tool in use, i.e., noweave for noweb, and lweave for Lweb. Ldoc works on noweb-, and Lweb-files. It first uses lextract to extract the manual and ldel to extract a file pure of manual comments, it then applies the appropriate weave command to the output of ldel, and it finally applies latex and xdvi to the resulting file. All Lman options apply.
Figure The LEDA directory tree shows the parts of the LEDAROOT directory that are relevant for manual production. Subdirectory Manual splits into cmd, noweb, tex, and MANUAL: cmd contains the commands Lman, Fman, ..., noweb contains the full documentation (written in noweb) of all commands, tex contains the style-files for manual production, and MANUAL contains the actual LEDA manual.
For more information about the LEDA tools for manual production and documentation we refer the reader to the corresponding chapter of [58].
