Lets say you want to maintain a sorted list of items (each item is associate with a real number key). You can imagine placing each of the items on the point on the real line corresponding to its key. Now, let the key for each item change continuously (i.e. no jumps are allowed). As long as no to (consecutive) items cross, the sorted order is intact. When two cross, they need to be exchanged in the list and then the sorted order is once again correct. This is a trivial example of a kinetic data structure. The key observation is that the combinatorial structure which is maintained changes at discrete times (events) even though the basic building blocks are changing continuously.
This chapter describes a number of such kinetic data structures
implemented using the Kinetic framework described in
Chapter
. We first, in
Section introduce kinetic data structures and
sweepline algorithms. This section can be skipped if the reader is
already familiar with the area. The next sections,
Section and Section introduces
the terms and gives an overview of the framework. They are recommended
reading for all readers, even if you are just using provided kinetic
data structures. We then present kinetic data structures for Delaunay
triangulations in two and three dimensions in
Section .
The kinetic data structures approach is built on top of this view of computational geometry. Let the geometric primitives move by replacing each of their defining quantities with a function of time (generally a polynomial). As time advances, the primitives trace out paths in space called trajectories. The values of the polynomial functions of the defining quantities used to evaluate the predicates now also become functions of time. We call these functions certificate functions. Typically, a geometric structure is valid when all predicates have a specific non-zero sign. In the kinetic setting, as long as the certificate functions maintain the correct sign as time varies, the corresponding predicates do not change values, and the original data structure remains correct. However, if one of the certificate functions changes sign, the original structure must be updated, as well as the set of certificate functions that verify it. We call such occurrences events.
Maintaining a kinetic data structure is then a matter of determining which certificate function changes sign next, i.e. determining which certificate function has the first real root that is greater than the current time, and then updating the structure and the set of certificate functions. In addition, the trajectories of primitives are allowed to change at any time, although -continuity of the trajectories must be maintained. When a trajectory update occurs for a geometric primitive, all certificates involving that primitive must be updated. We call the collection of kinetic data structures, primitives, event queue and other support structures a simulation.
Sweepline algorithms for computing arrangements in dimensions easily map on to kinetic data structures by taking one of the coordinates of the ambient space as the time variable. The kinetic data structure then maintains the arrangement of a set of objects defined by the intersection of a hyperplane of dimension with the objects whose arrangement is being computed.
Time is one of the central concepts in a kinetic simulation. Just as
static geometric data structures divide the continuous space of all
possible inputs (as defined by sets of coordinates) into a discrete
set of combinatorial structures, kinetic data structures divide the
continuous time domain into a set of disjoint intervals. In each
interval the combinatorial structure does not change, so, in terms of
the combinatorial structure, all times in the interval are equivalent.
We capitalize on this equivalence in the framework in order to
simplify computations. If the primitives move on polynomial
trajectories and the certificates are polynomials in the coordinates,
then events occur at real roots of polynomials of time. Real numbers,
which define the endpoints of the interval, are more expensive to
compute with than rational numbers, so performing computations at a
rational number inside the interval is preferable whenever
possible. See Section for an example of
where this equivalence is exploited.
The kinetic framework is structured around five main concepts. See
Figure for a schematic of how a kinetic data structure
interacts with the various parts. The main concepts are

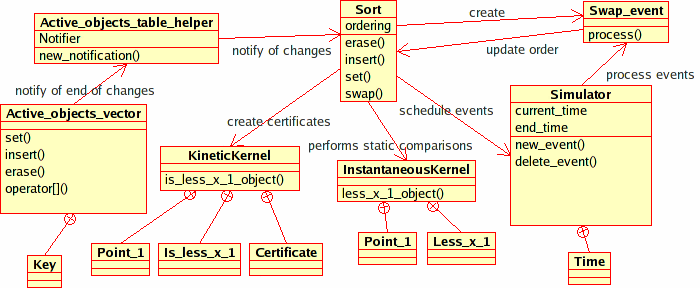

Figure: The figure shows the interaction between
the Kinetic::Sort<Traits, Visitor> kinetic data structure and
the various pieces of our package. Other, more complicated, kinetic
data structures will also use the Kinetic::InstantaneousKernel in order
to insert/remove geometric primitives and audit
themselves. Kinetic::Sort<Traits, Visitor> uses the sorting
functionality in STL instead.
.
For simplicity, we added an additional concept, that of Kinetic::SimulationTraits, which wraps together a particular set of choices for the above concepts and is responsible for creating instances of each of the models. The addition of this concept reduces the choices the user has to make to picking the dimension of the ambient space and choosing between exact and inexact computations. The model of Kinetic::SimulationTraits creates an instance each of the Kinetic::Simulator and Kinetic::ActiveObjectsTable. Handles for these instances as well as instances of the Kinetic::Kernel and Kinetic::InstantaneousKernel can be requested from the simulation traits class. Both the Kinetic::Kernel and the Kinetic::Simulator use the Kinetic::FunctionKernel, the former to find certificate failure times and the later to operate on them. For technical reasons, each supplied model of Kinetic::SimulationTraits also picks out a particular type of kinetic primitive which will be used by the kinetic data structures.
Surrounding these central set of concepts, there are a large number of
smaller concepts, the models of which act either as glue between
objects or as helper classes. The key smaller concepts will be described along
with the appropriate central concepts in the corresponding subsections
of Section .
Along with the framework, we provide several already implemented kinetic data structures. They currently are
Using a kinetic data structure can be as simple as the following:
#include <CGAL/Kinetic/basic.h>
#include <CGAL/Kinetic/Exact_simulation_traits_1.h>
#include <CGAL/Kinetic/Insert_event.h>
#include <CGAL/Kinetic/Sort.h>
int main(int, char *[])
{
typedef CGAL::Kinetic::Exact_simulation_traits_1 Traits;
typedef CGAL::Kinetic::Insert_event<Traits::Active_points_1_table> Insert_event;
typedef Traits::Active_points_1_table::Data Moving_point;
typedef CGAL::Kinetic::Sort<Traits> Sort;
typedef Traits::Simulator::Time Time;
Traits tr;
Sort sort(tr);
Traits::Simulator::Handle sp= tr.simulator_handle();
std::ifstream in("data/points_1");
in >> *tr.active_points_1_table_handle();
while (sp->next_event_time() != sp->end_time()) {
sp->set_current_event_number(sp->current_event_number()+1);
}
return EXIT_SUCCESS;
};
In the example, first the Kinetic::SimulationTraits object is chosen (in this case one that supports exact computations). Then the kinetic data structure is defined using the chosen traits object and a visitor class which logs changes to the sorted list. Next, instances of the two are created and a set of points is read from a file. Then, the simulator is instructed to process all the events until the end of the simulation. Finally, a record of what happened is printed to the terminal.
Several important things happen behind the scenes in this example. First, the Kinetic::ActiveObjectsTable which holds the moving points notifies the kinetic data structure that new points have been added to the simulation. Second, the Kinetic::Sort<Traits,Visitor> kinetic data structure registers its events with the Kinetic::Simulator by providing a time and a proxy object for each event. When a particular event occurs, the Kinetic::Simulator calls a function on the proxy object which in turn updates the kinetic data structure.
The example illustrates how to monitor the supplied data structures as they evolve by using a Kinetic::SortVisitor object - a small class whose methods are called whenever the kinetic data structure changes. Hooks for such visitor concepts are provided for all of the shipped kinetic data structures. In the case of kinetic sorting, the visitor's methods are called every time a new point is inserted in the sorted list, when one is removed, or when two points are swapped in the sorted order.
The visitor concept is quite powerful, allowing us, for example, to
implement a data structure for computing and storing two-dimensional
arrangements of -monotone curves on top of the
Kinetic::Sort<Traits, Visitor> data structure using about 60
lines of code. This sweepline code is presented in
Section .
One key part of the framework not shown is how to create kinetic primitives (rather than just reading them in from a file). There are two ways to construction the necessary motion functions (which are models of Kinetic::FunctionKernel::Function). The first is to create an array of polynomial coeffients and simply call the constructor as in:
typedef Traits::Kinetic_kernel::Motion_function F; std::vector<F::NT> coefs; coefs.push_back(F::NT(1.0)); coefs.push_back(F::NT(2.0)); F x(coefs.begin(), coefs.end());
A slightly more flexible way is to use a Kinetic::FunctionKernel::ConstructFunction object. To do this do the following:
typedef Traits::Kinetic_kernel::Function_kernel::Construct_function CF; typedef Traits::Kinetic_kernel::Motion_function F; CF cf; F x=cf(F::NT(1.0), F::NT(2.0));The Kinetic::FunctionKernel::ConstructFunction can be passed (almost) an number of arguments and will construct a polynomial with those arguments are coefficients.
Once the motion functions are constructed, constructing the primitive is just like constructing the corresponding static object.
typedef Traits::Kinetic_kernel::Point_1 Point_1; Point_1 p(x);
The framework includes Qt widgets for displaying kinetic data structures in two and three dimensions. The following example shows using the two dimensional widget with a Delaunay triangulation:
#include <CGAL/Kinetic/Exact_simulation_traits_2.h>
#include <CGAL/Kinetic/Delaunay_triangulation_2.h>
#include <CGAL/Kinetic/Enclosing_box_2.h>
#include <CGAL/Kinetic/IO/Qt_moving_points_2.h>
#include <CGAL/Kinetic/IO/Qt_triangulation_2.h>
#include <CGAL/Kinetic/IO/Qt_widget_2.h>
int main(int argc, char *argv[]) {
using namespace CGAL::Kinetic;
typedef Exact_simulation_traits_2 Traits;
typedef Delaunay_triangulation_2<Traits> Del_2;
typedef Enclosing_box_2<Traits> Box_2;
typedef Qt_widget_2<Traits::Simulator> Qt_widget;
typedef Qt_moving_points_2<Traits, Qt_gui> Qt_mps;
typedef Qt_triangulation_2<Del_2, Qt_widget, Qt_mps> Qt_dt2;
// create a simulation traits and add two KDSs:
// a kinetic Delaunay triangulation and an enclosing box;
// the moving points bounce against the walls of the enclosing box
Traits tr;
Box_2::Handle box = new Box_2(tr);
Del_2::Handle kdel = new Del_2(tr);
// register the simulator, set of moving points and
// Delaunay triangulation with the kinetic Qt widget
Qt_widget::Handle qt_w = new Qt_widget(argc, argv, tr.simulator_handle());
Qt_mps::Handle qt_mps = new Qt_mps(qt_w, tr);
Qt_dt2::Handle qt_dt2 = new Qt_dt2(kdel, qt_w, qt_mps);
// read the trajectories of the moving points
// the simulation traits automatically inserts them in the two KDSs
// and schedules the appropriate kinetic events; as in the kinetic
// sorting example this is done with appropriate notifications
std::ifstream in("data/points_2");
in >> *tr.active_points_2_table_handle();
// run the interactive kinetic simulation
return qt_w->begin_event_loop();
};
The example shows how to use a number of additional features of the framework. First, it shows that two kinetic data structures (Kinetic::Delaunay_triangulation_2<Traits, Triangulation> and Kinetic::Enclosing_box_2<Traits>) can coexist on the same set of points without any extra effort. Both interact with the moving points through the active objects table, and never need to directly interact with one another. Second, objects (like qt_w, qt_mps and qt_dt2) are all stored by using reference counted handles (Object::Handle). This allows them to share references to one another without the user having to worry about memory management and order of deletion. For example, the Kinetic::Qt_triangulation_2<KineticDelaunay_2, QtWidget_2, Qt_moving_points_2> object needs a handle to the kinetic triangulation, in order to get the structure to display, and a handle to the Active_points_1_table to get the coordinates of the points.
Finally, the example shows how to use the graphical interface elements
provided, see Figure . Our package includes
Qt widgets for displaying kinetic geometry in two and three
dimensions. In addition to being able to play and pause the
simulation, the user can step through events one at a time and reverse
the simulation to retrace what had happened. The three-dimensional
visualization support is based on the Coin library http://www.coin3d.org.
Figure:
Some events from a Delaunay triangulation kinetic data
structure: The state of the two dimensional Delaunay triangulation
immediately following the first events is shown. Green edges are ones
which were just created. The pictures are screen shots from
demo/Kinetic_data_structures/Delaunay_triangulation_2.C.

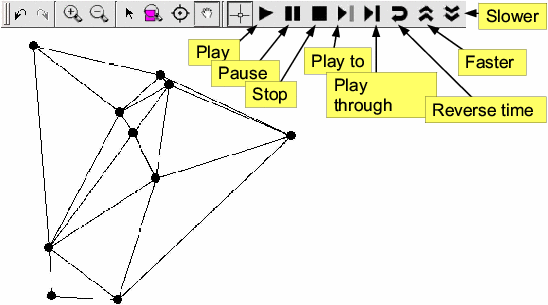

Figure: The figure shows the graphical user interface for
controlling two-dimensional kinetic data structures. It is built on
top of the Qt_widget and adds buttons to play, pause, step
through and run the simulation backwards.
Here we present a simple example that uses the kinetic data structures framework to implement a sweepline to compute the arrangement of x-monotone algebraic curves in the plane. The example builds on top of the Kinetic::Sort<Traits, Visitor> kinetic data structure, using a visitor to keep track of changes to the sorted order and newly inserted points. To see an example using this kinetic data structure read the example at examples/Kinetic_data_structures/sweepline.C.
First we define the visitor class. An object of this type is passed to the Kinetic::Sort data structure and turns events into calls on the arrangement structure. This class has to be handled externally since the arrangement will inherit from the sorting structure.
template <class Arrangement>
struct Arrangement_visitor: public Kinetic::Sort_visitor_base
{
Arrangement_visitor(Arrangement *a):p_(a){}
template <class Vertex_handle>
void remove_vertex(Vertex_handle a) {
p_->erase(a);
}
template <class Vertex_handle>
void create_vertex(Vertex_handle a) {
p_->insert(a);
}
template <class Vertex_handle>
void after_swap(Vertex_handle a, Vertex_handle b) {
p_->swap(a, b);
}
Arrangement *p_;
};
Now we define the actual kinetic data structure.
template <class TraitsT>
class Planar_arrangement:
public Kinetic::Sort<TraitsT,
Arrangement_visitor<Planar_arrangement<TraitsT> > > {
typedef TraitsT Traits;
typedef Planar_arrangement<TraitsT> This;
typedef typename Kinetic::Sort<TraitsT,
Arrangement_visitor<This> > Sort;
typedef Arrangement_visitor<This> Visitor;
typedef typename Traits::Active_objects_table::Key Key;
public:
typedef CGAL::Exact_predicates_inexact_constructions_kernel::Point_2 Approximate_point;
typedef std::pair<int,int> Edge;
typedef typename Sort::Vertex_handle Vertex_handle;
// Register this KDS with the MovingObjectTable and the Simulator
Planar_arrangement(Traits tr): Sort(tr, Visitor(this)) {}
Approximate_point vertex(int i) const
{
return approx_coords_[i];
}
size_t vertices_size() const
{
return approx_coords_.size();
}
typedef std::vector<Edge >::const_iterator Edges_iterator;
Edges_iterator edges_begin() const
{
return edges_.begin();
}
Edges_iterator edges_end() const
{
return edges_.end();
}
void insert(Vertex_handle k) {
last_points_[*k]=new_point(*k);
}
void swap(Vertex_handle a, Vertex_handle b) {
int swap_point= new_point(*a);
edges_.push_back(Edge(swap_point, last_points_[*a]));
edges_.push_back(Edge(swap_point, last_points_[*b]));
last_points_[*a]= swap_point;
last_points_[*b]= swap_point;
}
void erase(Vertex_handle a) {
edges_.push_back(Edge(last_points_[*a], new_point(*a)));
}
int new_point(typename Traits::Active_objects_table::Key k) {
double tv= CGAL::to_double(Sort::traits().simulator_handle()->current_time());
double dv= CGAL::to_double(Sort::traits().active_objects_table_handle()->at(k).x()(tv));
approx_coords_.push_back(Approximate_point(tv, dv));
return approx_coords_.size()-1;
}
std::vector<Approximate_point > approx_coords_;
std::map<Key, int> last_points_;
std::vector<Edge> edges_;
};
