Ray Tracing

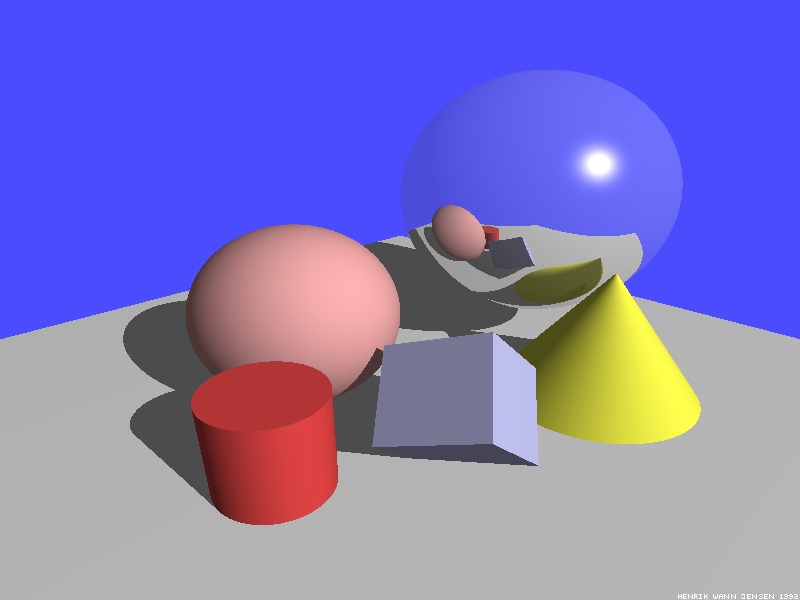

Ray tracing is probably the best known technique for rendering photorealistic images. Ray tracing is particularly good at simulating sharp shadows, mirrors and glass while other effects such as caustics and colour bleeding are neglected. An advantage of ray tracing based rendering approaches compared to radiosity is that they handle procedural models and complex objects that do not need tessellation.

See the Cornell box images for a comparison between ray tracing and global illumination. See my book to find out how to add global illumination and caustics to a ray tracer :)

The Sphereflake

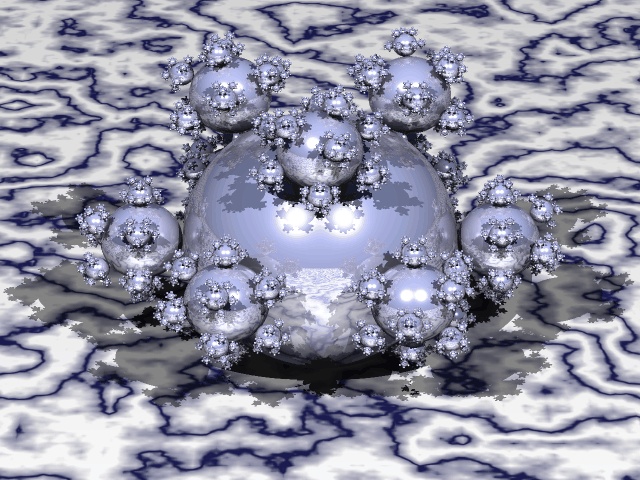

The sphereflake was introduced (I believe) by Eric Haines in his database SPD for testing the speed of ray tracing software. This particular sphereflake is one my early ray traced images (1992). It is a procedural (fractal object). Here approximated using 500.000 spheres. Even though it is old I still like it :)

A Fractal Egg

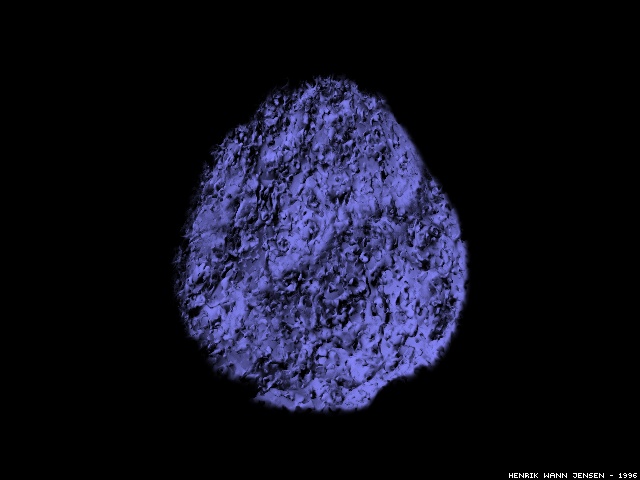

This fractal egg is an example of a hypertexture as introduced by Perlin and Hoffert in 1989. The egg is a simple implicit surface defining a density in world space. By subtracting a turbulence function from this density we get a fractal egg.

A Fireball

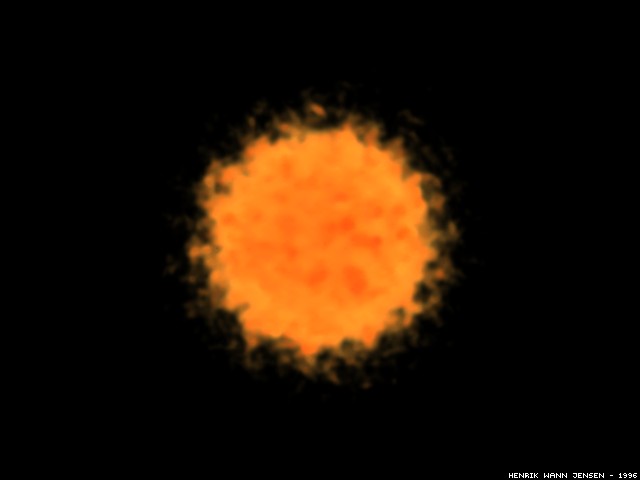

The fireball is another example of a hypertexture. Here the implicitly defined sphere specifies density as well as emission. Both of these are changed using a modified turbulence function.

Sweeping a sphere through space

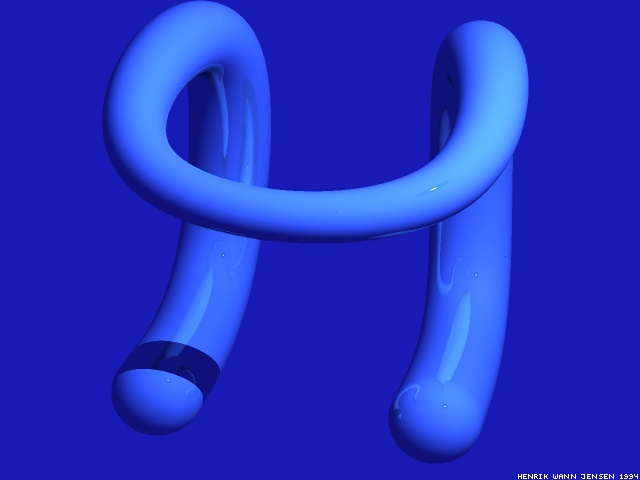

This model was created by sweeping a sphere through space along the trajectory of a spline. 8 spheres with different radi placed at the corners of a cube were used to construct the spline curve.

Sweeping a sphere through space

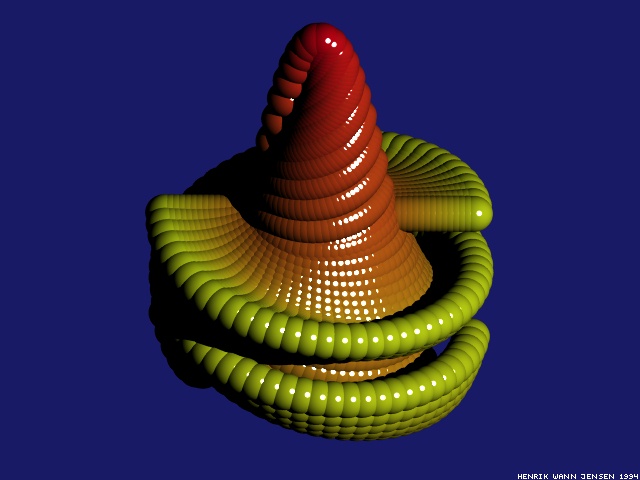

One of my first ray tracing images (1990-1991). Rendered first time on an Amiga in HAM mode (the good old days).

A glossy Steinbach Screw

The Steinbach Screw reflected into a glossy mirror.

Another Steinbach Screw

The Steinbach Screw is a mathematical function sampled using coloured spheres.

A Tetraoid

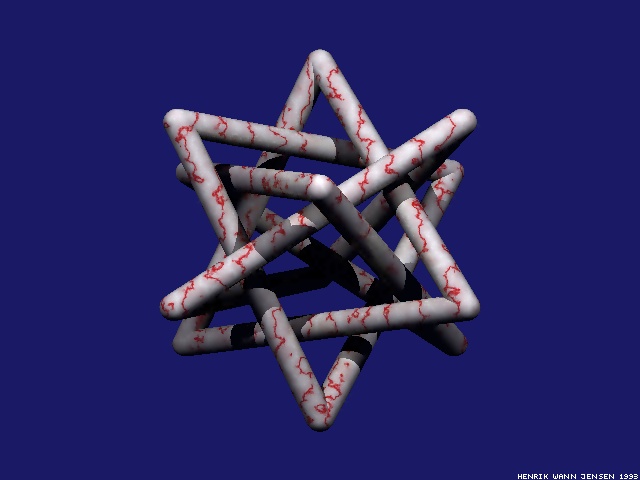

The Tetraoid.

The ancient village of Lejre

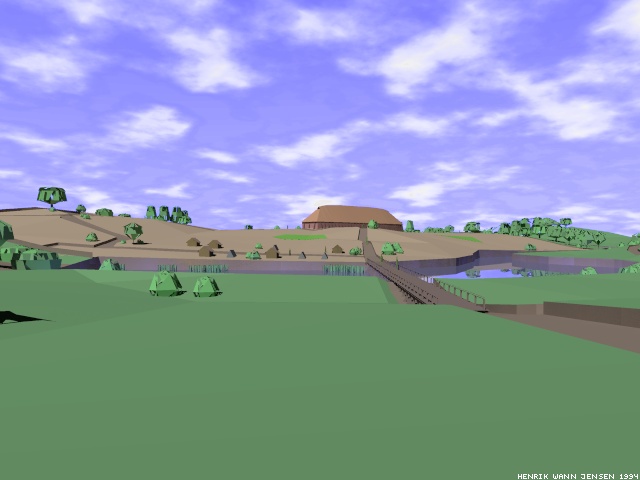

This is a model of lejre (an ancient Danish viking village) created in AutoCAD by Flemming Vestergaard and Hans Peter Nielsen. The model is made of 29000 triangles. Each tree is made of 10 triangles which of course significantly limits the obtained realism.
